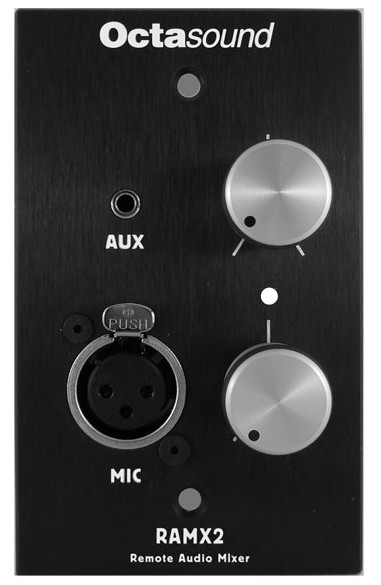

Octasound RAMX2
Dual Channel Remote Mixer

OUR PART #:  RAMX2

The Octasound RAMX2 is an easy to operate 2 channel mixer for any sound system. Simply plug in a Microphone, MP3 Player, Laptop, Ipod or CD player, and turn up the volume.
Learn More
Our Price: $308.00
List Price: $440.00
You save 30%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Octasound RAMX2
Qty:
In Stock

Similar Products

The Octasound RAMX2 is an easy to operate 2 channel mixer for any sound system. Simply plug in a Microphone, MP3 Player, Laptop, Ipod or CD player, and turn up the volume. The Octasound RAMX2 can be placed anywhere in a facility in a standard single gang electrical box. It's unique daisy chain ability allows multiple units to be wired together with only one home run. The RAMX2 can be installed using CAT5 or Shielded based cable with no external adapters required. It's compatible with all previous versions. Built tought for years of service. Older KDM models have lasted 20 plus years in the field. Easy to operate, easy to install.

Constant level output now provides a means to supply the source signal (CD, MP3, IPOD, COMPUTER, MICROPHONE) to a separate Zone or Hearing assist system. If the RAMX2 volume is adjusted it will not affect the Hearing assist system or vary the volume in another part of the building where the source signal is required.

Octasound RAMX2 Features:

  • Easy to operate 2 channel mixer
  • Ultra low noise, Interference Resistant, SMT-based design
  • Proprietary Mic Impedance Acceptance Technology
  • Voice ?lters to enhance speech intelligibility
  • Installs in a standard outlet or electrical switchbox
  • Sealed pots and highest quality components throughout
  • Daisy chain up to 3 units for 6 channels
  • Front Power indicator LED
  • CAT 5 or shielded audio cable based installation
  • Easy to install - strip and insert into the provided plug connectors
  • Double anodized markings will not fade or wear off
  • Compatible with previous versions (MX120A)

Octasound RAMX2 Specifications:

  • Gain: 50 dB ± 1 dB
  • Response: ± 1 dB 200 Hz to 3 kHz (Voice EnhanceInternal Equalizer Response)
  • Noise:
    • Greater than 70 dB S/N (Volume control at maximum position)
    • Greater than 75 dB S/N (Volume control at 12:00 o’clock)
  • Distortion: Less than 0.3% at 1.0 volt output
  • Input Impedance: Greater than 2 k ohms for low Zmics, (50 Ohm to 600 Ohm)
  • Auxilliary Input
    • Gain: 17 dB (150 mv to 1.0 v)
    • Response: ± 1 dB 40 Hz to 15 kHz
    • Noise: Greater than 75 dB S/N
    • Distortion: Less than 0.3% at 1.0 volt output.
  • General
    • Input Impedance: Greater than 10k ohm
    • Output Impedance: Designed to operate into 600 ohm balanced or unbalanced.
    • Temperature Range: -20 °C to 55 °C
    • Power Required: Local power via AC/DC adapter (KDM PS12) 12 Vdc / 30 ma.
