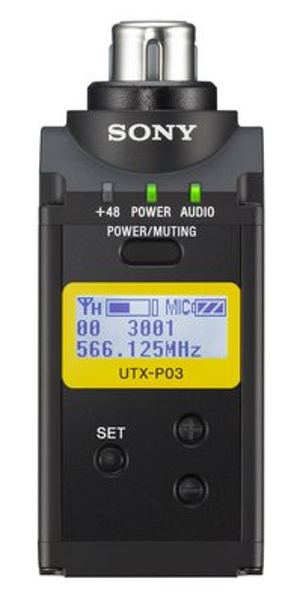

Sony UTX-P03/14
Plug-On Wireless Transmitter in Channel 14

OUR PART #:  UTX-P03/14

The Sony UTX-P03 plug-on transmitter is designed to be used with Sony UWP-D series wireless tuners.
Learn More
Our Price: $328.40
List Price: $514.99
You save 36%!
Write the first review.
Sony UTX-P03/14
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Sony UTX-P03 plug-on transmitter is designed to be used with Sony UWP-D series wireless tuners. It's extremely durable and is well balanced for use with the Sony F-112 – a dynamic microphone suited to cost-effective newsgathering applications. The UTX-P03 plug-on transmitter also accepts line-level audio input signal as well. Whether used in a low-cost ENG or EFP system, the UTX-P03 delivers the convenience of wireless microphone operation including phantom powering at a very affordable price.


Sony UTX-P03 Features:

  • Converts a wired microphone to a wireless microphone via an XLR connection
  • Operates over a wide 72 MHz frequency band within the range of 470 MHz to 542 MHz
  • 50 mW or 5 mW RF power output
  • MIC/LINE input level menu selectable
  • Approximately 6 hours of continuous operation with two AA-size batteries
  • Menu selection for +48 Phantom Powering
  • A backlit LCD provides extensive information, including the operating channel number and frequency in MHz, attenuator level, audio-input status, RF-output status, transmitter-battery status, and accumulated operating time

Sony UTX-P03 Specifications:

  • General Specifications:
    • Power Requirements: DC 3.0 V (two AA-size batteries)
    • Battery Life: Approx. 6hours with Sony AA-size batteries at 77°F (25°C)
    • Dimensions: 1 5/8" x 1 5/8" x 4"
    • Weight: 7 oz. (including batteries)
    • Compatibility: For use with UWP-D, UWP and WL-800 Series wireless products operating on the same frequencies
  • Plug On Transmitter Specifications:
    • Oscillator: Crystal-controlled PLL synthesizer
    • Type Of Emission: 110KF3E
    • Carrier Frequencies: 470 MHz to 542 MHz (TV channels14 to 25)
    • RF Power Output: 50 mW or 5 mW
    • Pilot Tone Signal: 32 kHz, 32.382 kHz, 32.768 kHz
    • Audio Input Level: MIC input position: -60 dBV (at 0dB attenuator level), LINE input position: +4 dBu
    • Audio Input Connector: XLR-3, female
