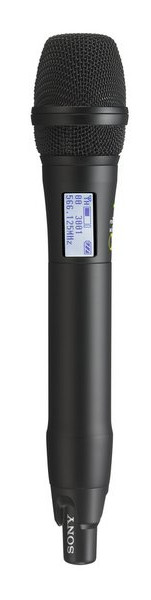

Sony UTX-M03/30 Handheld Wirelwess Microphone Transmitter in Channel 30

The Sony UWP-D series handheld microphone contains a uni-directional microphone capsule. The UTX-M03/42 operates on UHF TV channels 42 - 51. This handheld microphone is ideally suited for A/V presentation applications.

Features

• Internal antenna design
• Attenuator function allows adjustment of the audio input level to suit each user's voice
• Selectable RF output level: 5 mW (suitable for simultaneous multichannel operation) or 30 mW (for long distance transmission)
• 8 hours of continuous operation with two AA-size alkaline batteries
• LCD screen provides extensive set up information

Specifications

• General Specifications:
  • Capsule Type: Dynamic
  • Frequency Response: 70 Hz to 18 kHz
  • Power Requirements: DC 3 V
  • Battery Life: 8 hours with Sony AA-size alkaline batteries
  • Dimensions: 1 7/8" x 10 3/16"
  • Weight: 10 1/2 oz. including batteries
  • Compatibility: For use with UWP-D, UWP and WL-800 Series wireless products operating on the same frequencies
• Handheld Microphone Specifications:
  • Oscillator: Crystal-controlled PLL synthesizer
  • Type of Emission: 110KF3E
  • Carrier Frequencies: 638 MHz - 698 MHz (TV channels 42 - 51)
  • RF Power Output: 30 mW / 5 mW
  • Pilot Tone Signal: 32 kHz, 32.382 kHz and 32.768 kHz
