Sony UTX-B03/30
UWP-D Series Bodypack Transmitter with Omni Lavalier Mic in Channel 30

OUR PART #:  UTX-B03/30

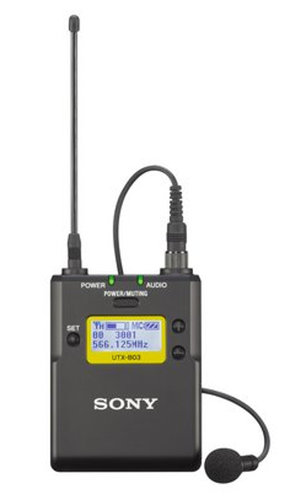

The UWP-D series compact and lightweight bodypack transmitter comes supplied with an omni-directional lavalier microphone.
Learn More
Our Price: $328.40
List Price: $514.99
You save 36%!
Write the first review.
Sony UTX-B03/30
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The UWP-D series compact and lightweight bodypack transmitter comes supplied with an omni-directional lavalier microphone. The UTX-B03/30 operates on UHF TV channels 30 - 36 and 38 - 41. This bodypack transmitter (with omni lav mic) is ideally suited for news gathering, interviews, talk shows and conferences.





Sony UTX-B03 Features:

  • Compact and lightweight design
  • Attenuator function allows adjustment of the audio-input level
  • Selectable RF output level: 5 mW (suitable for simultaneous multi channel operation) or 30 mW (for long distance transmission)
  • 8 hours of continuous operation with two AA-size alkaline batteries
  • LCD screen provides extensive set up information
  • 3-pole mini-jack input connector with lock mechanism accepts the output of supplied lavalier microphone

Sony UTX-B03 Specifications:

  • Bodypack Transmitter Specifications:
    • Oscillator: Crystal-controlled PLL synthesizer
    • Type Of Emission: 110KF3E
    • Carrier Frequencies: 566 MHz - 608 MHz and 614 MHz - 638 MHz (TV channels 30 - 36 and 38 - 41)
    • RF Power Output: 30 mW / 5 mW
    • Pilot Tone SignalL: 32 kHz, 32.382 kHz and 32.768 kHz
    • Audio Input Level: MIC: -60dBV (at 0dB attenuation level); LINE: +4dBu
    • Audio Input Connector: 3-pole mini jack
  • General Specifications:
    • Power Requirements:
      • DC 3V with two AA batteries
      • DC 5V via USB micro-B
    • Battery Life: 8 hours with Sony AA-size alkaline batteries
    • Dimensions: 2 1/2" x 3 1/4" x 13/16"
    • Weight: 5 1/4 oz. including batteries
    • Compatibility: For use with UWP-D, UWP and WL-800 Series wireless products operating on the same frequencies

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
