Sony UTX-B03/14
UWP-D Series Bodypack Transmitter with Omni Lavalier Mic in Channel 14

OUR PART #  UTX-B03/14

Our Price: $328.39
List Price: $514.99
You save 36%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

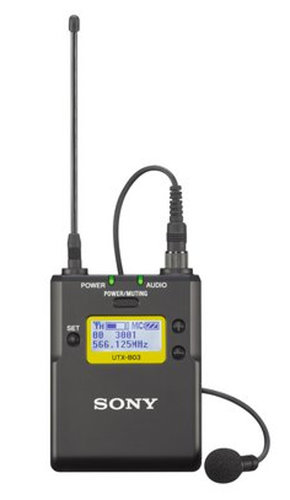

The UWP-D series compact and lightweight bodypack transmitter comes supplied with an omni-directional lavalier microphone. The UTX-B03/14 operates on UHF TV channels 14 - 25. This bodypack transmitter (with omni lav mic) is ideally suited for news gathering, interviews, talk shows and conferences.

Sony UTX-B03 Features:

  • Compact and lightweight design
  • Attenuator function allows adjustment of the audio-input level
  • Selectable RF output level: 5 mW (suitable for simultaneous multichannel operation) or 30 mW (for long distance transmission)
  • 8 hours of continuous operation with two AA-size alkaline batteries
  • LCD screen provides extensive set up information
  • 3-pole mini-jack input connector with lock mechanism accepts the output of supplied lavalier microphone

Sony UTX-B03 Specifications:

  • Bodypack Transmitter Specifications
    • Oscillator: Crystal-controlled PLL synthesizer
    • Type Of Emission: 110KF3E
    • Carrier Frequencies: 470 MHz - 542 MHz (TV channels 14 - 25)
    • RF Power Output: 30 mW / 5 mW
    • Pilot Tone SignalL: 32 kHz, 32.382 kHz and 32.768 kHz
    • Audio Input Level: MIC: -60dBV (at 0dB attenuation level); LINE: +4dBu
    • Audio Input Connector: 3-pole mini jack
  • General Specifications
    • Power Requirements:
    • DC 3V with two AA batteries
    • DC 5V via USB micro-B
    • Battery Life: 8 hours with Sony AA-size alkaline batteries
    • Dimensions: 2 1/2" x 3 1/4" x 13/16"
    • Weight: 5 1/4 oz. including batteries
    • Compatibility: For use with UWP-D, UWP and WL-800 Series wireless products operating on the same frequencies
