Sony UWP-D16/30
Portable Wireless Bodypack and Plug-on System in Channel 30

OUR PART #  UWP-D16/30

Our Price: $799.99
List Price: $1,029.99
You save 22%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The UWPD16/14 is a portable wireless bodypack and plug-on transmitter system with a lavalier mic.

UWP-D Series UHF synthesized wireless microphone system. Package includes a lavalier microphone, bodypack transmitter, plug-on transmitter and a portable tuner. Mounting adapter for camcorder included. UHF-TV Channels 30 to 36 and 38 to 41. The UWP-D16 includes extremely robust metal construction, mic/line input selection on the bodypack and plug-on transmitters, a miniature metal body omni-directional lav microphone, plus the receiver includes a convenient auto channel scanning function allowing automatic search for unoccupied channels.

PLL Synthesized System: Achieves stable transmission and reception by using a UHF PLL (Phase Locked Loop) frequency synthesized system, which provides accurate carrier signal frequencies. This system is used in both the transmitters and tuners, so that a stable carrier is generated at the transmitter, and accurately tuned in at the tuner. This PLL-controlled system provides highly stable, user-selectable frequencies in increments of 125 kHz.

Space Diversity Reception System: Typically, wireless microphone transmission systems can be subject to reception interruptions (signal dropout), but UWP-D series tuners reduce this to a minimum. By utilizing a space-diversity reception system, it achieves stable reception by using dual-antenna inputs/reception circuits. These receive signals over two different paths and automatically select the stronger RF signal for output.

Tone Squelch Circuitry: To avoid picking up carrier signals transmitted from other systems, the transmitter transmits a pilot-tone signal along with the audio signal. The tuner's squelch circuit recognizes this tone signal, and outputs the audio signal only when this tone signal is received. This function prevents the output of unwanted signals and noise from other signal transmissions in the air, as well as the RF noise and popping noise that occur when the transmitter is powered on or off.

Simultaneous Multi-Channel Operation: Optimum combinations of practically tested, interference-free frequencies are stored in the tuner. By using the pre-programmed frequency groups, users can easily choose interference-free frequencies for the transmitters and tuners, simplifying the task of system setup.

Sony UWP-D16/30 Features:

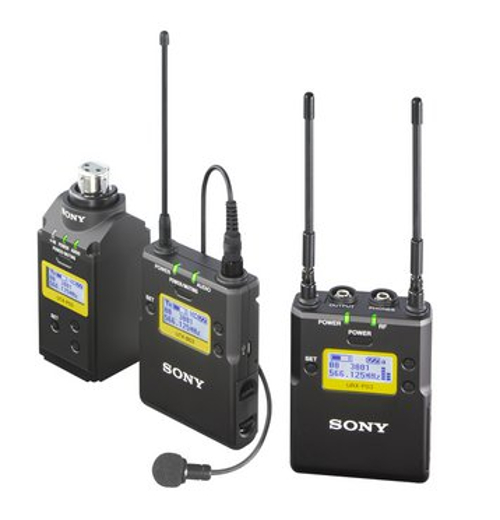

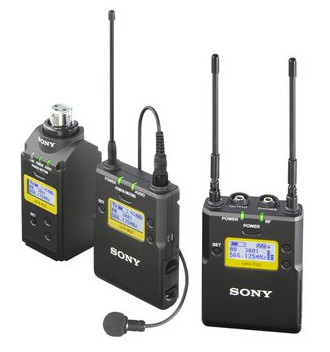

  • Consists of a omni lavalier microphone, bodypacktransmitter, plug-on transmitter and portable tuner
  • Suitable for a wide range of applications, from newsgathering and interviews to talk shows and conferences
  • The bodypack transmitter is supplied with a belt clip
  • The lavalier microphone is supplied with a windscreenand mic holder clip
  • The plug-on transmitter can be used to convert an XLRtype wired microphone into a wireless microphone
  • The tuner is supplied with a shoe-mount adaptor (for camcorder mounting)and 2 cables (3-pole mini-plug/XLR and 3-pole mini-plug/stereo mini-plug)

Sony UWP-D16/30 Specifications:

  • Frequency Range: 566 MHz - 608 MHz and 614 MHz - 638 MHz (UHF-TV channels 30 - 36 and 38 - 41)
  • Occupied RF Bandwidth: 66 MHz
  • Compatibility: For use with UWP-D, UWP and WL-800 Series wireless products operating on the same frequencies
