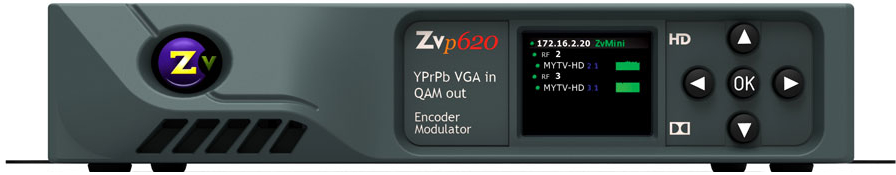

ZeeVee ZvPRO 620
2 Channel Component VGA In - QAM Out Encoder/Modulator

OUR PART #  ZVPRO620-NA

Our Price: $2,085.00
In Stock

Based on the same architecture as their big brothers (ZeeVee's HDbridge 2000 Series encoder/modulators), ZvPro models pack powerful features into a small space. At just 1RU high and shelf or rack mountable, it takes just one ZvPro to create a digital TV channel and broadcast it throughout your entire facility. Giving you smarter, smaller HD Video Distribution over Coax!

ZeeVee encoder/modulators convert video sources such as signage players and satellite receivers into digital cable channels that are broadcast over existing coaxial cabling to an unlimited number of HDTV’s. ZvPro’s broadcast technology eliminates the need for special equipment (including transmit/receive devices). It’s the easiest, most reliable way to distribute a few channels of HD video to multiple HDTV’s.

Typical Uses for the ZvPro 620:

  • Distribute HD video throughout your facility
  • Replace multiple signage players
  • Commercial or residential?
  • Use existing coaxial cabling
  • Compatible with any HDTV

NOTE: *International models are compatible with various broadcast standards.

ZeeVee ZvPro 620 Features:

  • Shelf or rack mount - via integral flanges oroptional mounting kit
  • Front-Panel Color LCD for Configuration and Status
  • Web-based Management - local or remote setup andmonitoring
  • Component/VGA input - two choices, from a full sized DIN connector:
      -  Hydra cables with 7 inputs (component HD video,analog and digital audio) for clean wiring, easy diagnostics and maximumflexibility
      -  VGAwith analog audio input
  • MPEG2 Video and AC3 Audio Encoding
  • Delay-matched Analog Audio Output
  • Integrated Closed Caption support – required for ADAcompliance in many applications
  • ZeeVee's best video quality yet! 1080p/i, 720p,480p/i
  • Single and dual channel versions in a smaller,fan-cooled package
  • High power output - up to 45dBmV
  • Strong retention force power connector
  • Two year warranty
  • Proudly designed in Massachusetts and Built in the USA

ZeeVee ZvPro 620 Specifications:

Video Input

  • YPrPb or RGB Video (2 ports per model): DIN connector HDbridge end, RCA connectors for HD source
  • Computer VGA (Analog): HD-15 connector, 75 Ohm RGB 0to 0.7V, Separate H and V sync
  • VGA Resolutions Supported: 640x480, 720x480, 800x600,1024x768, 1152x864, 1176x664, 1280x720, 1280x768, 1280x800, 1280x960,1280x1024, 1360x768, 1440x900 at 60 70, 72, 75, 85 Hz. 1680x1050 and 1920x1080at 60 Hz. VGA resolutions are broadcast centered in the best vertical fit into1920x1080p30 or 1280x720p60.
  • Closed Caption: EIA/CEA-608 captions accepted over composite video input

Audio Input

  • Analog Audio Input: 75 Ohm 0 to 0.7v at Line-levelinput, RCA R/W Connectors on DIN->RCA Cable, Combined 3.5mm stero connector on DIN-> VGA cable
  • Digital Audio: Digital S/PDIF on DIN->RCACable  (N/A on DIN->VGA cable)
  • Encoding: Internally encoded into Dolby® Digital AC-3 or MPEG1 Layer 2 (varies by region)

Video Encoder

  • Encoder Video Profile: MPEG2 HD Profile 2: ISO13818-2MP @ HL
  • Traffic Shaping: Variable Bit Rate
  • Video Transport Bit Rate: 49.76 Mbps
  • Video Encoding Data Rates: Variable, 10 Mbs - 24 Mbsper channel
  • Average Encoding Data Rate: 18 Mbs per channel
  • Encoding Latency: Programmable 100 msec to 400 msec
  • Color Profile: 4:2:0
  • GOP Size: 24
  • Video, Audio PID: Programmable
  • Program Information: Programmable

Audio Encoder

  • Encoder Audio Profile: ATSC A/52, Dolby(r) Digital (AC-3) or Mpeg 2 layer1 (varies by region)

Modulator/Upconverter

  • Modulation Types: QAM 256 (ITU-T J83 Annex B) Interleaving modes: (64,2) only OR DVB-C, QAM 256 (ITU-T J83 Annex A) (varies by region)
  • Cable Standard: HRC, IRC or STD or User defined (varies by region)
  • Frequency Range:
      -  Frequency Agile from 54 to864MHz
      -  2 kHz resolution
      -  +/- 30 ppmaccuracy
      -  +/- 35 ppm stability
  • Output Power: +45 dBmV typical
  • Output Level Adjust: 25 - 45 dBmV in 1dBmV steps
  • MER: 38 dB typical
  • I/Q Amplitude Imbalance: < 1% typical
  • Spectral Tilt: <= 1dB over 6MHz typical

Control/Setup

  • Network interface:
      -  10/100 mb Ethernet via RJ45connection
      -  IP address via DHCP or set by user
     -  HTML/Javascript served web interface for easy configuration
      -  Telnet connection for CLI scripting
      -  Easy firmwareupdates
      -  All settings saved in NV storage
  • Front Panel Color Display: Quickly obtain status at a glance

General

  • Power: 100-240VAC 50/60Hz, 36W max rated.  18W Typical consumption.  IEC 60320-C14
  • Cooling: Internal cooling fan, Front Inlet, Rear Exhaust
  • Mounting: Shelf mount flange or rack ears (orderedseparately) 1RU high
  • Enclosure Type: Metal
  • Enclosure Dimensions: 8" x 10" x 1.75" = 20.32cm x25.4cm x 4.445cm
  • System Weight: 3.1 lb  (1.4 kg)
  • Carton Dimensions (individual): 2.75" H 14" W 12" D =6.985cm x 35.56cm x 30.48cm / 108 mm H 785 mm W 308 mm D
  • Shipping Weight: 5 lbs (2.3 kg)
  • Temperature/Humidity: Operating +32F to +113F (0C to+45C) / 10% to 80%, non-condensing
  • Vibration: NSTA 1A in carton
  • MTBF: 45,000 hours
  • Compliance: FCC Class A, IEC60065, EN61000 (seemanual for specifics), CE, RoHS
  • Part number: ZvPro 620-NA
  • Model name: ZvPro 620
