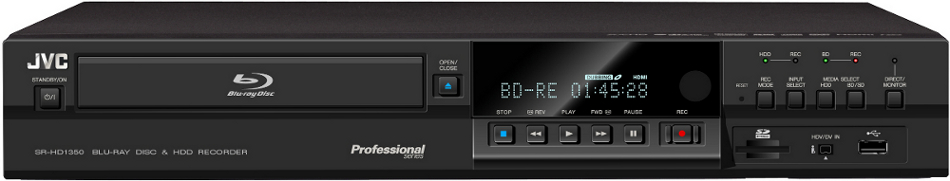

Product Overview
The JVC SR-HD1350US combo deck from JVC provides an economical way for users to create standard Blu-Ray™ high-definition discs or standard DVDs directly from a live video input or from video files stored on its built-in HDD. Live input is provided through the unit's A/V connectors (SD) or the IEEE-1394 interface (SD/HD) and can be recorded directly to Blu-ray or DVD, or to the internal 320GB hard disk drive for later authoring and burning. Cameras providing USB 2.0 or SDHC/SDXC*² AVCHD memory files may also be used as input sources.
Multiple copies of Blu-ray™ or DVD discs are easily obtained with the built-in duplication functon.
JVC SR-HD1350US Includes:
- AC power cord
- Infrared remote control unit
- “AA” battery x 2
- Instruction book (paper, CD-ROM)
JVC SR-HD1350US Features:
- All-in-one professional Blu-ray™ Recorder
- Direct-to-disc recording from live signal with new record pause mode
- Direct recording to DVD possible in DVD-Video format
- Internal 320GB hard disk for editing, duplicating
- Dubbing speed up to 6x with BD-R discs
- Create professional BDMV or BDAV format discs—even from live sources
- Stores up to 24 hours of HD (AE mode using dual-layer 50GB disc)
- Supports BD-R or BD-RE (erasable) Blu-ray™ discs
- Authors discs with auto-start or repeat playback
- Supported Formats: VIDEO — MPEG2TS / MPEG2PS / H.264AVC
- Audio — Dolby Digital (2ch)/LPCM
- Digital and analog inputs for wide compatibility:
- USB —(connect to camcorder)
- SDHC or SDXC*² card — (AVCHD, ProHD camcorder)
- i.Link — (HDV, DV camcorder)
- Composite/S-Video A/V input —(Analog SD device, camcorder, etc.)
- Flexible monitoring via HDMI. Now outputs with or without HDCP encryption.*
- Component output (SD only)
- Disc duplication function
- NOTES on Features:
- *To output without HDCP, source material must not been crypted
- *² USB card reader must be used with SDXC memory cards
JVC SR-HD1350US Specifications:
- General
- Power requirement: AC 120V, 60Hz
- Power consumption: 36W (power on) , 0.5W (Stand-by and no FL display)
- Temperature
- Operating: 41°F to 95°F (5°C to 35°C)
- Storage: -4°F to 140°F (-20°C to 60°C)
- Operating position: Horizontal only
- Dimensions (WxHxD): 17.13"x 2.76" x 13.82" (435 x 70 x 351mm)
- Weight: 11.2 lbs (5.3 kg)
- Input and Output
- Video input/output: Composite video (VBS) 1.0 V p-p,75 ohm, BNC
- Audio input/output: 2Vrms, 10k ohm (pin jack)
- S-video input/output: Y: 1.0 V p-p, 75 ohm; C: 0.286Vp-p, 75 ohm
- Component video output: Y: 1.0 V p-p, 75 ohm; CB/CR,CB/PR Vp-p, 75 ohm, BNC
- HDMI output: 19pin type A, (Deep Color, x.v.Color,Ver. 1.3a)
- IEEE1394 input: 4-pin for DV,HDV in
- Optical digital audio output: LPCM, Bit stream, IEC60958
- USB terminal: USB 2.0
- SD memory card: SDXC *1 ,SDHC, SD
- Remote input: 3.5mm diameter jack
- Serial command: RS232C (D-sub 9pin) *5
- LAN: 10Base-T/100Base-TX, RJ-45 for remote & file transfer *5
- Recording Function
- HDD storage capacity: 500GB(SR-HD1700), 320GB(SR-HD1350)
- Video recording system: MPEG4 AVC/H.264, MPEG2 TS, MPEG2 PS
- Audio recording system: Dolby Digital, LPCM
- Direct recording from AUX to BD/DVD: HDV/DV(i-Link),S-Video/Video (L-1)
- Direct recording format: BDMV, BDMV, DVD-Video, DVD-VR
- Importable data format (to HDD): MOV *4*5, MXF *5, AVCHD, HDV, DV, BDMV, BDMV, DVD-Video, DVD-VR, Everio backup disc
- Continuous recording time: BDMV and BDAV: 24hours, HDD, DVD-video, and DVD-VR: 8 hours, *2
- Extended period of recording time: Up to disc full *3
- Recordable Media
- Blu-ray disc: BD-R(SL/DL), BD-RE(SL/DL)
- DVD: DVD-R (SL/DL), DVD-RW
- SD card (still): SDXC *1, SDHC, SD
- Playable Media
- Blu-ray disc: BD-video, BD-R (SL/DL), BD-RE (SL/DL)
- DVD: DVD-video, DVD-R (SL/DL), DVD-RW, DVD-RAM,DVD+R (SL/DL), DVD+RW
- CD: CD, CD-R, CD-RW
- SD card (AVCHD/still): SDXC *1, SDHC, SD
- NOTES on Specifications:
- *1 USB card reader only
- *2 In case of going over the following times, the file will be divided
- *3 There may be cases where the recording will stop less than 24 hours due to the limitation of BD rules
- *4 From GY-HM850/890, GY-HM600/650, and GY-HM150 series camcorder using HQ mode (35Mbps) and SP (25Mbps and 19Mbps)
- *5 SR-HD1700 only
