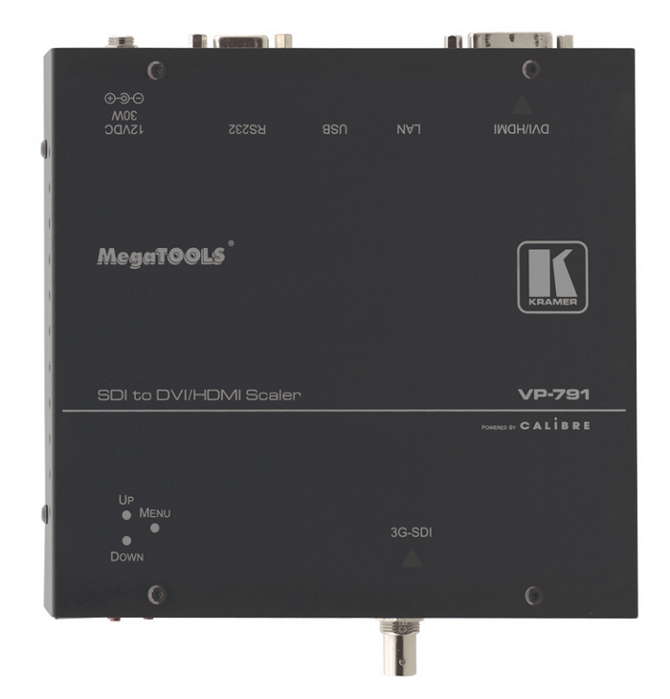

Kramer VP-791
3G HD-SDI to DVI/HDMI Digital HQV Scaler

OUR PART #:  VP791

Kramer's VP-791 is a high-performance digital scaler for 3G HD-SDI signals.
Learn More
Our Price: $1,436.00
List Price: $1,795.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VP-791
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Kramer's VP-791 is a high-performance digital scaler for 3G HD-SDI signals. It up- or down-scales the incoming signal, processes the image with HQV and flexible geometry correction and outputs the signal to a DVI/HDMI connector.

The VP-791 includes flexible geometry correction controls to allow for the correction of misshapen images and projector misalignment. These corrections can be made by dragging and dropping each image corner, by pin/barrel/rotation correction, or by keystone and rotation correction. The VP-791 also has a built-in portrait mode, which provides for the creation of a portrait format image from a landscape input that it automatically rotates by 90 or 270 degrees.

Kramer VP-791 Applications:

  • Professional AV
  • Broadcast
  • Corporate AV
  • Fixed installs
  • Live events

Kramer VP-791 Features:

  • HQV® Video Processing - HQV (Hollywood Quality Video) processing represents the state-of-the-art in video processing technology, with the highest quality de-interlacing (with 3:2 & 2:2 pull down), 4D motion adaptive SD noise reduction, and outstanding scaling performance for both standard-definition and high-definition signals.
  • HDTV Compatible.
  • Multi-Standard Operation - SDI (SMPTE 259M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M).
  • Supported Input Resolutions - HD: 720p23.97/24/25/30/50/59.94/60, 1080i50/59.94/60, 1080psf, 1080p23.97/24/25/30, 1080p30/50/59.94/60; SD: 625i (576i), 525i (480i).
  • HDMI Output Support - Deep color up to 12 bit.
  • Powerful Geometry Correction - For off-axis projection, pin/barrel and image rotation.
  • Portrait Mode Image Extraction - Rotation and zoom from landscape input.
  • Selectable Processing Versus Latency - Best Picture and low latency modes; Best Picture latency as low as 0.25-frame progressive inputs, 1.25-fields interlaced inputs.
  • Selectable I/O Lock Mode - Or frame rate conversion mode.
  • Flexible Colour Calibration Controls - RGB Gains, RGB Cut-Offs/Black Levels, Saturation, Hue, Brightness, Contrast controls, Gamma selection.
  • Active 3G HD-SDI Cable Equalization.
  • Built-in Test Pattern Generator.
  • Non-Voltatile Memory - Auto-saves and recalls settings.
  • USB Port - For upgrading firmware.
  • Programmable Customer Logo on Menu.
  • Flexible Control Options - Built-in Web server RS-232, TCP/IP API, keypad for direct input selection and OSD menu access.
  • Size - MegaTOOLS™

Kramer VP-791 Specifications:

  • Input: 1 SD/HD/3G HD-SDI for 4:2:2 signals up to 1080p on a BNC connector.
  • Output: 1 DVI/HDMI on a DVI connector.
  • Output Resolutions: Common VESA formats from 640x480 to 1920x1200, and HD formats at 720p, 1080p.
  • Latency: As low as 0.25-frame progressive inputs, 1.25-field interlaced inputs.
  • Signal Processing: 10-bit signal inputs, 12-bit accurate internal processing; 4-field full resolution SD & HD processing.
  • De-Interlacing: Motion adaptive per pixel video de-interlacing, multi-directional diagonal de-interlace filter.
  • Power Source: 12V DC, 1.5A approx.
  • Operating Temperature: 0° to +40°C (32° to 104°F).
  • Storage Temperature: -40° to +70°C (-40° to 158°F).
  • Humidity: 10% to 90%, RHL non-condensing.
  • Dimensions: 16.7cm x 15.8cm x 3.9cm (6.58" x 6.23" x 1.54") W, D, H (excluding connectors).
  • Weight: 0.5kg (1.1lb).
  • Accessories: 12V DC power supply, DVI-D cable, user manual/CD.
