Cables To Go 42514

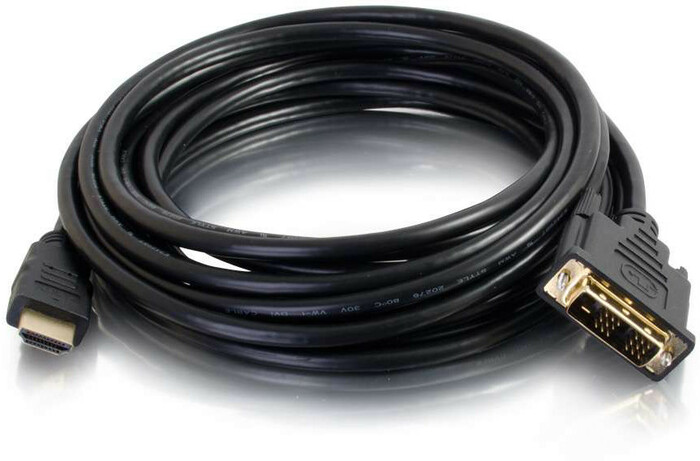

1M HDMI to DVI-D Digital Video Cable

OUR PART #:  42514

Our Price: $8.60
List Price: $11.99
You save 28%!
Write the first review.
Cables To Go 42514
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The C2G HDMI to DVI-D Digital Video Cable is perfect for source to display connectivity for desktop or home theater applications requiring connectivity between HDMI and DVI-D devices.  This cable connects an HDMI source device to a DVI-D display or a DVI-D source device to an HDMI display.  This fully-functional, high bandwidth cable is tested to perform at industry standards and is backed by a lifetime warranty.

Electrical Characteristics:

  • Nominal Velocity of Propagation - 10.2Gbps
  • DC Resistance - 300V
  • Dielectric Strength - AC 500V/minute
  • Insulation Resistance - 100
  • Nominal Attenuation - 1-825MHz - 8dB

Physical Characteristics:

  • Voltage Rating - 30V
  • Minimum Bend Radius - 60°
  • Temperature Rating - 80°C
  • Operating Temperature Range - -20° - 80°C
  • Storage Temperature Range - -25° - 85°C
  • Approvals - RoHS Compliant
  • Package Type - Polybag
  • Conductor 1 (4 pair):
    • Conductor Type - 30AWG (7/0.10), Tinned Copper
    • Insulation - Foamed PE SKIN, Red/White, Brown/White, Blue/White, Green/White, Black/White, O.D. - 0.78mm
    • Drain Wire - 30AWG (7/0.10), Tinned Copper
    • Shield - Aluminum Foil, 100% Coverage
  • Conductor 2 (1 pair):
    • Conductor Type - 30AWG (7/0.10), Tinned Copper
    • Insulation - HDPE, Yellow, Red, Green, Purple, O.D. - 0.55
  • Conductor 3 (3 conductors):
    • Conductor Type - 30AWG (7/0.10), Tinned Copper
    • Insulation - HDPE, Yellow, Red, Green, Purple, O.D. - 0.55
  • Overall Cable:
    • Drain Wire - 30AWG (07/0.10), Tinned Copper
    • Foil Shield - Aluminum Foil, 100% Coverage
    • Braided Shield - 16/4/0.12, Al/Mg
    • Jacket - PVC, Black, O.D. - 6.0 ± 0.2mm
  • Connectors:
    • Connector Type - HDMI - Type A,
    • Pin Construction - Phosphor Copper
    • Plating - 1µm Gold
    • Dimensions (HxWxL) - 10.0 x 20.1 x 37.1mm
  • Connectors:
    • Connector Type - DVI-D
    • Pin Construction - Phosphor Copper
    • Plating - 3µm Gold
    • Dimensions (HxWxL) - 16.0 x 39.4 x 46.7mm
