Orange DUAL-DARK-100 Dual Dark 100 100W 2-Ch Tube Guitar Amplifier Head

OUR PART #: DUAL-DARK-100

Copied to clipboard

The all-new Orange Dual Dark Series is a range of high-end dual channel amps. Put simply, these amps showcase Orange Amplification at their most innovative. ...Read more

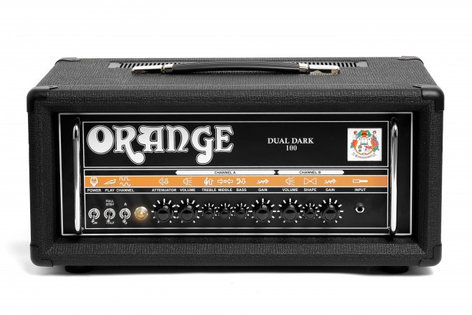

Orange DUAL-DARK-100 Dual Dark 100 100W 2-Ch Tube Guitar Amplifier Head Image 1
Orange DUAL-DARK-100 Dual Dark 100 100W 2-Ch Tube Guitar Amplifier Head
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The all-new Orange Dual Dark Series is a range of high-end dual channel amps. Put simply, these amps showcase Orange Amplification at their most innovative. The new amps build on the brand’s reputation for creating the ultimate British guitar tone. Bringing a new dimension of sound that delivers potent combinations of tone and the highest levels of gain the brand has ever offered.

The models have a completely new voicing for Channel A, different to anything else in the Orange Amp range yet still true to their heritage. Channel B is has the voicing of the Dark Terror tone. Both channels can go from clean through to crunch at lower gain levels and offer four stages of gain!

Launching at NAMM 2014 are the 50 Watt and 100 Watt versions, both feature footswitchable attenuators and Orange’s signature low impedance effects loop design. The Dual Dark 50 has an output that can be switched to 50 or 25 Watts. Output on the Dual Dark 100 can be switched to 100, 70, 50 or 30 Watts.

Both amps come with standard EL34s fitted but other tetrode valves can be used when biased correctly by a technician. The Dual Dark amps have been built with state of the art components backed by Orange’s ever evolving design and deliver the biggest amount of gain available in the history of their amps.

Orange Amplifiction Dual Dark 100 Features:

  • Twin Channel
  • Footswitchable Channel and Attenuator
  • Effects loop

Orange Amplifiction Dual Dark 100 Specifications:

  • Controls: Attenuator, Channel A: Volume, Treble,Middle, Bass, Gain, Channel B: Volume, Shape, Gain.
  • Output Power (Heads and Combos): 100 Watts
  • Power Handling (Cabinets): NA
  • Valves (Heads and Combos):
    • Preamp: 5 x Ecc83/12ax7
    • Effects Loop: 1 X Ecc81/12at7
    • Poweramp: 4 X EL34/6CA7
  • Speaker Output options (Heads):
    • 1 x 16 Ohm cabinet connected to the 16 Ohm output
    • 1 x 8 Ohm cabinet connected to one of the 8 Ohm outputs
    • 2 x 16 Ohm cabinets each connected to one of the 8 Ohm outputs
  • Speakers (Combos and Cabinets): NA
  • Impedance (Cabinets): NA
  • Extension Cabinet Options (Combos): NA
  • Unboxed Dimensions (HxWxD): 10.6" x 21.7" x 11.0" (27.0 x 55.0 x 28.0)
  • Unboxed Weight: 52 lb (24.0 Kg)
