AMX FG1905-16

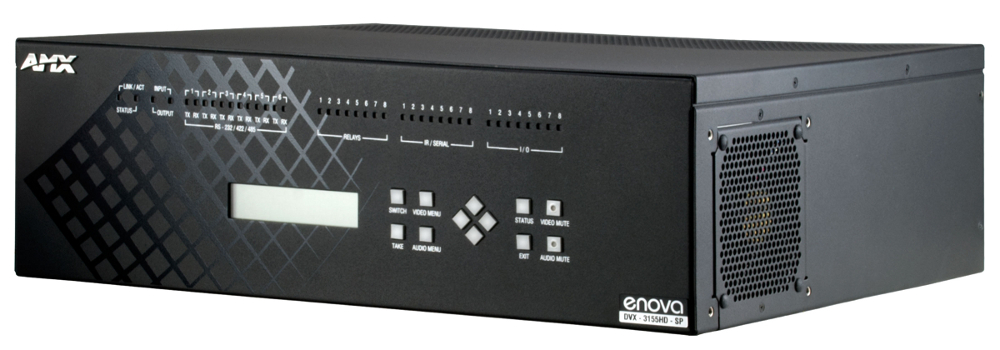

DVX-3155HD-SP 2x25W 8 Ohm 10x4 All-In-One Presentation Switcher

OUR PART #:  FG1905-16

The Enova® DVX-3155HD offered by AMX is an all-in-one controller, AV matrix switcher, scaler...
Learn More

Call for price! Not available online.
List Price: $12,800.00

Related Products

The Enova® DVX-3155HD offered by AMX is an all-in-one controller, AV matrix switcher, scaler, analog to digital signal converter, twisted pair transmitter and amplifier with built-in professional grade audio processing. Easily integrate HDCP into system designs and enjoy hassle free plug-and-play operation. No tools, no delays, and no key constraints – it just works with AMX's exclusive InstaGate Pro® Technology. Designed to simplify system design and provide a future proof solution, the DVX-3155HD's multi-format video inputs support analog and digital signals including HDMI with HDCP sources - all in the same connector. The state-of-the-art professional grade audio DSP delivers quality audio throughout a room. Built-in SmartScale® Technology outputs video that is perfectly scaled for each connected display, eliminating the integration challenges that can occur when sources and displays have different optimal resolutions - making the DVX-3155HD easy to specify, easy to install and easy to use.

Common Applications:

  • Ideal All-In-One Presentation Switcher designed to dramatically simplifyAV control and distribution in medium and large conference rooms, classroomsand auditoriums. The flexible DVX-3155HD is perfect for any room with a mix ofanalog and digital sources, multiple displays, or rooms that require supportfor video conferencing.

AMX DVX-3155HD Features:

  • All-In-One Presentation Switcher in a 3 RU Box –Controller, matrix switcher, scaler, analog to digital converter, amplifier,plus twisted pair distribution and professional-grade audio DSP
  • HDMI/HDCP Switching with Simplicity of Analog –End-to-end distribution of HDMI/HDCP without interruption or key constraintsusing InstaGate Pro Technology
  • Matrix Switching – Freely route any input to any orall outputs without blocking - 10x4 video switcher and 14x4 audio switcherwith audio breakaway
  • SmartScale Technology – Automatically responds to thedisplay's declared EDID information and scales the video to the bestresolution and video parameters for that display without manual setup; thisprevents inferior video quality when sources are forced to lower resolutionsto support the least capable display in the system
  • AV and Control Over Twisted Pair – Send and receiveaudio, video, bi-directional control and Ethernet up to 100m over one standardtwisted pair cable
  • Analog to Digital Video Conversion With ScaledOutputs – Converts any source signal to digital and uses SmartScale Technologyto automatically output video that is perfectly scaled for each connecteddisplay
  • Saves Energy – Includes features that dramaticallyreduce energy utilization. Use the interactive DVX Energy Savings Calculatorto estimate savings for your particular configuration
  • Game Changing Device – Standardizing on this box reduces Total Cost ofOwnership

AMX DVX-3155HD Additional Features:

  • All-In-One Presentation Switcher – Replaces the needfor numerous individual components and equipment, allowing installers to savetime and effort in configuring and programming
  • InstaGate Pro Technology – Easily integrate HDCP intosystem designs and enjoy hassle-free matrix switching to all compliantdisplays; no tools, no delays, and no key constraints – it just works
  • Multi-Format Ports – Built for analog signals -RGBHV, Component, S-Video, and Composite, and digital HDMI/HDCP and DVIsignals - all on the same connector
  • Built-in Professional Grade Audio DSP – Integrateddigital signal processor's advanced capabilities, like independent 10-bandparametric EQ, independent input gain adjustments and variable compression,allow precision tuning to match unique source and room attributes
  • 3D Support - Pass through latest video formatsincluding 3D and Deep Color
  • Surround Sound Support - Pass through high definitionsurround sound including DTS-HD and Dolby TrueHD
  • DXLink™ Twisted Pair Outputs - Send audio, video,bi-directional control and Ethernet to DXLink HDMI Receivers up to 100m awayover one twisted pair cable
  • DXLink Twisted Pair Inputs - Receive audio and videofrom DXLink HDMI and Multi-Format Transmitters and deliver bi-directionalcontrol, Ethernet and power up to 100m away over one twisted pair cable - formore details and helpful cabling information, reference the white paper titledCabling for Success with DXLink, or contact your AMX representative
  • Audio Breakaway - Stereo audio from any analog inputor de-embedded from any HDMI or DXLink input can be broken away from itsassociated video, processed through the DSP, and switched independently to anyanalog, HDMI or S/PDIF audio output
  • Audio Matrix Switching - Four independently switchedand processed audio paths provide four unique volume, EQ, ducking and mixingconfigurations for perfectly tuned room audio as well as integration withaudio/video conferencing, induction loop systems, voice re-enforcementspeakers and audio recording devices
  • Enhanced Microphone Processing - Independent 3-bandparametric EQ, compression, gating, auto-ducking, and limiting on eachmicrophone input ensures crystal clear communication
  • HDCP Compliant

AMX DVX-3155HD Specifications:

  • Please see the attached data sheet for specification information.
