Ashly nXE4002
2 Channel 400W Network Power Amplifier

OUR PART #:  NXE4002

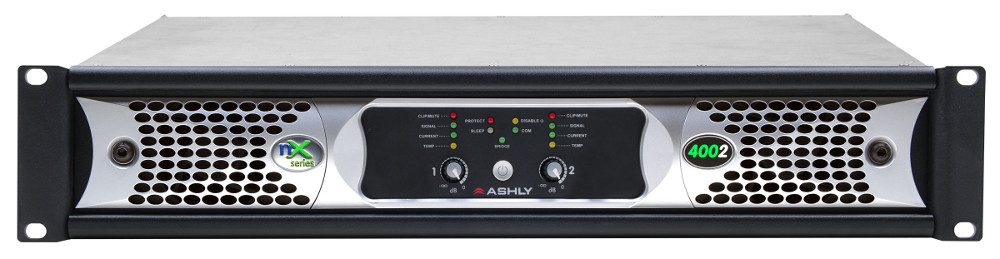

The Ashly nXE4002 is a 2-channel 400W network power amp.
Learn More
Our Price: $1,665.00
List Price: $2,080.00
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ashly nXE4002
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Ashly nXE4002 is a 2-channel 400W network power amp. nX Power Amplifiers feature lightweight, energy-efficient Class-D switching amplifier technology combined with a switch mode power supply.

Available in three product families, nX is designed to meet the most demanding live sound and fixed installation sound systems in stadiums, arenas, performance venues, worship spaces and convention centers.

nXe Series is the networkable version of the nX amplifier with the addition of Ethernet control, serial data control, aux preamp outputs, instant standby mode, preset recall, fault condition logic outputs, and optional network audio and digital audio capability.

Ashly nXE4002 Features:

  • 2-channel high-output, lightweight amplifiers with programmable output on each channel (High-Z or Low-Z, selected via rear panel DIP switches)
  • Power-saving, Energy Management System‡ (Ashly EMS™) automatic <1W sleep-mode (defeatable)
  • Front panel power switch and level controls (can be disabled for security)
  • Rear panel DIP switches per channel for selection of high pass filter, limiter, input gain, and High-Z or Low-Z speaker output configuration
  • Remote DC level control on each input channel
  • Switch mode power supply automatically detects 120Vor 240V AC operation
  • Extensive protection circuitry, continuously variable cooling fans
  • Multiple independent internal power supplies provide increased channel separation and reliability
  • Ethernet port for use with control and monitoring of amplifier functions, with front panel COM activity LED
  • Serial data port for use with Ashly remote control devices, or optional RS-232 converter for third party controllers (INA-1)
  • Use Protea™ Software to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation
  • Real-Time Clock with Event Scheduler
  • Instant Standby Mode, 30% reduction in power consumption with on/off triggered by contact closure, software control, or event scheduler
  • Programmable power-on delay
  • Preset recall via contact closure, software control, remote control, or event scheduler
  • Aux preamp outputs, and fault condition logic outputs
  • Optional Cobranet® or Dante® network audio and AES3 digital audio input with pass-through
  • Neutrik® Combo XLR – 1/4" TRS jack plus Euroblock input connectors
  • Neutrik® speakON® twist locking loudspeaker connectors for security, safety, and reliability
  • Neutrik® powerCON® detachable AC mains connector

NOTE: For more information, please see the spec sheet and manual found under the "Documentation" tab.
