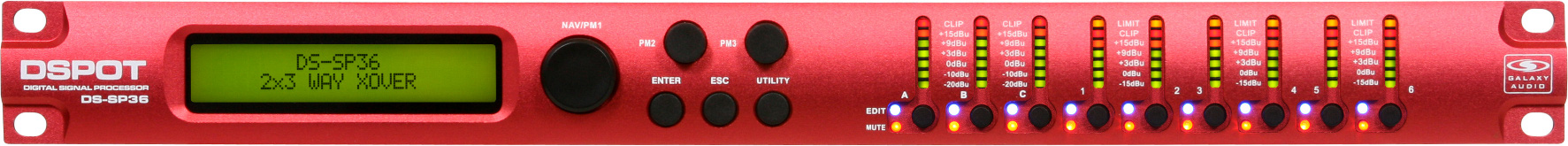

Galaxy Audio DS-SP36
DSPOT 3x6 Digital Signal Processor

OUR PART #:  DS-SP36

Galaxy Audio's DS-SP36 DSPOT Digital Signal Processor allows the user to manage and clarify the sound produced in their speaker system.
Learn More
Our Price: $599.99
List Price: $1,119.99
You save 46%!
Write the first review.
Galaxy Audio DS-SP36
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Galaxy Audio's DS-SP36 DSPOT Digital Signal Processor allows the user to manage and clarify the sound produced in their speaker system.  Compact and easy to use, the DSPOT series is loaded with features designed to optimize your loudspeaker system, all accessible via the software architecture or the front panel.  This makes them ideally suited for fixed and live applications.

Galaxy Audio DS-SP36 Features:

  • 3 input x 6 output Speaker Processor
  • 3 Analog Inputs, Stereo Digital Input, and 6 Analog Outputs
  • Each Input has 5 Parametric Bell, or Shelving Filters and each Output has 7 Parametric Bell, or Shelving Filters
  • High Pass and a Low Pass Filter up to 24dB/Oct. on each Output
  • RMS Limiter each Output
  • Input and Output delays up to 850ms, with steps of 22usec.
  • Control via Front Panel or External PC
  • External Control via USB as well as RS485
  • Balanced XLR Inputs and Outputs

Galaxy Audio DS-SP36 Specifications:

  • Analog Input Signal: ChA/ChB/Ch3 Bal. Female XLR
  • Maximum Input Level: +20dBu
  • Analog Output Signal: Ch1/Ch2/Ch3/Ch4/Ch5/Ch6 Bal.Male XLR
  • Maximum Output Level: +20dBu
  • Digital Processing (DSP): SAM3716, 24bits (data) x 96bits (coeff.)
  • A/D Converters: AKM5392, 24bits
  • D/A Converters: AKM4396, 24bits
  • Sampling Frequency: 48kHz
  • S/PDIF Stereo Digital Input: 32kHz, 44.1kHz and 48 kHz Sources Accepted
  • S/N: 110dBA
  • THD+N: 0.005%
  • Frequency Response (Bypass): 20Hz – 20kHz (+- 1 dB)
  • Power Supply: Switching Power Supply
  • Remote Control: USB, RS485
  • Dimensions: 9.25" D x 19" W x 1.75" H (234.95 x482.6 x 44.45 mm)
  • Weight: 6.3 lbs (2.86 kg)
