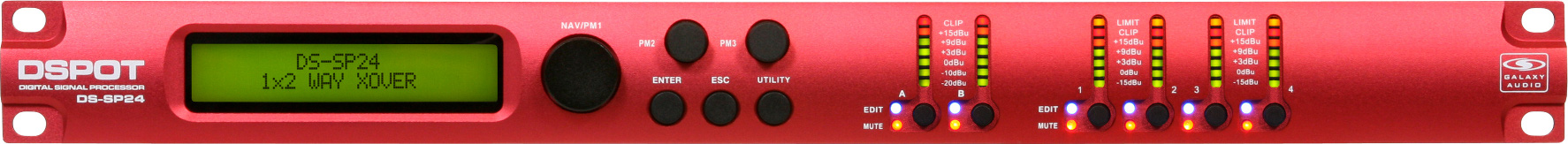

Galaxy Audio DS-SP24 DSPOT 2x4 Digital Signal Processor

Galaxy Audio's DS-SP24 DSPOT Digital Signal Processor allows the user to manage and clarify the sound produced in their speaker system. Compact and easy to use, the DSPOT series is loaded with features designed to optimize your loudspeaker system, all accessible via the software architecture or the front panel. This makes them ideally suited for fixed and live applications.

Galaxy Audio DS-SP24 Features:

• 2 Input x 4 Output Speaker Processor
• 2 Analog Inputs, Stereo Digital Input, and 4 Analog Outputs
• Each Input has 5 Parametric Bell, or Shelving Filters and each Output has 7 Parametric Bell, or Shelving Filters.
• High Pass and a Low Pass Filter up to 24dB/Oct. on each Output
• RMS Limiter each Output
• Input and Output delays up to 850ms, with steps of 22usec.
• Control via Front Panel or External PC
• External Control via USB as well as RS485
• Balanced XLR Inputs and Outputs

Galaxy Audio DS-SP24 Specifications:

• Analog Input Signal: ChA/ChB/Ch3 Bal. Female XLR
• Maximum Input Level: +20dBu
• Analog Output Signal: Ch1/Ch2/Ch3/Ch4/Ch5/Ch6 Bal. Male XLR
• Maximum Output Level: +20dBu
• Digital Processing (DSP): SAM3716, 24bits (data) x 96 bits (coeff.)
• A/D Converters: AKM5392, 24bits
• D/A Converters: AKM4396, 24bits
• Sampling Frequency: 48kHz
• S/PDIF Stereo Digital Input: 32kHz, 44.1kHz and 48kHz Sources Accepted
• S/N: 110dBA
• THD+N: 0.005%
• Frequency Response (Bypass): 20Hz – 20kHz (+- 1 dB)
• Power Supply: Switching Power Supply
• Remote Control: USB, RS485
• Dimensions: 9.25" D x 19" W x 1.75" H (234.95 x 482.6 x 44.45 mm)
• Weight: 6.3 lbs (2.86 kg)
