Datavideo Corporation HS-2800-8
8 Input HD/SD Mobile Studio for SDI, HDMI, & Composite Video

OUR PART #:  HS-2800-8

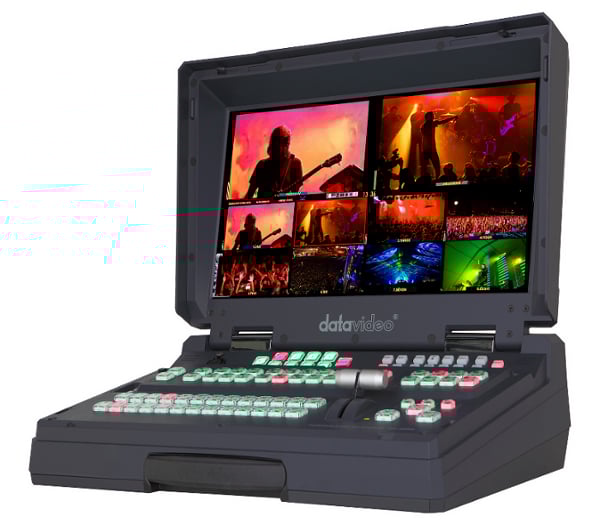

The Datavideo HS-2800 is a compact, lightweight SE-2800-based Mobile Studio.
Learn More

Call for price! Not available online.
List Price: $5,999.00

Similar Products

The Datavideo HS-2800 is a compact, lightweight SE-2800-based Mobile Studio. The HS-2800 utilizes the SE-2800 Switcher and includes an integrated 17? Monitor and the ITC-100 Intercom/Tally System. The ITC-100 comes with 4 belt packs, headsets, and tally lights — enough equipment for up to 4 camera operators. In addition, the HS-2800 can be controlled remotely by PC, through the local network, or over the internet using Datavideo’s Remote & Net Setup Software.

As an airline carry-on, the HS-2800 is permitted to be carried into the plane for trips. There’s no need to “check in” your mobile studio with other luggage, having to worry about it accidentally getting lost, not arriving on time, or damaged. Instead, you can have it in the cabin with you 100% of the time, from departure to arrival.

Datavideo HS-2800 Mobile Studio Features:

  • PAL or NTSC Compatible: HS-2800 accepts input from PAL or NTSC signals.
  • HD & SD Support: HS-2800 supports both High Definition and Standard Definition signals.
  • 8 Flexible Inputs: Flexible combinations of input sources may be used from HD/SD-SDI,HDMI, and CV.
  • Upgradable to 12 Inputs: HS-2800 may be upgraded with 4 more BNC input ports to support a total of 12 inputs.
  • HDMI Multi-View Preview Output: The MS-2800 Switcher has an HDMI-out port to see the multiview output on a larger monitor.
  • Audio Embedding: HS-2800 supports 4-channel audio level control and all-channel audio delay before audio embedding.

Datavideo HS-2800 Mobile Studio Specifications:

Switcher’s Connections:

  • Video Inputs:
    • 8x HD/SD-SDI or
    • 6x HD/SD-SDI + 2x HDMI or
    • 4x HD/SD-SDI + 4x CV or
    • 4x HD/SD-SDI + 2x CV + 2x HDMI or
    • 2x HD/SD-SDI + 4x CV + 2x HDMI
    • Upgradable with 4 additional BNC ports to support 12 total inputs
  • HDMI Color Space: YUV
  • Accepted Resolutions:
    • 1080i 50/60
    • 576i 50
    • 480i 59.94/60
  • Video Outputs:
    • 2x HDMI (Multi-Preview)
    • 3x HD/SD-SDI (Assignable to Program, Program without Logos, Program without Logos and Titles, Preview, or Auxiliary)
  • Audio:
    • Inputs: 2x Analog Balanced XLR (2x stereo pairs)
    • Outputs: 1x Analog Balanced XLR (1x stereo pair)
    • Supports Embedded Audio to HD/SD-SDI. HS-2800 supports 4-channel audio level control and all-channel audio delay before audio embedding.
  • Control: RS-422 Control

What’s in the Box:

    • SE-2800 Switcher
    • Integrated ITC-100 Intercom/Tally System with 4x Belt Packs, Headsets, and Tally Lights
    • Integrated 17? Monitor
    • Durable Plastic Casing
