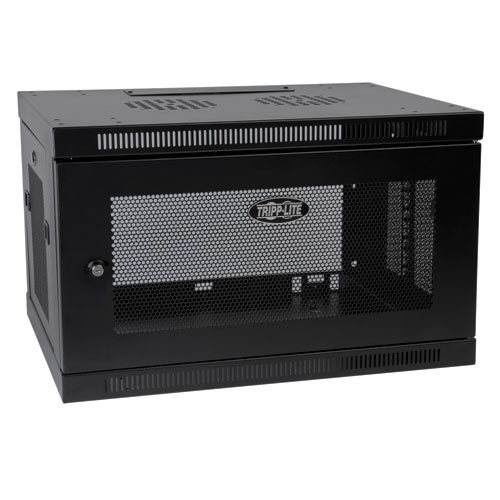

Tripp Lite SRW6U
6RU SmartRack Wallmount Rack

OUR PART #  SRW6U

Our Price: $210.00
List Price: $270.00
You save 22%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Tripp Lite’s SRW6U Wall Mount Rack Enclosure Cabinet is the ideal storage solution for standard rackmount equipment in applications with limited floor space such as wiring closets, POS stations and offices. Constructed with a sturdy wall mounting bracket and steel frame, it can accommodate up to 140 lbs. of equipment in 6U of rack space. Adjustable vertical mounting rails with square holes accommodate all standard 19-inch rack equipment.

The SRW6U features a perforated lockable front door and side panels, assuring generous airflow to keep equipment operating safely. The side panels are removable for easy access to equipment, and the front door is reversible. The top and bottom panels of the enclosure include convenient cable routing ports. The SRW6U ships fully assembled and comes with a 5-year manufacturer’s product warranty.

Tripp Lite SRW6U Applications:

  • IT network environments with limited floor space
  • VoIP closets
  • Classrooms where equipment needs to be secure and out of the way of students.

Tripp Lite SRW6U Includes:

  • SRW6U Wallmount Rack Enclosure
  • (12) M6 screws
  • (12) M6 cage nuts
  • (12) M6 washers
  • (2) Keys
  • Owner's Manual

Tripp Lite SRW6U Features:

  • Designed for VoIP closets and education environments where equipment needs to be secure and out of the way
  • 6U with adjustable front vertical rackmount rails
  • Locking, reversible front door and locking, removable side panels
  • Fully assembled for quick installation
  • Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
  • 6U wall-mounted enclosure
  • Ideal for VoIP wiring closets and education venues that require security
  • Adjustable mounting depths up to 17" by 2 front vertical rackmount rails
  • Ventilated front door and side panels for increased airflow
  • Locking, reversible front door
  • Locking, removable side panels
  • Fully assembled for quick installation
  • Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance

Tripp Lite SRW6U Specifications:

  • Installed whole system maximum rack depth (inches)  16.5
  • Installed whole system maximum rack depth (cm)  41.9
  • Installed whole system minimum rack depth (inches)  3
  • Rack Height  6U
  • Shipping Dimensions (HWD/in)  17.5" x 26.5" x 20.5"
  • Shipping Dimensions (HWD/cm)  44.45 x 67.31 x 52.07
  • Shipping weight (lbs)  32
  • Shipping weight (kg)  14.5
  • External Unit Dimensions (in.): 14.5" x 23.63" x 17.5" (HWD)
  • Unit weight (lbs)  29
  • Unit weight (kg)  13
  • Unit Dimensions (cm)  36.83 x 60.02 x 44.45
  • Color  Black
  • Style  Wall Mounted
  • Weight Capacity - Stationary (lbs)  200
  • Weight Capacity - Stationary (kg)  90.7
  • Cable Access Hole Measurement (inches)  9.812 x 2.35 (l x w)
  • Grounding lug  Front and Back door frames
  • Certifications  EIA-310-E
  • NOM (Mexico)  Tested to NOM (Mexico)
  • Approvals  RoHS
  • Product Warranty Period (Worldwide)  5-year limited warranty

Tripp Lite SRW6U
6RU SmartRack Wallmount Rack

OUR PART #  SRW6U

Product Information:

Tripp Lite’s SRW6U Wall Mount Rack Enclosure Cabinet is the ideal storage solution for standard rackmount equipment in applications with limited floor space such as wiring closets, POS stations and offices. Constructed with a sturdy wall mounting bracket and steel frame, it can accommodate up to 140 lbs. of equipment in 6U of rack space. Adjustable vertical mounting rails with square holes accommodate all standard 19-inch rack equipment.

The SRW6U features a perforated lockable front door and side panels, assuring generous airflow to keep equipment operating safely. The side panels are removable for easy access to equipment, and the front door is reversible. The top and bottom panels of the enclosure include convenient cable routing ports. The SRW6U ships fully assembled and comes with a 5-year manufacturer’s product warranty.

Tripp Lite SRW6U Applications:

  • IT network environments with limited floor space
  • VoIP closets
  • Classrooms where equipment needs to be secure and out of the way of students.

Tripp Lite SRW6U Includes:

  • SRW6U Wallmount Rack Enclosure
  • (12) M6 screws
  • (12) M6 cage nuts
  • (12) M6 washers
  • (2) Keys
  • Owner's Manual

Tripp Lite SRW6U Features:

  • Designed for VoIP closets and education environments where equipment needs to be secure and out of the way
  • 6U with adjustable front vertical rackmount rails
  • Locking, reversible front door and locking, removable side panels
  • Fully assembled for quick installation
  • Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
  • 6U wall-mounted enclosure
  • Ideal for VoIP wiring closets and education venues that require security
  • Adjustable mounting depths up to 17" by 2 front vertical rackmount rails
  • Ventilated front door and side panels for increased airflow
  • Locking, reversible front door
  • Locking, removable side panels
  • Fully assembled for quick installation
  • Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance

Tripp Lite SRW6U Specifications:

  • Installed whole system maximum rack depth (inches)  16.5
  • Installed whole system maximum rack depth (cm)  41.9
  • Installed whole system minimum rack depth (inches)  3
  • Rack Height  6U
  • Shipping Dimensions (HWD/in)  17.5" x 26.5" x 20.5"
  • Shipping Dimensions (HWD/cm)  44.45 x 67.31 x 52.07
  • Shipping weight (lbs)  32
  • Shipping weight (kg)  14.5
  • External Unit Dimensions (in.): 14.5" x 23.63" x 17.5" (HWD)
  • Unit weight (lbs)  29
  • Unit weight (kg)  13
  • Unit Dimensions (cm)  36.83 x 60.02 x 44.45
  • Color  Black
  • Style  Wall Mounted
  • Weight Capacity - Stationary (lbs)  200
  • Weight Capacity - Stationary (kg)  90.7
  • Cable Access Hole Measurement (inches)  9.812 x 2.35 (l x w)
  • Grounding lug  Front and Back door frames
  • Certifications  EIA-310-E
  • NOM (Mexico)  Tested to NOM (Mexico)
  • Approvals  RoHS
  • Product Warranty Period (Worldwide)  5-year limited warranty
