Cables To Go 19378

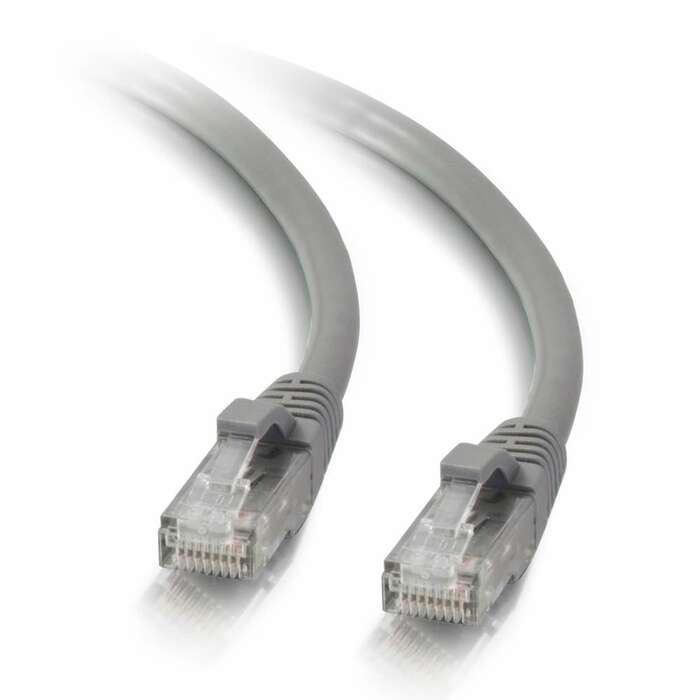

150 ft Cat5 Cable in Grey

OUR PART #:  19378

Cables to Go's 19378 150 ft Cat5 cable is for fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications.
Learn More
Our Price: $42.82
List Price: $65.99
You save 35%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Cables To Go 19378
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Cables to Go's 19378 150 ft Cat5 cable is for fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications.  Meets all Cat5e TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL).  Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point.  Constructed from high-quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels.  The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief.

Connector 1: (1) RJ-45 Male

Connector 2: (1) RJ-45 Male

Weight: 3.2823 lbs

Cables to Go 19378 Specifications:

  • Conductor DC Resistance: 89 Ohm/km (maximum)
  • Insulation Resistance: 100 Ohm/km (minimum)
  • Dielectric Strength: 500 MV/m
  • Conductor Type/Size - Bare Copper Stranded, 24 AWG (7/0/2.0)]
  • Insulation Material - H-D PE
  • Insulation Diameter - 0.95 ± 0.05mm
  • Jacket Material - FR-PVC
  • Nominal Jacket Thickness - 0.55mm
  • Outer Jacket Diameter - 5.30mm
  • Connector Material - Polycarbonate
  • Hood Material - Molded PVC
  • Contact Material - Copper alloy plated with gold-50µ
  • Number of contacts - Eight
  • Approvals - RoHS Compliant, Verified to EIA/TIA 568B.2
  • Wired - TSB 568B (AT<(>&<)>T 258A)
  • Package Type - Polybag
