Sony BKM341HS
HD/SD-SDI Input

OUR PART #:  BKM341HS

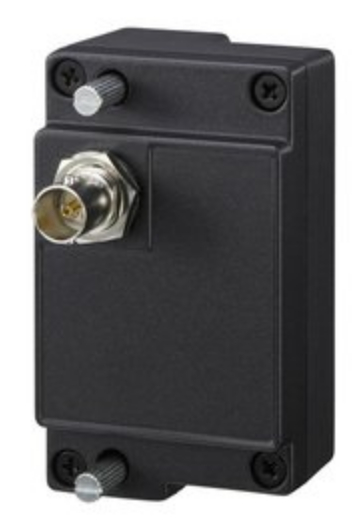

The HD/SD-SDI Input Adaptor BKM-341HS from Sony is used for HD-SDI or SD-SDI signal input to Sony professional monitors.
Learn More
Our Price: $484.84
List Price: $520.00
You save 7%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Sony BKM341HS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The HD/SD-SDI Input Adaptor BKM-341HS from Sony is used for HD-SDI or SD-SDI signal input to Sony professional monitors. When the adaptor is installed in the option input connector on the rear of an entry level monitor, it functions as an input connector that decodes HD-SDI or SD-SDI signals. Audio signal converted to analog can be input to the OPTION AUDIO IN of the monitor. This item should be used with the LMD1510W and LMD2110W models.

NOTE: Certain models of monitors are not supported by this adaptor. For information on compatibility with the adaptor, refer to the manual supplied with your monitor.

Sony BKM341HS Specifications:

General

  • Power requirements: +5 V (supplied from the monitor)
  • Power consumption: Approx. 1.8 W

Operating conditions

  • Temperature: 0°C to 35°C (32°F to 95°F)
  • Optimum temperature: 20°C to 30°C (68°F to 86°F)
  • Humidity: 0% to 90% (no condensation)
  • Pressure: 700 hPa to 1060 hPa

Storage and transport conditions

  • Temperature: –20°C to +60°C (–4°F to +140°F)
  • Humidity: 0% to 90%
  • Pressure: 700 hPa to 1060 hPa
  • Maximum external dimensions (w/h/d): Approx. 45 × 75× 36 mm (1 7/8 × 3 × 1 1/2 inches) (not including the projected parts)
  • Mass: Approx. 120 g (4.2 oz)

Input/output connectors

  • Digital input: BNC (1)
  • Option output: D-sub 9-pin (1)

Signal characteristics

  • Input signal format:
      -  270 Mbps, 10 bit 4:2:2 componentdigital video
      -  SMPTE 259M 1.48 Gbps, 10 bit 4:2:2 componentdigital video
      -  SMPTE 292M (except 1080/50p and 1080/60pinput)
