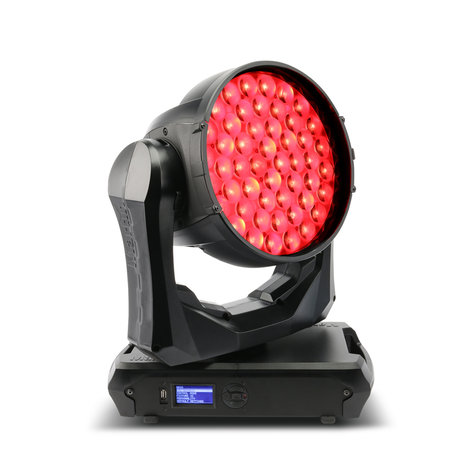

Martin Professional MAC-QUANTUM-WASH
LED Wash Fixture, 90240020


The MAC Quantum Washâ„¢ showcases tight beams, beautiful wash fields, a market-leading color palette...
Learn More

Call for price! Not available online.
List Price: $8,224.00

Related Products

The MAC Quantum Washâ„¢ showcases tight beams, beautiful wash fields, a market-leading color palette, and uniform mixing that combines to accommodate the most demanding applications, offering brightness and perfection. Combining an impressive 750 watt of RGBW LED power with Martin’s market leading optical system ensures that the 1:6 zoom on the MAC Quantum Wash operates with maximum output and superior performance.

With its compact form factor, super high-speed movements, low noise cooling, rugged construction and unique patented Aura effect, the MAC Quantum Wash does not compromise on any aspect of what you expect from a wash light. Get ready for the new workhorse in your rig.

Martin MAC Quantum Washâ„¢ Features:

  • Bright and perfect light for demanding applications
  • 1:6 zoom
  • Unique and expressive Colorganicsâ„¢ system
  • Highly efficient optical quality
  • Compact form factor
  • Super high-speed movements
  • Rugged construction

Martin MAC Quantum Washâ„¢ Specifications:

  • Physical:
    • Length: 17.8 in. (452 mm)
    • Width: 17.3 in. (439 mm)
    • Height (maximum): 22.9 in. (581 mm)
    • Height (head straight up): 20.1 in. (511 mm)
    • Weight: 46.3 lbs. (21 kg)
  • Dynamic Effects:
    • Color mixing: RGBW
    • Beam effects: Beam twister, light and color morphing, color spin
    • 'Color wheel' effect: 36 solid colors plus white, variable-speed 'color wheel rotation' effect and random color
    • Color ring effects: 36 split ring colors with variable-speed color wheel rotation effects
    • Shutter effect: Electronic, with variable speed regular and random strobe
    • Pre-programmed effects: Range of synchronized and independent color, intensity, beam twister and zone effects
    • Electronic dimming: Four dimming curve options
    • Color temperature control: Variable 2000 - 10 000 K
    • Zoom: 11° - 59° (one-tenth peak angle)
    • Pan: 540°
    • Tilt: 270°
    • Pan and tilt speed: Adjustable via onboard control panel and DMX
  • Control and Programming
    • Control system: DMX
    • Control options: Independent control of color ring/beam zones
    • Macro programs selectable via DMX: Synchronized beam zone effects
    • RDM: Implemented
    • Control resolution: 8-bit, with 16-bit control of pan, tilt, dimming and lens rotation
    • DMX channels: 33/14
    • Setting and addressing: Control panel with backlit graphic display
    • DMX compliance: USITT DMX512-A
    • RDM compliance: ANSI/ESTA E1.20
    • Transceiver: RS-485
    • Fixture software update: Via DMX with Martinâ„¢ USB Duo DMX Interface Box
  • Optics:
    • Light source: 50 x 15 W RGBW LEDs
    • Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
      *Figure obtained under manufacturer´s test conditions
  • Photometric Data:
    • Total output: 15 400 lm
  • Construction:
    • Color: Black
    • Housing: High-impact flame-retardant thermoplastic
    • Protection rating: IP20
  • Installation:
    • Mounting points: 2 pairs of 1/4-turn locks
    • Location: Indoor use only, must be fastened to surface or structure
    • Orientation: Any
    • Minimum distance to combustible materials: 0.7 ft. (0.2 m)
    • Minimum distance to illuminated surfaces: 6.6 ft. (2.0 m)
  • Connections:
    • AC power input: Neutrik PowerCon
    • DMX and RDM data in/out: 5-pin locking XLR
  • Electrical:
    • AC power: 120-240 V nominal, 50/60 Hz
    • Maximum total power consumption: 760 W
    • Power supply unit: Auto-ranging electronic switch mode
    • Typical power consumption, all effects static, zero light output: Approx. 50 W
  • Typical Power and Current:
    • 120 V, 60 Hz: 7.4 A, 880 W, PF 0.999
    • 208 V, 60 Hz: 4.2 A, 860 W, PF 0.995
    • 30 V, 50 Hz: 3.8 A, 856 W, PF 0.993
    • 240 V, 50 Hz: 3.7 A, 858 W, PF 0.992
      Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
  • Thermal:
    • Cooling: Forced air (temperature-regulated, low noise, user-definable levels)
    • Maximum ambient temperature (Ta max.): 40° C (104° F)
    • Minimum ambient temperature (Ta min.): 5° C (41° F)
    • Total heat dissipation (calculated, +/- 10%): 3000 BTU/hr.
  • Approvals:
    • EU safety: EN 60598-2-17 (EN 60598-1), EN 62471
    • EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
    • US safety: UL 1573
    • US EMC: FCC Part 15 Class A
    • Canadian safety: CSA C22.2 No. E598-2-17 (CSA E60598-1)
    • Canadian EMC: ICES-003 Class A
    • Australia/NZ: C-TICK N4241
