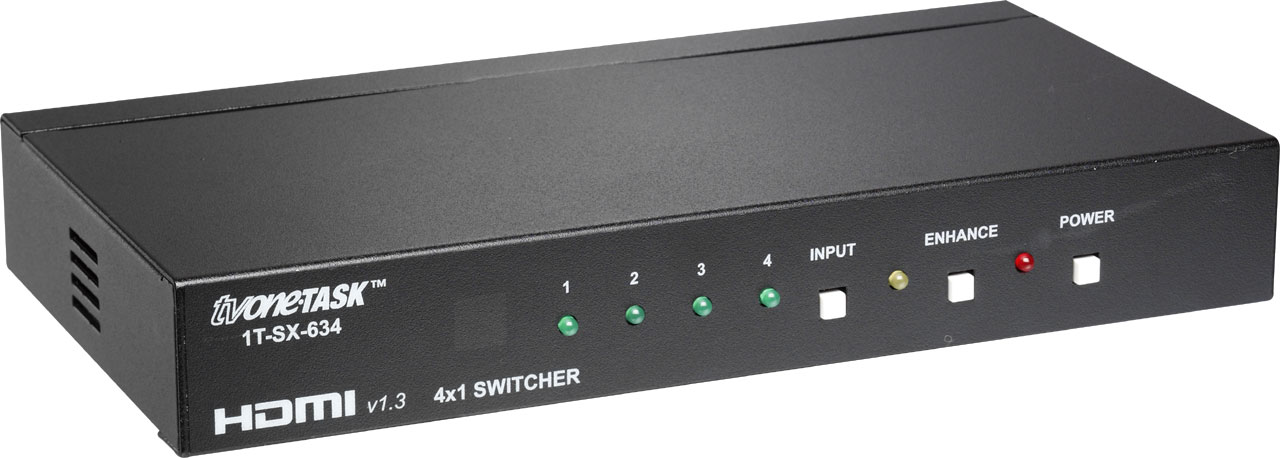

TV One 1T-SX-634
4x1 HDMI v1.3 Routing Switcher

OUR PART #  1T-SX-634

Our Price: $175.00
Please call for availability.

TV One's 1T-SX-634 switches up to four inputs and is HDMI v 1.3 compliant.  The unit maintains the signal components present within the encoded signal and allow the user to easily select program material without plugging and unplugging cables.  Embedded audio, including Dolby® Digital TrueHD and DTS-HD is supported.

HDTV resolutions of 480p, 576p, 720p, 1080i and 1080p are supported, plus SDTV resolutions of 480i and 576i and PC resolutions up to 1920x1200.  The unit is fully DVI compatible.  The switchers can be controlled via the front panel or with the included Infrared Remote Control. RS-232 control is provided as a standard feature.

Provisions are made for securing locking type HDMI cables.  The units are housed in rugged metal cases and optional (sold separately) Single/Dual Rackmount Kits are available.  They are 5VDC powered and a Power Adapter is included.  The DC power connector is a locking type for security.  For best performance at long distances, premium grade cables are recommended.

TV One 1T-SX-634 Features:

  • Switches two or four HDMI Sources
  • Supports HDTV resolutions up to 1080p
  • Supports SDTV 480i, 576i resolutions
  • Supports PC resolutions up to 1920x1200
  • HDMI v1.3, HDCP v1.1, DVI v1.0 Compliant
  • 3D Compatible
  • Built-in Enhancer for long cable runs
  • Supports 10/12 bit Color Depth Displays
  • Supports DDWG Standard for HDMI Monitors
  • Supports embedded audio, including Dolby® Digital TrueHD and DTS-HD
  • Controllable via Front Panel or Included IR Remote
  • RS-232 Control Port Provided
  • Single/Dual Rackmount Kit optional
  • Locking DC Power Connector for Security

TV One 1T-SX-634 Specifications:

  • Video Inputs: 4x HDMI via Type A Connectors
  • Video Output: 1x HDMI via Type A Connector
  • Video Specifications:
    • SDTV Resolutions: 480i, 576i
    • HDTV Resolutions: 480p, 576p, 720p, 1080i, 1080p
    • PC/DVI Resolutions: Up to 1920x1200
    • Bandwidth: 2.25 GHz
    • Color Depth: 10/12 bit
    • Compliance: HDMI V1.3, HDCP V1.1, DVI V1.0
    • Signal Enhancement: Switchable On/Off
  • Audio Specifications:
    • Embedded: per HDMI v1.3 standard
    • HD-Audio: including Dolby® TrueHD, DTS-HD
  • Maximum Cable Lengths:
    • Source to Switch Input: Up to 15m (45 ft)*
    • Switch Output to Display: Up to 15m (45 ft)*
      *To achieve the max rated distance, use premium cables.
  • Dimensions: 1.2" H x 7.9" W 3.5" D (30 x 200 x 89 mm)
  • Weight (Net): 1.9 lb (0.85 kg)
  • Operating Temperature: 0° to +50°C (+32° to 122° C)
  • Operating Humidity: 10% to 90%, Non-Condensing
  • Storage Temperature: 0° to +70°C (+32° to 158° C)
  • Storage Humidity: 10% to 90%, Non-Condensing
  • Remote Control:
    • Serial Interface: RS-232 via DB-9
    • Infrared: IR Remote Included
  • Limited Warranty: 3 Years Parts and Labor
  • Power Requirement:
    • External Power Supply: 5VDC@2A – Locking DC
  • Regulatory Approvals:
    • Converter Unit: FCC, CE, RoHS, HDMI ATC
    • Power Supply: UL, CUL, CE, PSE, GS, RoHS
  • Accessories Included:
    • 1x Power Adapter: US, UK or Euro
    • Operations Manual
    • IR Remote Control Unit
    • Locking Cable Kit: Hex adapters to accommodate locking HDMI connectors
  • Optional Accessory (sold separately): RM-230 Single/DualRackmount Kit

TV One 1T-SX-634
4x1 HDMI v1.3 Routing Switcher

OUR PART #  1T-SX-634

Product Information:

TV One's 1T-SX-634 switches up to four inputs and is HDMI v 1.3 compliant.  The unit maintains the signal components present within the encoded signal and allow the user to easily select program material without plugging and unplugging cables.  Embedded audio, including Dolby® Digital TrueHD and DTS-HD is supported.

HDTV resolutions of 480p, 576p, 720p, 1080i and 1080p are supported, plus SDTV resolutions of 480i and 576i and PC resolutions up to 1920x1200.  The unit is fully DVI compatible.  The switchers can be controlled via the front panel or with the included Infrared Remote Control. RS-232 control is provided as a standard feature.

Provisions are made for securing locking type HDMI cables.  The units are housed in rugged metal cases and optional (sold separately) Single/Dual Rackmount Kits are available.  They are 5VDC powered and a Power Adapter is included.  The DC power connector is a locking type for security.  For best performance at long distances, premium grade cables are recommended.

TV One 1T-SX-634 Features:

  • Switches two or four HDMI Sources
  • Supports HDTV resolutions up to 1080p
  • Supports SDTV 480i, 576i resolutions
  • Supports PC resolutions up to 1920x1200
  • HDMI v1.3, HDCP v1.1, DVI v1.0 Compliant
  • 3D Compatible
  • Built-in Enhancer for long cable runs
  • Supports 10/12 bit Color Depth Displays
  • Supports DDWG Standard for HDMI Monitors
  • Supports embedded audio, including Dolby® Digital TrueHD and DTS-HD
  • Controllable via Front Panel or Included IR Remote
  • RS-232 Control Port Provided
  • Single/Dual Rackmount Kit optional
  • Locking DC Power Connector for Security

TV One 1T-SX-634 Specifications:

  • Video Inputs: 4x HDMI via Type A Connectors
  • Video Output: 1x HDMI via Type A Connector
  • Video Specifications:
    • SDTV Resolutions: 480i, 576i
    • HDTV Resolutions: 480p, 576p, 720p, 1080i, 1080p
    • PC/DVI Resolutions: Up to 1920x1200
    • Bandwidth: 2.25 GHz
    • Color Depth: 10/12 bit
    • Compliance: HDMI V1.3, HDCP V1.1, DVI V1.0
    • Signal Enhancement: Switchable On/Off
  • Audio Specifications:
    • Embedded: per HDMI v1.3 standard
    • HD-Audio: including Dolby® TrueHD, DTS-HD
  • Maximum Cable Lengths:
    • Source to Switch Input: Up to 15m (45 ft)*
    • Switch Output to Display: Up to 15m (45 ft)*
      *To achieve the max rated distance, use premium cables.
  • Dimensions: 1.2" H x 7.9" W 3.5" D (30 x 200 x 89 mm)
  • Weight (Net): 1.9 lb (0.85 kg)
  • Operating Temperature: 0° to +50°C (+32° to 122° C)
  • Operating Humidity: 10% to 90%, Non-Condensing
  • Storage Temperature: 0° to +70°C (+32° to 158° C)
  • Storage Humidity: 10% to 90%, Non-Condensing
  • Remote Control:
    • Serial Interface: RS-232 via DB-9
    • Infrared: IR Remote Included
  • Limited Warranty: 3 Years Parts and Labor
  • Power Requirement:
    • External Power Supply: 5VDC@2A – Locking DC
  • Regulatory Approvals:
    • Converter Unit: FCC, CE, RoHS, HDMI ATC
    • Power Supply: UL, CUL, CE, PSE, GS, RoHS
  • Accessories Included:
    • 1x Power Adapter: US, UK or Euro
    • Operations Manual
    • IR Remote Control Unit
    • Locking Cable Kit: Hex adapters to accommodate locking HDMI connectors
  • Optional Accessory (sold separately): RM-230 Single/DualRackmount Kit
