Varizoom VZM5K
Monitor Deluxe Kit


Our Price: $395.56
List Price: $399.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

The VZM5 monitor deluxe kit from Varizoom comes with a sunhood/screen protector, Sony L series battery plate, high-capacity battery (6 hrs), charger, soft case, swivel shoe mount, HDMI cable locks (2), remote zoom button for focus assist, AC adapter, 2 HDMI cables (standard-standard & standard-mini). This kit includes everything you need for monitoring your video productions. Starting with our ultra-sharp VZM5 monitor for accurate representation of your video feed, this kit includes accessories and features you won't find anywhere else.

The collapsible sunhood/screen protector offers a professional look, excellent viewing outdoors, and superior protection during storage & transport. The high-capacity battery system will keep your monitor running for 6 hours or more. Pre-mounted with the kit are a Sony L series battery plate and the extremely handy HDMI locks to prevent the cable from loosening or damaging the monitor connectors should the cable get yanked or bent. Also included are the swivel shoe mount for attaching the monitor to your camera and the padded carrying case that holds everything together and protects your investment.

Last but not least is the innovative zoom button that allows you to remotely put the monitor in pixel-to-pixel and peaking modes for extremely accurate focusing. Buy this kit to save or purchase the accessories a la carte. Don't forget about Varizoom's optional VZM5-RC rubber case protector to make your monitor stand up to the rigors of field use.

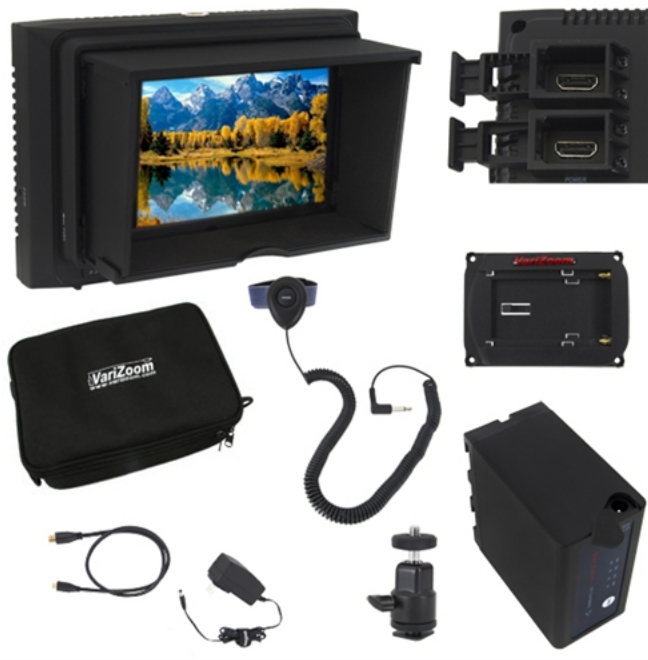

What's in the Varizoom VZ-M5K Box:

  • VZM5 monitor with power supply and 2 HDMI cables (mini-std and std-std)
  • VZMHD5 sunhood/screen protector
  • VZCC soft carrying case with straps
  • VZSHOE swivel shoe mount for camera-top mounting
  • High-capacity L Series battery (6hrs)
  • VZMBPS Sony L Series battery plate (premounted)
  • VZMCH Sony charger
  • VZMZB remote zoom button for Focus Assist
  • VZMLOCK HDMI locks (2)
  • AC adapter
  • 2 HDMI cables (standard-standard & standard-mini)

Varizoom VZ-M5K Features:

  • Accepts all HD signals up to 1080p
  • HDMI In / Out (loop through)
  • DSLR Scaling to allow full-screen viewing of image from cameras such as Canon 5D
  • Auto Aspect Ratio Detection
  • Monochrome (B&W) mode
  • Image Flip for inverted mounting (1/4”-20 mounts on top and bottom of monitor)
  • Safety Area markers (5 levels), Centerline Marker, 4:3 area markers
  • Underscan and Overscan modes
  • Color Temperature Presets (D65 and D93 standards), or user-defined through RGB settings
  • Brightness, Contrast, Saturation, Sharpness adjustments
  • Customizable Menu Options for menu duration, position, text color and language
  • Headphone jack for audio monitoring
  • Pixel-to-Pixel Zoom and Peaking for Focus Assist

Varizoom VZ-M5K Specifications:

  • Screen Size: 4-7/8” diagonal
  • HDCP Compliant: YES
  • Native Resolution: 800 x 480
  • Brightness: 500 cd/m2
  • Contrast: 800:1
  • Backlight Type: LED
  • Video Formats: 1080 – 24p/24psf/25p/30p/50i/60i/50p/60p; 720 - 50p/60p; 480i; 480p; 576i; 576p
  • Response Time: 10ms
  • Viewing Angle: L80° / R80° / U80° / D80°
  • Input Voltage: 12VDC nominal (6.5 – 36VDC max range)
  • Mount Type: ¼”-20 female (2) top and bottom
  • Inputs/Outputs: HDMI (in), HDMI (out), Headphone 3.5mm (out), “Zoom” (in) 3.5mm
  • Size: 5.8” x 3.96” x 1.22”
  • Monitor Weight: 0.74 lb
  • Battery Capacity: 47 Wh / 6600 mAh / approx 6 hrs runtime
  • Power consumption: = 7.5W
