HD BaseT Lite HDMI over UTP Extender Receiver and Transmitter


The Mini-Cat brand UH-1BT extends any HDMI or single link DVI video signal up to 230 ft over inexpensive UTP (Cat6) cable using HDBaseT-Lite technology.
Learn More
Our Price: $408.50
List Price: $430.00
You save 5%!
Write the first review.
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Mini-Cat brand UH-1BT extends any HDMI or single link DVI video signal up to 230 ft over inexpensive UTP (Cat6) cable using HDBaseT-Lite technology.  Video and embedded audio signals are transmitted without any compression to the remote for a 100% identical reproduction.

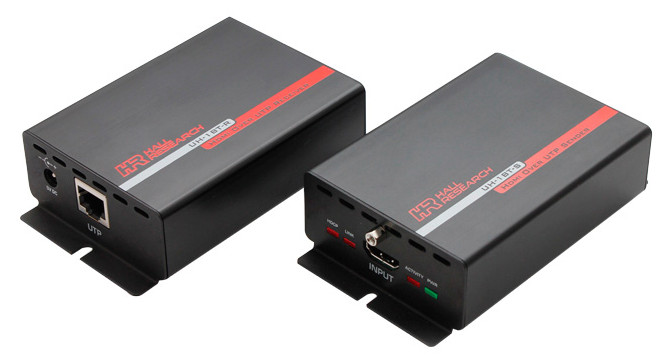

The UH-1BT is comprised of a local Sender (transmitter) and a remote Receiver.  Each is constructed as a compact metal enclosure with mounting provision and feature locking HDMI connectors.  The extender is HDCP compliant with pass-thru EDID and supports embedded audio, Full HD, deep color (1080p@60Hz @ 48 bits/pixel), and 3D video.  The UH-1BT can also extend 4Kx2K video that is gaining popularity.  Secondary data channels such as: DDC, CEC, and HPD (Hot-Plug Detect) are also transparently extended.  Plug and play operation with no user adjustments offer a truly trouble-free experience.

As a leader in the field of video over twisted pair extension, Hall Research's Mini-Cat brand has set a new standard in the industry for unsurpassed quality and reliability.

TecNec HRT-UH-1BT Features:

  • Extend HDMI or DVI over single Cat 5e/6 up to 230 ft (70 m)
  • Utilizes HDBaseT Lite extension technology
  • Full HD support 1080p deep color, 3D, and 4K x 2K
  • HDCP Compliant with pass-thru EDID from display to source
  • Supports virtually all HD and PC resolutions
  • Supports HDMI Audio
  • Compatible with all HDBaseT and HDBaseT Lite compliant products
  • Locking HDMI connector
  • Universal power supply included
  • Uncompressed digital video extension guarantees 100% fidelity
  • Plug and play, no configuration required
  • Compact metal enclosure with mounting provisions
  • Reliable, trouble free operation
  • 100% designed and manufactured in the USA

TecNec HRT-UH-1BT Specifications:

  • Max Distance: 230 ft (70m)
  • Video Standards: DVI (single link) and HDMI (compliant with HDMI 1.4 video specifications including 12 bit color depth, 3D video and 4K support)
  • Signal Type: TMDS
  • Connectors: Locking HDMI
  • DVI / VGA Video Resolutions: VGA (640x480) to WUXGA(1920x1200)
  • HDTV Resolutions: 480i to 1080p
  • Digital Cinema Resolutions: 4K (4096x2160)
  • Audio: All HDMI Embedded Audio
  • DDC: Pass-Thru DDC for reading EDID directly from remotely connected LCD and HDCP handshake
  • CEC: Pass-Thru DDC for Consumer Electronics Control compatible devices
  • Power Supply: 100 VAC to 240 VAC, 50-60 Hz, external;5 VDC, 2.6 A, regulated
  • Nominal Power: Sender: 2.25 W max
  • Nominal Power: Receiver: 4.25 W max
  • Temperature:
    • Storage: -40° to 158 °F (-40° to 70 °C);
    • Operating: 32° to 104 °F (0° to 40 °C)
  • Humidity: 10% to 90%, non-condensing
  • Cooling: Convection
  • Mounting: End plates have L bracket with hole for surface mounting
  • Enclosure: Metal (Steel ends and Aluminum extrusion)
  • Dimensions (HxWxD): 1.18" x 2.75" x 3.85" (30mm H x70mm W x 98mm D) (Depth excludes connectors)
  • Weight: 0.75 lb (0.35 kg)
  • Shipping Weight: 1.5 lbs (0.70 kg)
  • Vibration: ISTA 1A in carton (International SafeTransit Association)
  • Safety: CE
  • EMI/EMC: CE, FCC Class A
  • MTBF: 90,000 hours (Calculated Estimate)
