Peerless PRSS-UNV PRSS Series Projector Mount for Projectors Up to 50lb

OUR PART #: PRSS-UNV MFR #: PRSS-UNV-W

Copied to clipboard

The PRSS Projector Mount from Peerless-AV offers one of the fastest and easiest installation available in the market. ...Read more

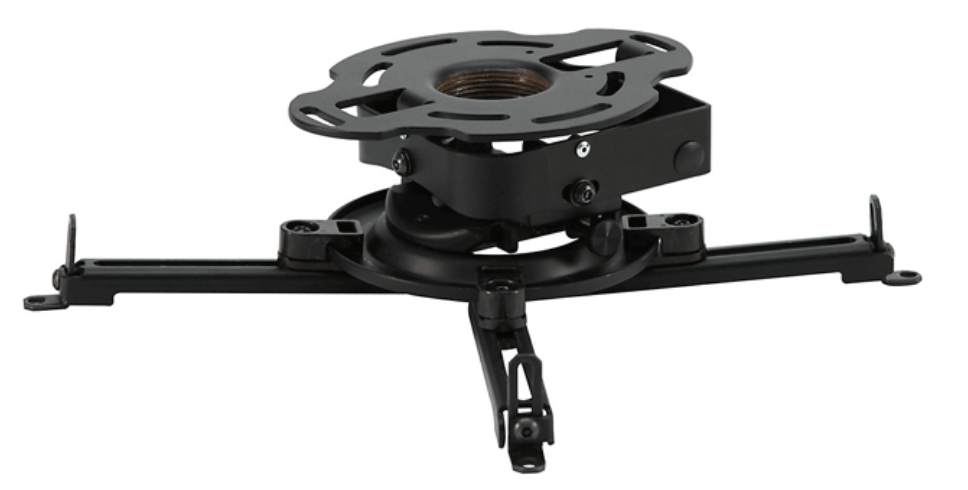

Peerless PRSS-UNV PRSS Series Projector Mount For Projectors Up To 50lb Image 1
Peerless PRSS-UNV PRSS Series Projector Mount For Projectors Up To 50lb
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The PRSS Projector Mount from Peerless-AV offers one of the fastest and easiest installation available in the market. It allows for independent pitch, roll and swivel alignment with two easily accesible adjustment points. Just set the mount to the desired position and secure it in place. It will hold its position even during projector maintenance. With its discreet, low-profile design the projector mount is perfect for flush mounting applications. With Peerless-AV® PRSS Projector Mount, just set it and forget it.

Peerless PRSS-UNV Features:

  • Independent roll, pitch and yaw adjustments provide easy image alignment
  • Specifications: Pitch: +15°/-20° Roll: ±5° Swivel: 360° (during installation)
  • Pre-installed security screws provide tilt and roll locking ability to prevent tampering and adjustments
  • Low profile design allows projector to be flush with the ceiling
  • Open frame assembly provides easy cable routing through the projector mount itself
  • Quick release mechanism to easily service projector

Peerless PRSS-UNV Specifications:

  • Mounting Pattern: 448 X 448mm (17.63 X 17.63")
  • Weight Capacity: 50lb (22kg)
  • Color: Black (shown), also available in Silver and White
  • Finish: Powder Coat
  • Security Features: Security Hardware
  • Tilt: +15 / -20
  • Swivel Yaw: 360
  • Roll: +5 / -5
  • Distance from Ceiling: 3.63-4.63" (92-118mm)
  • Product Dimensions: 4.79-17.63 X 3.63 - 4.63 X 4.79-17.63" (122 - 448 X 92 - 118 X 122 - 448mm)
  • Ship Dimensions: 6.75 x 3 x 14.25" (171.5 x 76.2 x 362.0mm)
  • Shipping Weight: 3.92lb (1.7kg)

NOTE:

All projectors with M8 mounting screws require ACC-M8RI inserts for compatibility with any Peerless-AV projector mount, please refer to the Recommended Accessories in your owners manual.
