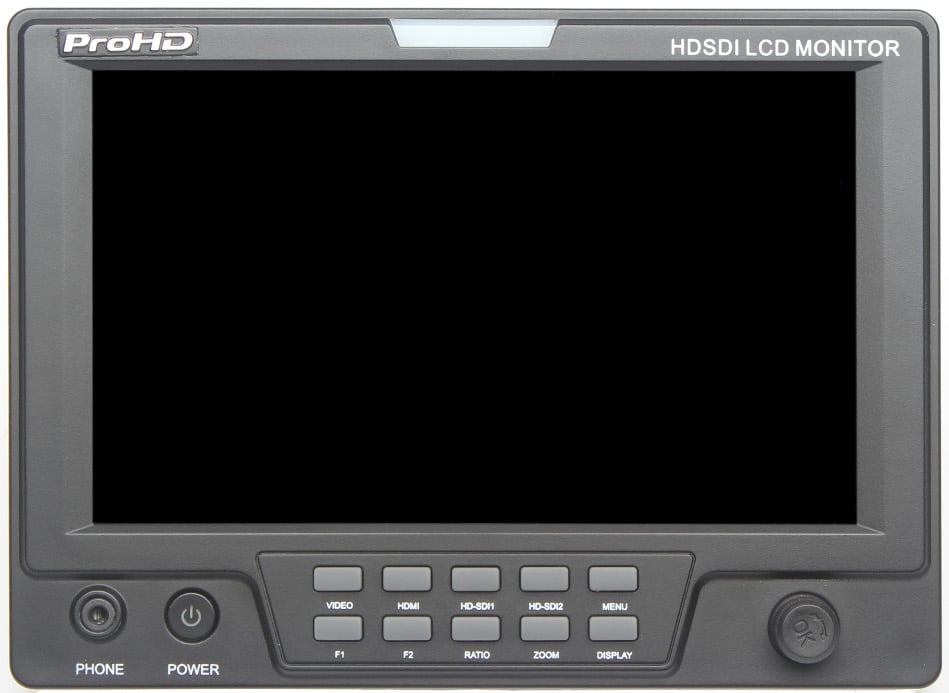

JVC DT-X71HI
ProHD 7" HD-SDI/HDMI AC/DC Portable Monitor

OUR PART #:  DTX71HI

JVC's DT-X71HI is a 7" HD-SDI/HDMI on-camera monitor with 1024 x 600 resolution, H/V: 160/160 viewing angle and 900:1 contrast ratio.
Learn More
Our Price: $1,034.72
List Price: $1,150.00
You save 10%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

JVC DT-X71HI
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

JVC's DT-X71HI is a 7" HD-SDI/HDMI on-camera monitor with 1024 x 600 resolution, H/V: 160/160 viewing angle and 900:1 contrast ratio.  It has front & rear dual TALLY lights, Canon DSLR scale zoom-in, video flip, customer editable video title, and safety mark display.

The monitor accepts 2 HD/SD-SDI, 1 HDMI, 1 Composite video, 1 stereo audio input, and has 1 HD/SD-SDI loop through output.  The DT-X71H is powered via a 4-pin XLR 12V DC connector or a snap-on 7.4V IDX SSL-JVC50 battery (optional)—the same battery used with the GY-HM600/650 cameras.

JVC DT-X71HI Features:

  • 1024 x RGB x 600
  • 16:9 / 4:3 adjustable
  • HD/SD-SDI, HDMI, Composite video, Stereo audio inputs
  • Dual 3-color TALLY light
  • Underscan / Overscan switch
  • Canon DLSR scale zoom-in
  • Picture flip
  • Customer editable video TITLE
  • Warranty Period: 2 years conditional

JVC DT-X71HI Specifications:

  • Screen Size: 7"
  • Viewing Angle: H/V: 160°/160°
  • Resolution: 1024 x RGB x 600
  • Brightness: 400cd/m²
  • Contrast: 900:1
  • Aspect Ratio: 16:9/4:3
  • Working Voltage: DC 12V/2A or Battery 6.5V- 17V)
  • Rated Power: less than or equal to 8W
  • Dimension: 7.5" x 5.5" x 1.9" (192 x 139 x 47 mm)
  • Net Weight: 1.3 lbs (550g)
  • Signal Input:
    • 2 BNC: 2 HD/SD-SDI in
    • 1 BNC: 1 Composite in
    • 1 HDMI: 1 HDMI in
    • 2 RCA: L, R stereo audio in
  • Signal Output:
    • 1 BNC: 1 HD/SD-SDI loop through out
  • Signal Format:
    • HDSDI (1.485Gbps): 1080I50 /60, 720P50 /60, 1080P24 /25/30
    • SDSDI (270Mbps): 576i / 480i
    • HDMI: 480I /P, 576I /P, 1080I50 /60, 720P50 /60, 1080P24, 1080P25/30/50/60
    • Composite: PAL/NTSC/SECAM
