Turbosound TCS62
6.5" 175W (8 Ohms) 2-Way Full-Range Passive Arrayable Loudspeaker in Black


Our Price: $499.99
List Price: $574.99
You save 13%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

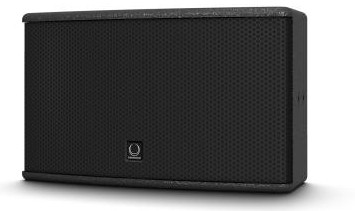

The Turbosound TCS62 is an arrayable passive two-way full-range loudspeaker designed for use in a wide range of fixed installations.  It consists of a carbon fiber loaded 6.5" low frequency driver with low mass coil for improved transient response and an aluminium dome 1" neodymium motor high frequency compression driver on a rotatable 100° horizontal by 60° vertical Converging Elliptical Waveguide in an optimally tuned enclosure.  These high grade components are matched with an internal passive crossover to ensure a seamless transition between the HF and LF drivers.

The cabinet is constructed from 12 mm (1/2") birch plywood, with an architecturally-styled powder coated perforated steel mesh grille backed with reticulated foam.  Its trapezoidal shape allows it to be tight packed with other TCS series cabinets and enables visually unobtrusive loudspeaker arrays.  Multiple rigging points, supported by internal steel flying strips, are provided on the top, bottom, sides and rear of the cabinet to allow the TCS62 to be suspended and angled in permanent installations using M8 shoulder eyebolts, and for use with Turbosound and OmniMount wall and ceiling brackets.

A Neutrik speakON NL4 input connector is located on the rear panel wired in parallel with a 4-way barrier strip providing input and link through connections to additional TCS series cabinets.  The TCS62 is finished in hard wearing semi matte black or optional white textured paint.

Turbosound TCS62 Features:

  • Arrayable 2 way full range loudspeaker for installation applications
  • 175 Watts continuous, 700 Watts peak power
  • Carbon fiber loaded 6.5" low frequency driver with low mass coil for improved transient response
  • Aluminium dome 1" neodymium motor compression driver
  • Rotatable converging elliptical waveguide provides 100° H x 60° V dispersion
  • Multiple array configurations for extended coverage
  • Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
  • Multiple internal rigging points allow bracket mount and suspension in any orientation
  • 12 mm (5/8") birch plywood enclosure with hard wearing semi matte black paint finish
  • Architecturally styled powder coated perforated steel mesh grille
  • Neutrik speakON NL4 and barrier strip connectors
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound TCS62 Specifications:

  • Components:  1x 6.5" (165 mm) LF driver, 1x 1" (25 mm) HF driver on a Converging Elliptical Waveguide
  • Frequency Response:  70 Hz - 20 kHz (±3dB), 50 Hz - 20 kHz (-10dB)
  • Dispersion:  100° H x 60° V @ -6dB points
  • Sensitivity (1 W @ 1 M):  88dB
  • Power Handling:  175 Watts continuous, 700 Watts peak
  • Calculated Max SPL:  110dB continuous, 116dB peak
  • Nominal Impedance:  8 Ohms
  • Construction:  12 mm (1/2") birch plywood. Finished in black semi matte textured paint
  • Grille:  Powder-coated perforated steel with foam backing
  • Connectors:  Neutrik speakON NL4, wired pin 1+:positive, pin 1-: negative, pins 2+ and 2- N/C, 4-way barrier strip connector
  • Rigging:
    • 8x M8 internal rigging points with internal flying strips for eyebolts
    • 4x M8 internal rigging points for Turbosound brackets
    • 2x M6 internal rigging points for OmniMount brackets
  • Dimensions (HxWxD):  9.4" x 15.9" x 7.5" (238 x 403 x 190 mm)
  • Net Weight:  15.4 lbs (7 kg)
