Product Overview

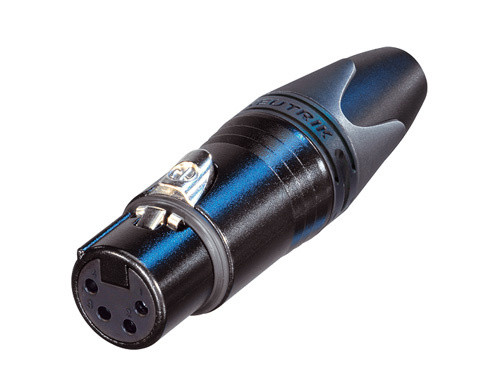

4 pole female cable connector with black metal housing and silver contacts.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Features:
- Unique cage design of female contact for low contact resistance and highintegrity
- Female contact incorporates a solder barrier to prevent solder runninginto the contact mating area
- Female connector with improved solid metal latch which is larger andeasier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makesassembly easier and faster
- Boot with polyurethane gland gives high protection to cable bendingstresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well proteced against any damage
- Branded with unique hologram - guarantees genuine and authentic Neutrikproduct
Specifications:
- Electrical Specifications:
- Capacitance between contacts: = 7 pF
- Contact resistance: = 3 mO (inner)
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 2 GO (initial)
- Rated current per contact: 10 A
- Rated voltage: 50 V
- Mechanical Specifications:
- Cable O.D.: 3.5 - 8.0 mm
- Insertion force: = 20 N
- Withdrawal force: = 20 N
- Lifetime: > 1000 mating cycles
- Wiresize: max. 1.5 mm²
- Wiresize: max. 16 AWG
- Wiring: Solder contacts
- Locking device: Latch lock
- Material Specifications:
- Boot: Polyurethane
- Contact plating: 2 µm Ag over 2 µm Ni
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67(spring)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Strain relief: Polyacetal (POM)
- Environmental Specifications:
- Flammability: UL 94 HB
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
