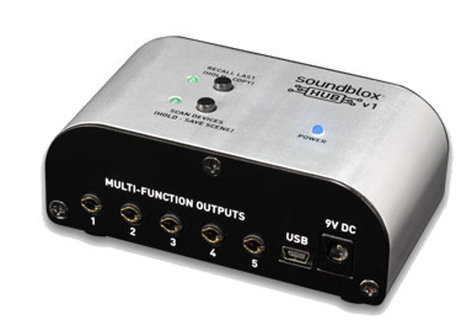

Source Audio SA164 Neuro Hub

Simplify your Source Audio One Series and Soundblox 2 pedals with the Neuro Hub and create an integrated multi-pedal system with full MIDI and save functionality for up to five pedals and 128 presets. Connect any pedal using the 5-pin MIDI IN, MIDI OUT/THRU, passive “TRS” expression pedal input, Hot Hand Sensor Input, mini USB port, and 5 Multi-Function outputs, all of which are independent of the signal chain.

Source Audio SA164 Includes:

• Neuro Hub
• 9 Volt DC power supply (negative tip, positive barrel)
• Three 1/8” TRRS sensor cables
• USB A to mini B cable

Source Audio SA164 Features:

• Standard 5-pin MIDI IN and OUT/THRU
• Passive Expression Pedal input, and Hot Hand® Sensor Input
• Connect up to 5 One Series and Soundbox 2 pedals via the Multi-Function ports
• Save and Recall up to 128 multi-pedal “Scenes” via MIDI Program Changes
• Access, Edit, and Save pedal presets and scenes via USB port to Mac or PC
• Compatible (no Scene Saving) with Soundblox 1 and Soundblox Pro

Source Audio SA164 Specifications:

• Power requirements: 9 Volts DC @ 40mA (up to 80mA with Hot Hand accessories)
• Power plug size: 2.1mm (inner dia.), 5.5mm (outer dia.) center negative, barrel positive
• Expression Pedal input: Stereo 1/4 in. plug, tip hot, 10k-50k Ohm resistance. Linear type
• Multi-Function connector: 4 conductor, 3.5mm plug
• System Requirements Windows: Vista, 7, 8, 8.1, and 10
• System Requirements Mac: 10.7, 10.8, 10.9, 10.10, 10.11
• Weight: 6 oz
• Dimensions (WxLxH): 3.8" x 2.1" x 1.4"
