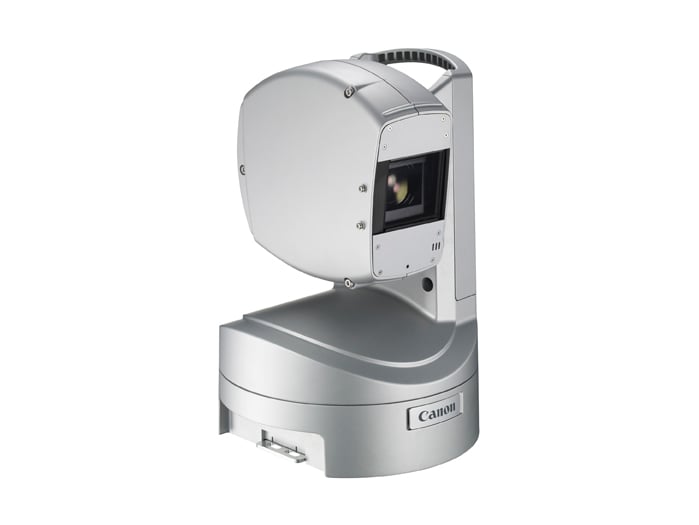

Canon EVERCAM XU-81
High Definition PTZ Camera with 20x Zoom

OUR PART #:  EVERCAM-XU-81

Call for price! Not available online.
List Price: $11,000.00

Similar Products

Canon's XU-81 (part of the EVERCAM XU series of HD PTZ cameras) has harnessed Canon's multiple advanced technologies and its experience in HD optics and robotics to produce a more cost-effective, integrated HD PTZ Camera System offering exceptional picture quality. The XU-81 is a versatile indoor/outdoor single-CMOS camera system, featuring a high waterproof and dustproof design which, when combined with its compact size, makes it ideal for: Outdoor Event Broadcasting, Weather POV, Traffic POV, Outdoor Monitoring, Indoor Event Broadcasting, House of Worship, Education, and Video Conference.

Building on the success of the BU-51H (Indoor) and BU-46H (Outdoor) HD PTZ Camera Systems for higher-end applications, the XU-81 is optimized for both environments while providing economies of scale, and incorporating the same control protocol as its sibling products, offering flexible systemization options within a given location.

Canon XU-81 Features:

  • High Quality HDTV/SDTV Video Images
    The XU-81 has a single 1/3-inch CMOS imaging sensor with 2.1 Megapixels. Utilizing a Canon 20xHD Zoom Lens, it captures exceptional, high-quality images in full-HDTV format. Dynamic Range Compensation allows for shooting in environments with a high contrast of light and shade (such as a building lobby on a sunny day) by automatically correcting the contrast of the video according to the range of scene illumination.
  • Optimized Design for Broadcast Applications
    The XU-81 incorporates high operability optimized for broadcast applications. By pressing a single pre-set button on operation panel (provided optionally), the camera head pans and tilts very smoothly while simultaneously zooming, allowing for on-air movements similar to manually-operated cameras. Also, theXU-81 utilizes HD-SDI output, the standard in the broadcast market, which enables it to acquire beautiful, important images from a distance of up to100m.
  • Waterproof and Dustproof for Indoor / Outdoor Applications
    With a waterproof and dustproof design featuring an IP55 enclosure rating, the XU-81 can be installed in challenging locations and is not affected by environmental conditions.
  • Fast, Quiet, and Precise Pan & Tilt Movements
    The XU-81 is an exceptional PTZ camera which combines smooth, fast, and highly precise movement. In Normal Mode, operational movement has a noise rating of NC<30, making it extremely suitable for quiet indoor environments. In High Speed Mode, the movements of the pan-tilt mechanism are accelerated by 50%, which is valuable in circumstances where higher speed is required.
  • Upright/Inverted Mounting Option
    The XU-81 can be mounted upright or inverted (ceiling mount). In either position, the picture image will automatically flip when the tilt angle reaches90°.
  • Compact Size and Weight
    The XU-81 includes a handle for convenient portability, and weighs only 14.5 lbs/6.6 kg, making setup almost effortless.
  • Locally Switchable Output/Control
    Users have the ability to select either the 1080i or 720p HD output to match their existing systems. Additionally, control can be toggled between RS-232 and RS-422, making the XU-81 extremely adaptable to new and existing multi-camera environments.
  • Low-light Capability/Night Mode
    When shooting under low-light conditions, the XU-81 can acquire extra brightness by using the slow-shutter function (frame accumulation). The black & white mode without the IR cut filter will also support shooting in near-darkness.

Canon XU-81 Specifications:

  • Pan-Tilt Section:
    • Operation Condition:  Indoors / Outdoors
    • Operation Angle:  Pan: ±180° Tilt: +220°~-40°
    • Operation Speed:  Pan/Tilt: 0.3~40°/ sec (normal speed mode)
    • Pan/Tilt: 0.3~60°/ sec (high speed mode)
    • Preset Position:  128
    • Stationary Accuracy:  ±10' below
    • Video Output:
      • HD: BNC (HD-SDI)
      • SD: BNC (Composite Monitor)
    • GENLOCK Input:  BNC (BB Sync/HD3value Sync)
    • Picture Flip Function:  Flip: ON/OFF
    • Control Interface:  D-sub9 (RS-232) ×1, 6pin(RS-422) ×1
    • Operating Temperature:  Ambient -15~40°C / ~90% (non-condensing)
    • Control Protocol:  NU Protocol
    • Communication Speed  9,600bps
    • Microphone:
      • Waterproof Microphone: lower part of the camera /0dBm/600 unbalanced output (with limiter)
    • Noise:  NC30 (40°/s), NC45 (60°/s) (when Wiper, ND Filter, and IRC Filter are not in operation)
    • Power Source:  DC12V±10%
    • Power Consumption:  20W
    • Size (W×H×D)  217mm × 311mm × 217mm (without projection)
    • Weight:  6.6kg (without ND Filter and Wiper)
    • HD-SDI Format:  1080/59.94i / 1080/50i / 720/59.94p / 720/50p
    • SD Format:  NTSC/PAL (linked with the HD-SDI output)
    • GENLOCK  Internal/External, Auto Switching
    • Waterproof/Dustproof Rating:  IP55
    • Wind-Velocity-Resistance:
      • Normal Operation: ~15m/s
      • Operation Possible: ~30m/s
      • Non Destruction: ~60m/s
    • Optional Outdoor Installation:  Washer

  • Camera & Lens:
    • Image Sensor:  1/3CMOS
    • Focal Length / F-No.:  f=4.7-94mm / F1.6-3.5
    • Minimum Object Distance:  1m (at Tele End)
    • Angle of View:  W59.4° - T3.0° (1920×1080)
    • Zoom Ratio:  20x
    • Digital Zoom:  12x
    • Focusing System:  AUTO/MANUAL/INF
    • Shutter Speed:  2sec~1/10,000sec
    • Gain:  AUTO/MANU (0~+32dB)
    • White Balance:  AUTO/OUTDOOR/INDOOR/MANU/ATW
    • ND Filter:  OFF/1/32
    • Mounting Options:  Upright/Inverted
    • AE Control:  AUTO/MANU/NIGHT/Shutter priority/Aperture priority
    • ICR:  ON/OFF
