Elite Core Audio EC-HA4X4
Elite Core 4 Channel Headphone Amplifier

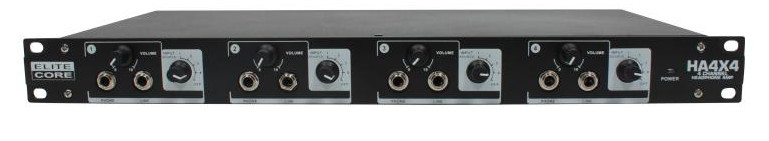

The Elite Core EC-HA4X4 is a 4-channel headphone amplifier.
Learn More
Our Price: $119.99
List Price: $199.99
You save 40%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Elite Core Audio EC-HA4X4
In Stock

Similar Products

The Elite Core EC-HA4X4 is a 4-channel headphone amplifier. With extensive switching functions, extreme efficiency, and unmatched sound quality, the ultra-versatile HA4X4 4 channel multi-purpose headphone amplifier / input distribution system is perfect for the most demanding professional stage and studio applications.

Elite Core Audio EC-HA4X4 Features:

  • 4 independent stereo input channels
  • 4 independent monitoring control sections
  • Input source select switch on each channel
  • 1/4" headphone out and line out on each channel
  • Separate volume control for each channel
  • Link up to 4 HA4X4's together

Elite Core Audio EC-HA4X4 Specifications:

  • Inputs
    • 1/4" Unbalanced
    • 47k Ohms
    • +25dB Peak input level
    • +35dB Gain control range
  • Headphone Power Amp Outputs
    • 300mW Max output level @ 32 Ohms
    • 22 Ohms Output impedance
    • +20dB Max gain
  • Line Distribution Outputs
    • 1/4" Unbalanced/Parallel
  • Power Specs
    • Selectable AC
      • 100-120 VAC
      • 200-240 VAC
    • 50-60 Hz
    • Power Consumption: 11.5VA

To be the first to review this item, click here.
