Product Overview

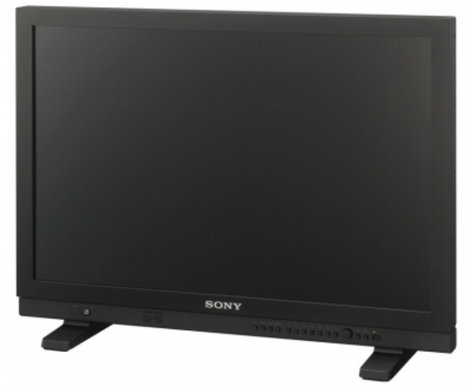

The LMD-A240 from Sony is a lightweight and slim Full HD LMD-A Series monitor that incorporates a WUXGA (1920 x 1200) panel with an excellent cost-performance ratio. This 24" cost-effective and lightweight Full HD high grade LCD monitor is useful for studio and field production use.
The LMD-A240 24" LMD-A Series LCD monitor offers Full HD resolution, along with a lightweight and compact design. There is more than a 12% to 22% reduction in mass, 30% reduction in depth, and more than 25% reduction in power consumption, compared to Sony’s previous models. The LMD-A Series offers the same user-interface design, convenient features, functions and operability as PVM-A Series OLED picture monitors. This consistency between the PVM-A and LMD-A Series brings great user benefits when both types of monitor are used in the same network. Furthermore, LMD-A Series monitors provide versatility for a wide range of user applications both in the studio and in the field. These include DC operation, VESA mount and yoke-mount holes.
Sony LMD-A240 Features:
- Incorporates a 24" WUXGA (1920 x 1200) LCD paneland emulates broadcast standards (ITU-R BT.709, EBU, and SMPTE-C).
- Lightweight and slim design
- More than a 12% to 22% reduction in mass, 30% reduction in depth, and more than 25% reduction in power consumption, compared to Sony's previous models.
- Ideal for studio and field applications
- Features includes DC operation, VESA mount and yoke-mount holes.
- Consistency with PVM-A Series monitors
- Both types of monitor can be operated and controlled in the same way.
Sony LMD-A240 Specifications:
- Picture Performance
- Panel: a-Si TFT Active Matrix LCD
- Picture Size (Diagonal): 24 inches
- Effective Picture Size: 20-1/2" H x 12-7/8" V (518.4 x 324 mm)
- Resolution (H x V): 1920 x 1200 pixels (WUXGA)
- Aspect: 16:10
- Pixel Efficiency: 99.99%
- Colors: Approx. 16.7 million colors
- Normal Scan: 0% scan
- Over Scan: 5% over scan
- Input
- Composite Input: BNC (x1), 1 Vp-p ±3dB, sync negative
- SDI Input: BNC (x2)
- HDMI Input: HDMI (x1) (HDCP correspondence)
- Audio Input: Stereo mini jack (x1), -5 dBu 47 kOhm orhigher
- Parallel Remote: RJ-45 Modular connector 8-pin (x1) (Pin-assignable)
- Serial Remote (LAN): RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
- DC Input: XLR-type 4-pin (male) (x1), DC 12 V to 17 V (output impedance 0.05 ohmor less)
- Output
- Composite Output: BNC (x1), Loop-through, with 75 ohm automatic terminal function
- SDI Output: BNC (x2), output signal amplitude: 800mVp-p ±10%, output impedance: 75 ohm unbalanced
- Audio Monitor Output: Stereo mini jack (x1)
- Speaker (Built-in) Output: 1.0 W (Monaural)
- Headphone Output: Stereo mini jack (x1)
- General
- Power Requirements:
- 100 V to 240 V AC, 0.5 A to 0.2 A,50/60 Hz
- DC 12 V to 17 V, 3.6 A to 2.6 A
- Power Consumption:
- Approx. 51 W (max.)
- Approx. 45 W(average power consumption in the default sattus)
- Inrush Current:
- (1) Maximum possible inrush current at initial switch-on (Voltage changes caused by manual switching): 58A peak, 0.3 A r.m.s. (240V AC)
- (2) Inrush current after a mains interruption of five seconds (Voltage changes caused at zero-crossing): 46A peak, 0.2 A r.m.s. (240V AC)
- Operating Temperature: 0°C to 35°C (Recommended: 20°C to 30°C) / 32°F to 95°F (Recommended: 68°F to 86°F)
- Operating Humidity: 30% to 85% (no condensation)
- Storage/Transport Temperature: -20°C to +60°C / -4°Fto +140°F
- Storage/Transport Humidity: 0% to 90%
- Operating/Storage/Transport Pressure: 700 hPa to 1060hPa
- Approximate Dimensions:
- Without monitor feet: 22-3/8" W x 15-3/4" H x 2-5/8" D (566.6 x 397.8 x 64.4 mm)
- With monitor feet: 22-3/8" W x 16-5/8" H x 6-1/2" D (566.6 x 420.3 x 165 mm)
- Masswith monitor feet: Approx.16 lbs, 12 oz (7.6 kg)
- Supplied Accessories:
- AC power cord (1)
- AC plug holder (1)
- Before Using This Unit(1)
- CD-ROM (1)
- Optional Accessories: SU-561 Monitor Stand
