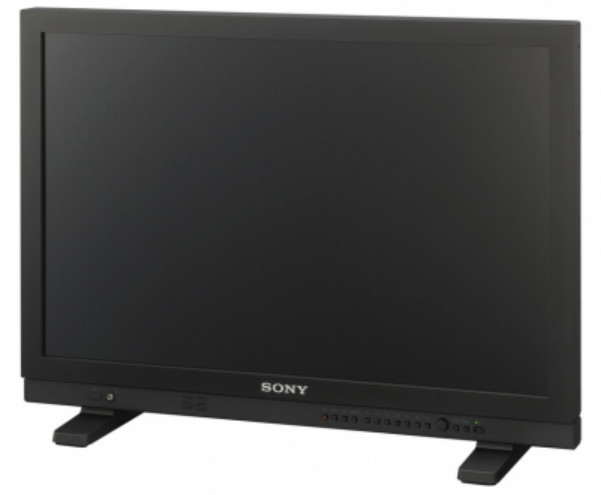

Sony LMD-A220
22" HD LCD Monitor


Our Price: $3,175.20
List Price: $3,600.00
You save 12%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

The LMD-A220 from Sony is a lightweight and slim Full HD (1920 x 1080) LMD-A Series monitor LCD panel with an excellent cost-performance ratio. This 22" cost-effective and lightweight Full HD high grade LCD monitor is useful for studio and field production use.

The LMD-A220 22-inch LMD-A Series LCD monitor offers Full HD resolution, along with a lightweight and compact design. There is more than a 12% to 22% reduction in mass, 30% reduction in depth, and more than 25% reduction in power consumption, compared to Sony’s previous models. The LMD-A Series offers the same user-interface design, convenient features, functions and operability as PVM-A Series OLED picture monitors. This consistency between the PVM-A and LMD-A Series brings great user benefits when both types of monitor are used in the same network. Furthermore, LMD-A Series monitors provide versatility for a wide range of user applications both in the studio and in the field. These include DC operation, VESA mount and yoke-mount holes.

Sony LMD-A220 Features:

  • Full HD picture monitor with excellentcost-performance ratio
  • Incorporates a 22-inch Full HD (1920 x 1080) LCD paneland emulates broadcast standards (ITU-R BT.709, EBU, and SMPTE-C).
  • Lightweight and slim design
  • More than a 12% to 22% reduction in mass, 30% reduction in depth, and more than 25% reduction in power consumption, compared to Sony’s previous models.
  • Ideal for studio and field applications
  • Features includes DC operation, VESA mount andyoke-mount holes.
  • Consistency with PVM-A Series monitors
  • Both types of monitor can be operated and controlled in the same way.

Sony LMD-A220 Specifications:

Picture Performance

  • Panel: a-Si TFT Active Matrix LCD
  • Picture Size (Diagonal): 21.5 inches
  • Effective Picture Size (H x V): 476.1 x 267.8 mm / 18 3/4 x 10 5/8 inches
  • Resolution (H x V): 1920 x 1080 pixels (Full HD)
  • Aspect: 16:9
  • Pixel Efficiency: 99.99%
  • Colors: Approx. 16.7 million colors
  • Normal Scan: 0% scan
  • Over Scan: 5% over scan


  • Composite Input: BNC (x1), 1 Vp-p ±3dB, sync negative
  • SDI Input: BNC (x2)
  • HDMI Input: HDMI (x1) (HDCP correspondence)
  • Audio Input: Stereo mini jack (x1), -5 dBu 47 k ohm or higher
  • Parallel Remote: RJ-45 Modular connector 8-pin (x1) (Pin-assignable)
  • Serial Remote (LAN): RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
    DCInput: XLR-type 4-pin (male) (x1), DC 12 V to 17 V (output impedance 0.05 ohm or less)


  • Composite Output: BNC (x1), Loop-through, with 75 ohm automatic terminal function
  • SDI Output: BNC (x2), output signal amplitude: 800mVp-p ±10%, output impedance: 75 ohm unbalanced
  • Audio Monitor Output: Stereo mini jack (x1)
  • Speaker (Built-in) Output: 1.0 W (Monaural)
  • Headphone Output: Stereo mini jack (x1)


  • Power Requirements:
     -  100 V to 240 V AC, 0.5 A to 0.2 A, 50/60 Hz
      -  DC 12 V to 17 V, 3.6 A to 2.6 A
  • Power Consumption:
      -  Approx. 47 W (max.)
      -  Approx. 43 W(average power consumption in the default sattus)
  • Inrush Current:
      -  (1) Maximum possible inrushcurrent at initial switch-on (Voltage changes caused by manual switching): 57A peak, 0.3 A r.m.s. (240V AC)
      -  (2) Inrush current after a mainsinterruption of five seconds (Voltage changes caused at zero-crossing): 46 Apeak, 0.2 A r.m.s. (240V AC)
  • Operating Temperature: 0°C to 35°C (Recommended: 20°C to 30°C) / 32°F to 95°F (Recommended: 68°F to 86°F)
  • Operating Humidity: 30% to 85% (no condensation)
  • Storage/Transport Temperature: -20°C to +60°C / -4°F to +140°F
  • Storage/Transport Humidity: 0% to 90%
  • Operating/Storage/Transport Pressure: 700 hPa to 1060hPa
  • Dimensions (W x H x D) *1:
      -  517.8 x 338.0 x 67.2 mm (without monitorfeet)
      -  517.8 x 360.5 x 165.0 mm (with monitor feet)
     -  20 1/2 x 13 3/8 x 2 3/4 inches (without monitor feet)
     -  20 1/2 x 14 1/4 x 6 1/2 inches (with monitor feet)
  • Mass:
      -  Approx. 5.4 kg (with monitorfeet)
      -  Approx. 11 lb 14 oz (with monitor feet)
  • Supplied Accessories:
      -  AC power cord (1)
      -  AC plug holder (1)
      -  Before Using This Unit(1)
      -  CD-ROM (1)
  • Optional Accessories: SU-561 Monitor Stand
  • MB-L22

NOTE: *Value for dimensions are approximate.
