Product Overview

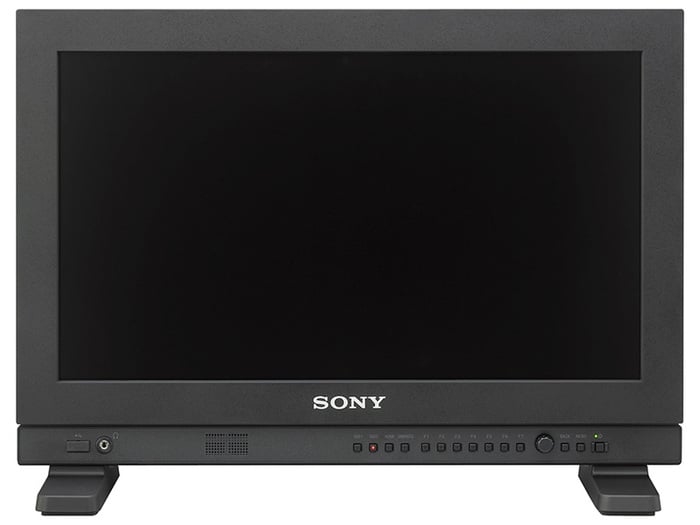

The LMD-A170 from Sony is a lightweight and slim Full HD (1920 x 1080) LMD-A Series monitor with an excellent cost-performance ratio. This 17" cost-effective and lightweight Full HD high grade LCD monitor is useful for studio and field production use.
The LMD-A170 17-inch LMD-A Series LCD monitor offers Full HD resolution, along with a lightweight and compact design. There is more than a 12% to 22% reduction in mass, 30% reduction in depth, and more than 25% reduction in power consumption, compared to Sony’s previous models. The LMD-A Series offers the same user-interface design, convenient features, functions and operability as PVM-A Series OLED picture monitors. This consistency between the PVM-A and LMD-A Series brings great user benefits when both types of monitor are used in the same network. Furthermore, LMD-A Series monitors provide versatility for a wide range of user applications both in the studio and in the field. These include DC operation, VESA mount and yoke-mount holes.
Sony LMD-A170 Features:
- Full HD picture monitor with excellent cost-performance ratio
- Incorporates a 17-inch Full HD (1920 x 1080) LCD panel and emulates broadcast standards (ITU-R BT.709, EBU, and SMPTE-C).
- Lightweight and slim design
- More than a 12% to 22% reduction in mass, 30% reduction in depth, and more than 25% reduction in power consumption, compared to Sony’s previous models.
- Ideal for studio and field applications
- Features includes DC operation, VESA mount and yoke-mount holes.
- Consistency with PVM-A Series monitors
- Both types of monitor can be operated and controlled in the same way.
Sony LMD-A170 Specifications:
- Picture Performance
- Panel: a-Si TFT Active Matrix LCD
- Picture Size (Diagonal): 16.5 inches
- Effective Picture Size (H x V): 365.8 x 205.7 mm / 14 1/2 x 8 1/8 inches
- Resolution (H x V): 1920 x 1080 pixels (Full HD)
- Aspect: 16:9
- Pixel Efficiency: 99.99%
- Colors: Approx. 16.7 million colors
- Viewing Angle (Panel Specification): 89°/89°/89°/89° (typical)(up/down/left/right contrast > 10:1)
- Normal Scan: 0% scan
- Over Scan: 5% over scan
- Input
- Composite Input: BNC (x1), 1 Vp-p ±3dB, sync negative
- SDI Input: BNC (x2)
- HDMI Input: HDMI (x1) (HDCP correspondence)
- Audio Input: Stereo mini jack (x1), -5 dBu 47 kO orhigher
- Parallel Remote: RJ-45 Modular connector 8-pin (x1) (Pin-assignable)
- Serial Remote (LAN): RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
- Output
- Composite Output: BNC (x1), Loop-through, with 75 ohm automatic terminal function
- SDI Output: BNC (x2), output signal amplitude: 800mVp-p ±10%, output impedance: 75 ohm unbalanced
- Audio Monitor Output: Stereo mini jack (x1)
- Speaker (Built-in) Output: 1.0 W (Monaural)
- Headphone Output: Stereo mini jack (x1)
- General
- Power Requirements:
- 100 V to 240 V AC, 0.5 A to 0.2 A, 50/60 Hz
- DC 12 V to 17 V, 3.6 A to 2.6 A
- Power Consumption:
- Approx. 49 W (max.)
- Approx. 42 W(average power consumption in the default sattus)
- Inrush Current:
- (1) Maximum possible inrush current at initial switch-on (Voltage changes caused by manual switching): 60 A peak, 0.3 A r.m.s. (240V AC)
- (2) Inrush current after a mains interruption of five seconds (Voltage changes caused at zero-crossing): 48 A peak, 0.2 A r.m.s. (240V AC)
- Operating Temperature: 0°C to 35°C (Recommended: 20°Cto 30°C) / 32°F to 95°F (Recommended: 68°F to 86°F)
- Operating Humidity: 30% to 85% (no condensation)
- Storage/Transport Temperature: -20°C to +60°C / -4°Fto +140°F
- Storage/Transport Humidity: 0% to 90%
- Operating/Storage/Transport Pressure: 700 hPa to 1060hPa
- Dimensions (W x H x D) *1:
- 420.2 x 288.8 x 70.0 mm (without monitor feet)
- 420.2 x 311.3 x 165.0 mm (with monitor feet)
- 16 5/8 x 11 3/8 x 2 7/8 inches (without monitor feet)
- 16 5/8 x 12 3/8 x 6 1/2 inches (with monitor feet)
- Mass:
- Approx. 4.9 kg (with monitor feet)
- Approx. 10 lb 13 oz (with monitor feet)
- Supplied Accessories:
- AC power cord (1)
- AC plug holder (1)
- Before Using This Unit(1)
- CD-ROM (1)
- Optional Accessories: SU-561 Monitor Stand, SU-532 Monitor Stand, BKM-PL17, MB-L17
Note:
*Value for dimensions are approximate.
