Juice Goose CQ-1
15A Qiwi Power Control Unit with Remote Control Capability

OUR PART #:  CQ-1

The CQ-1, “Qiwi”, is a great in-wall extension of the CQ product series. It functions just like the other CQ models with plug-and-play simplicity.
Learn More
Selected Model Price: $193.00
List Price: $227.00
Save up to 15%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Juice Goose CQ-1
Select model: (shipping times are approximate)
Qty:

Similar Products

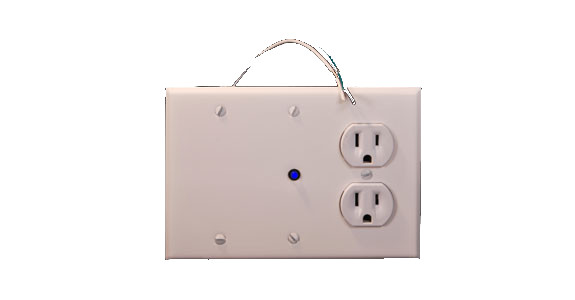

The CQ-1, “Qiwi”, is a great in-wall extension of the CQ product series. It functions just like the other CQ models with plug-and-play simplicity. The Qiwi fits in a three gang box. The fifteen amp duplex turns on with a single sequence event. A utility box is supplied with the unit. But, any standard three gang enclosure is sufficient. Like other CQ models the Qiwi has a sequence signal line input and output port to allow it to be daisy chained with any number of other CQ devices.

With the Qiwi, AV installations can be designed without racked equipment and controlled with a simple wall mounted key switch. Here is an example of a sound system using a mobile FOH installation and powered speakers. One CQ-1 module controls the mix location. Two more modules control the powered speaker clusters. Click here to view this installation design.

The increased popularity of powered speakers has created a need for distributed power control. Qiwi fills that need with an aesthetic and economical option for new or retrofit installation. The metal faceplates are available in black, white and ivory.

The CQ 1 consists of a front plate, duplex receptacle (NEMA 5-15R) and power control circuitry all installed in a metal enclosure which fits in a standard two gang spacing. A third gang space is required for power line connection. For installation convenience, the CQ 1 ships with a plastic, three gang wall enclosure. Any standard sized, approved three gang enclosure can be substituted as needed.

After main AC power is attached to the CQ 1, use the eight wire RJ-45 style CQ signal cables connected to the Input and Output connectors on the CQ 1 enclosure to link the CQ 1 to any number or configuration of other CQ Series products. Then fasten the assembly into the three gang wall box. That's it!

With a standard two-gang design, the Qiwi fits in a floor box with a minimum eight inch depth. So, the plug-and-play Qiwi can provide a link between any equipment powered from the floor box and the rest of an audio system sequenced with the Juice Goose CQ Series modules.

Juice Goose CQ-1 Specifications:

  • Chassis: Metal three gang front panel. Two gang back box. (Three gang wall box is also provided but may be substituted if desired.)
  • Dimensions: 4.5”H x 6.5”W x 3.75”D
  • Weight: 1 lb
  • Current Rating: 15 A
  • Number of Sequence Events: One
  • Power Input: Hardwire
  • Power Output: Single NEMA 5-15R
  • Input Voltage: US standard (120 VAC @60Hz)
  • Signal Connections (Input and Output): RJ-45
