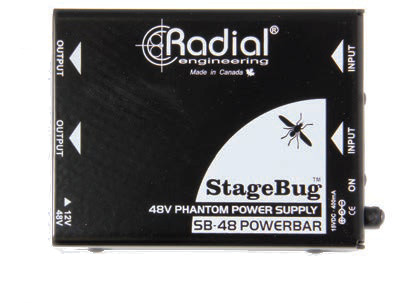

Radial Engineering SB-48 Phantom 2-Channel 48V Phantom Power Supply for Mics and Active DI Boxes

The StageBug SB-48 Power Bar, a dual-channel 12V/48V phantom power generator, is designed to power microphones and direct boxes when phantom power may not be at hand. You simply plug the SB-48’s 15VDC power supply in the wall and it converts the voltage to either 12V or 48V phantom power, just like a mixing console or studio mic preamp.

The SB-48 employs a non-radiating charge pump circuit to create a stable, ripple-free power supply for your favorite active direct boxes and condenser mics. Now you can always count on having phantom power, even if your venues don't always supply reliable phantom power. To be confident your equipment will be powered safely every time, get the StageBug SB-48!

Features

• Provides 48V or 12V phantom power for active direct boxes and condenser and specialty microphones
• Dual XLR inputs and outputs
• External 15V power supply included

Specifications

• Circuit Type: Non-radiating phantom power supply
• # of Channels: 2
• XLR Connectors: AES standard pin-1 Ground, pin-2 (+), pin-3 (-)
• Phantom Output: Switchable +48/+12 volts DC
• Power Supply: 15VDC / 400mA external supply included
