Product Overview

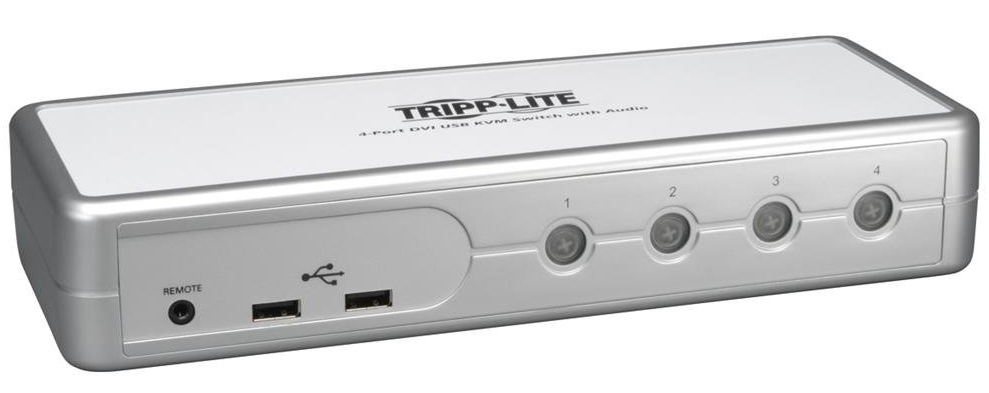

The B004-DUA4-K-R from Tripp Lite is a 4-Port DVI/USB KVM Switch with audio and USB 2.0 peripheral sharing. It allows you to access, control, boot and reboot four computers from a single USB keyboard, USB mouse, and monitor. Switching between connected computers is quick and simple using keyboard hotkeys or pushbuttons. An independent audio/mic and USB peripheral switching function allows for an uninterrupted experience. A computer can be printing on a printer connected to one of the USB 2.0 peripheral ports, while you listen to audio from and access another computer; all at the same time.
The B004-DUA4-K-R uses DVI-I technology, allowing for the transmission of a digital (up to 1920 x 1200) or analog (up to 2048 x 1536) signal. A DVI to VGA adapter, such as Tripp Lite's P126-000, is required for conversion to an analog monitor. Whichever you use, full time DDC support provides the necessary EDID information required for optimal video performance on Windows 7 and other operating systems. Compatible with all major operating systems.
Typical applications for the Tripp Lite B004-DUA4-K-R include using this KVM switch when accessing four multimedia computers from a single USB keyboard, USB mouse and monitor.
Includes:
- B004-DUA4-K-R
- (x4) 6 ft. DVI-I + 3.5mm Audio Cable kits
- (x4) 6 ft. USB A-B device cables
- Owner's Manual
- External Power Supply (Input: 100-240V, 50/60Hz, 0.4A Output: 5V, 2A)
Tripp Lite B004-DUA4-K-R Features:
- Fast, easy switching via keyboard hotkeys orpushbuttons
- Plug-and-play setup - no software required
- Hot-swap capability allows easy addition or removalof computers without powering down the switch or other computers
- Speaker and microphone connections allow for thesharing of audio components between systems
- Supports 2-Channel Stereo Audio
- Independent audio/mic and USB peripheral switchingfunction allows for an uninterrupted experience. A computer can be printing ona printer connected to one of the USB 2.0 peripheral ports, while you listento audio from and access another computer; all at the same time.
- Uses DVI-I technology, allowing for the transmissionof a digital (up to 1920 x 1200) or analog (up to 2048 x 1536) signal. A DVIto VGA adapter, such as Tripp Lite's P126-000, is required for conversion toan analog monitor.
- To connect to a HDMI monitor, a DVI to HDMI adapter,such as Tripp Lite's P132-000, is required. (Audio is not supported whenconverting from DVI to HDMI)
- Full time DDC support provides the necessary EDIDinformation for optimal video performance on Windows 7 and other operatingsystems
- Supports Microsoft® IntelliMouse® and the scrollingwheel on most mice
- (x4) 6ft USB cables and (x4) 6ft DVI + Audio KVMcable kits included
- Compatible with all major operating systems
Tripp Lite B004-DUA4-K-R Specifications:
- Overview
- # Of Users: 1
- AC Adapter:
- Port Control: Push Buttons, Hotkeys
- Max CPU: 4
- PC/Server: DVI; USB
- IP Remote Access: No
- Physical
- Color: Silver
- Style: Desktop
- Connections
- Ports: 4
- Included KVM Cable (Equipment Side) - Connector 1:DVI-I Male
- Included KVM Cable (Equipment Side) - Connector 2:(x2) 3.5mm (Male)
- Included KVM Cable (Equipment Side) - Connector 3:USB A (Male)
- Local Console Ports - Port 1: DVI-I (Female)
- Local Console Ports - Port 2: (x2) USB A (Female)
- Local Console Ports - Port 3: (x2) 3.5mm (Female)
- Certifications: FCC, CE, RoHS Compliant
- Product Warranty Period (Worldwide): 1-year limited warranty
- System Requirements:
- KVM Console: A DVI monitor, USB keyboard, and USBmouse
- Computers: DVI-I port (P118-000 DVI-I to DVI-DAdapter is required for computers with DVI-D ports), and USB Port
- Audio (Optional): A microphone and speakers with3.5mm Mini-Stereo connectors and a computer with 3.5mm Mini-Stereo ports
- Compatible with all major operating systems
