Audio-Technica ATW-1501
System 10 Stompbox Digital Wireless Guitar System

OUR PART #:  ATW-1501

Audio-Technica's System 10 Stompbox digital high-fidelity guitar wireless system combines the advanced 24-bit operation, easy setup and clear...
Learn More
Our Price: $349.95
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audio-Technica ATW-1501
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

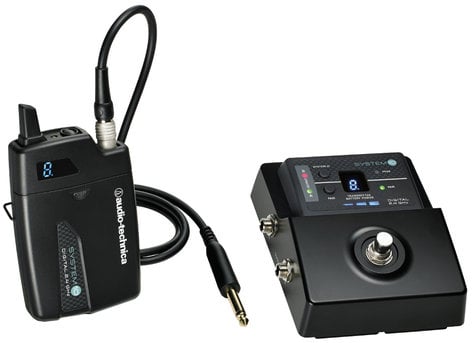

Audio-Technica's System 10 Stompbox digital high-fidelity guitar wireless system combines the advanced 24-bit operation, easy setup and clear, natural sound quality of other System 10 configurations with unique functionality for guitarists, bassists and other instrumentalists.  Operating in the 2.4 GHz range, far from TV and DTV interference, the System 10 Stompbox offers a rugged, metal, pedal board-mountable receiver with foot switch, two switched TRS balanced 1/4" outputs and an output mode selector.  With the tap of a foot, musicians can toggle between outputs (e.g., for switching amps) or mute and unmute one output without muting the other (e.g., for convenient tuning).  And a single receiver can be paired with up to eight UniPak® body-pack transmitters, allowing users to easily switch between instruments without having to move a body-pack from one instrument to the next.

System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space.  Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication.  Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference.  Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.

Audio-Technica ATW-1501 Includes:

  • 1x ATW-R1500 Stompbox receiver
  • 1x ATW-T1001 UniPak body-pack transmitter with 1xAT-GcW guitar cable
  • Hook & loop strips for adding ATW-R1500 receiver to an effects pedalboard.

The ATW-R1500 is a digital receiver with sturdy, metal-body construction, easy-to-read digital ID and transmitter battery level displays, and AF Peak and Pair indicator lights.

Audio-Technica ATW-1501 Features:

  • Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
  • 2.4 GHz range – completely free from TV interference
  • Three levels of diversity assurance: frequency, time, & space
  • Two switched TRS balanced 1/4" output jacks
  • Output mode selector and foot switch to toggle between outputs or mute/unmute Output A without muting Output B (e.g., for use with tuner)
  • Multi-pairing function to link a single receiver withup to eight body-pack transmitters
  • Transmitter battery level display on receiver
  • Automatic frequency selection for seamless, interference-free operation
  • Extremely easy operation with instantaneous channel selection, sync, and setup
  • State-of-the-art digital receiver housed in a strong, metal, stompbox-style body for reliable performance and pedal board mounting
  • Included hook & loop strips for adding receiver to effects pedal board
  • Universal (center + or -) 9v–12v DC input

Audio-Technica ATW-1501 Specifications:

  • Overall System Specifications:
    • Operating Frequencies  2.4 GHz ISM band
    • Dynamic Range: >109 dB (A-weighted), typical
    • Total Harmonic Distortion : <0.05% typical
    • Operating Range: 18.3 m (60') radius, 36.6 m (120') diameter typical (Open range environment with no interfering signals)
    • Operating Temperature Range: 0° C to +40° C (32° F to 104° F) (Battery performance may be reduced at very low temperatures)
    • Frequency Response: 20 Hz to 20 kHz (Depending on microphone type)
  • ATW-R1500 Stompbox Receiver Specifications:
    • Receiving System: Diversity (frequency/time/space)
    • Maximum Output Level: 1/4" (6.3 mm), TRS balanced: +12 dBV
    • Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
    • Dimensions: 3.98" W x 1.73" H x 5.12" D (101 x 44 x 130 mm)
    • Net Weight: 19.9 oz. (565 g)
    • Accessories Included  Power supply, hook & loop fastener x2
  • ATW-T1001 UniPak Body-Pack TransmitterSpecifications:
    • RF Power Output: 10 mW
    • Spurious Emissions: Following federal and national regulations
    • Input Connections: Four-pin Locking Connector
      • Pin 1: GND
      • Pin 2: INST INPUT
      • Pin 3: MIC INPUT
      • Pin 4: DC BIAS +9V
    • Batteries: 2x 1.5V AA (not included)
    • Battery Life: >7 hours (alkaline) (Depending on battery type and use pattern)
    • Dimensions: 2.76" W x 4.21" H x 0.98" D (70.2 x 107 x 24.9 mm)
    • Net Weight: 3.5 oz (100 g) without batteries
    • Included Accessory: AT-GcW Guitar Input Cable
