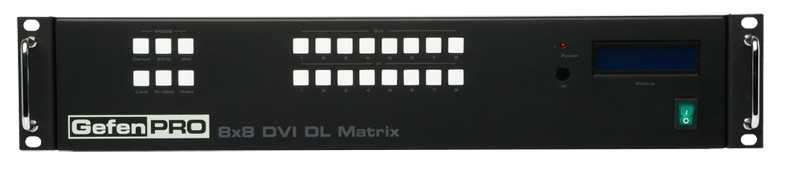

Gefen Inc GEF-DVI-848DL-PB
8 x 8 DVI Matrix with Front Panel Push Button Control


Call for price! Not available online.
List Price: $6,499.00

Related Products

The GefenPRO model GEF-DVI-848DL-PB 8x8 DVI Dual Link Matrix with Push Button Controls provides a professional-grade solution to route up to eight DVI sources to any eight DVI displays. Dual Link resolutions up to 3840x2400 are supported. The front panel display shows the current routing status and the front panel push buttons are used to manage local source routing. This Matrix can be controlled using front panel push buttons, the included IR Remote control, IP control, an RS-232 port for switching automation, or the Gefen Keyboard Controller software.

Connect up to eight DVI source devices to the GefenPRO 8x8 DVI Dual Link Matrix with Push Button Controls using the supplied DVI cables. Connect up to eight monitors to the DVI outputs. Plug in the power cord and apply power to the Matrix. The DVI sources will be routed according to the current routing selection.

NOTE: The GefenPRO 8x8 DVI Dual Link Matrix with Push Button Controls only supports digital DVI (DVI-D).

GefenPRO GEF-DVI-848DL-PB Features:

  • Supports 1080p Full HD at 120Hz and dual-link resolutions up to 3840 x 2400
  • Advanced EDID management permits upload of custom
  • Serial RS-232 interface for remote control via a computer
  • Status LCD (shows routing status)
  • Front panel control buttons for local switching
  • IR Remote Control
  • Built-in IR Extender
  • IP Control
  • Output masking command
  • Grounding Pin
  • Internal Power Supply
  • Standby mode
  • Supports DDWG standards for DVI
  • Power ON / OFF switch
  • Rack-mountable

GefenPRO GEF-DVI-848DL-PB Specifications:

  • Maximum Pixel Clock: 2 x 165MHz
  • Input Video Signal: 1.2V p-p
  • Input DDC Signal: 5V p-p (TTL)
  • Video Input Connectors: (8) DVI-I 29-pin, female (digital only)
  • Video Output Connectors: (8) DVI-I 29-pin, female (digital only)
  • IR Extender: (1) 3.5 mm mini-stereo jack
  • RS-232 Control: (1) DB-9, female
  • IP Control: RJ-45, shielded
  • Power Supply: 100 - 240V AC (Internal)
  • Power Consumption: 90W (max.)
  • Operating Temperature: +32 to +104 °F (0 to +40 °C)
  • Rack size: 2U (rack ears included)
  • Dimensions (W x H x D): 17.25" x 3.5" x 11.8" (438mm x 89mm x 300mm)
  • Shipping Weight: 20 lbs (9.1 kg)
  • Package Includes:
    • (1) GefenPRO 8x8 DVI Dual Link Matrix with Push Button Controls (GEF-DVI-848DL-PB)
    • (8) 6 ft. DVI Dual Link Cables (M-M)(CAB-DVIC-DL-06MM)
    • (1) IR Remote Control Unit (RMT-8IRN)
    • (1) AC Power Cord (CAB-POWERCORD-US)
    • (1) Quick-Start Guide (QSG-DVI-848DL-PB)
