AMX FG1010-310

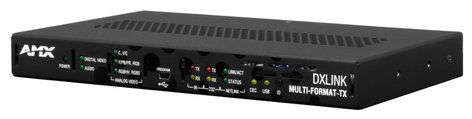

DXLink Multi-Format Transmitter Module

OUR PART #:  FG1010-310

AMX's FG1010-310 DXLink™ Multi-Format Transmitter sends analog and digital audio and video signals including HDMI with HDCP, control...
Learn More
Our Price: $866.09
List Price: $1,300.00
You save 33%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AMX FG1010-310
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

AMX's FG1010-310 DXLink™ Multi-Format Transmitter sends analog and digital audio and video signals including HDMI with HDCP, control, and Ethernet up to 100 meters over one standard twisted pair cable. Use the DXLink™ Transmitter with the Enova DGX DXLink™ Twisted Pair Input Boards or compatible Enova DVX All-In-One Presentation Switchers. The DXLink Transmitter can also be used as a point-to-point solution with a DXLink HDMI Receiver. The DXLink Transmitter can be powered from any DXLink power source such as the Enova DGX DXLink Twisted Pair Input Board, Enova DVX-3155HD, DVX-3156HD, PS-POE-AT-TC or PDXL-2 (all sold separately). It also includes a local power supply. The transmitter features both a multi-format analog port to support legacy devices and an HDMI port to support newer digital devices.

COMMON APPLICATIONS
The DXLink™ Multi-Format Transmitter sends analog or digital video, audio and control to a remote display across the room, on the other side of the house or to a classroom down the hall. The transmitter's built-in control ports can be used to control a source and the ICSLan port provides an IP access point.

AMX FG1010-310 Features:

  • Only One Cable– Send audio and video while passing control, Ethernet, USB signals and power
  • Native NetLinx® Control Everywhere – Control connected source and display devices using the built-in IR and RS-232 ports
  • Send HDMI signals up to 100 meters – Extend the reach of the HDMI signals far beyond the capabilities of typical HDMI cabling
  • Multi-Format Analog Port and HDMI Port – Supports legacy analog signals - RGBHV, Component, S-Video, and Composite, and digital HDMI/HDCP, DisplayPort and DVI signals
  • Standard Twisted Pair Cable – Save time and effort in installation by leveraging cost effective twisted pair cable, see the "Cabling for Success with DXLink whitepaper" for more details
  • Power Remotely -Power over DXLink* is carried over one twisted pair cable to simplify installation when used with Enova DGX, Enova DVX, PS-POE-AT-TC orPDXL-2
  • 3D Support -Pass through latest video formats including 3D and Deep Color
  • Surround Sound Support - Pass through high definition surround sound including Dolby Digital, DTS and up to 8-channel L-PCM at 32 kHz, 44.1 kHz, 48 kHz, 96 kHz,192kHz
  • Ethernet Connectivity - Provides ICSLan Ethernet support at the Transmitter - add Ethernet connectivity to a Touch Panel, plug in a WAP or stream IP audio/video to a Ethernet enabled source device
  • HDCP compliance

* Power must be supplied by one of the following DXLink Power sourcing devices: Enova DGX 8/16/32/64 Digital Media Switcher (with a DXLink Twisted Pair Input Board installed), Compatible Enova DVX All-In-One Presentation Switcher (3155HD, 3156HD or 2155HD), PS-POE-AT-TC High Power PoE Injector orPDXL-2 Power over DXLink Controller. AMX only supports the use of these approved Power over DXLink solutions. Other third party power supplies or non-compatible standard PoE solutions may damage the DXLink equipment.

AMX FG1010-310 Specifications:

GENERAL

  • Dimensions (HWD): 1" x 8.75" x 5.2" (2.54 cm x 22.12 cm x 13.08 cm)
  • Weight: Approx. 1.1 lb (0.50 kg)
  • Shipping Weight: Approx. 2.20 lb (1.00 kg)
  • Mounting Options: Compatible with all V Style versatile mounting options including rack, surface or pole
  • Advanced Configuration Interface: USB Mini-B Connector
  • Transport Layer Throughput (Max): 10.2 Gbps
  • Twisted Pair Cable Type: Shielded Cat6, Cat6A and Cat7, DXLink twisted pair cable runs for DXLink equipment shall only be run within a common building. For more details and helpful cabling information, reference the white paper titled "Cabling for Success with DXLink", or contact your Full Compass Representative
  • Twisted Pair Cable Length:  Up to 328 ft (100 m)
  • MTBF: 381,000 hours
  • Approvals:
    • CE EN 55022, EN 55024 and EN 60950-1
    • IEC 60950-1
    • FCC
    • UL 60950-1
    • cULRoHS / WEEE compliant
  • Included Accessories: Each HDMI RX ships with a desktop power supply(ENERGY STAR® qualified) with power cord

ACTIVE POWER REQUREMENTS

  • AC Power:
    • 100-240 VAC single phase, 50-60 Hz
    • 0.6 A @ 115 VAC max
  • Power Consumption (Max):
    • Local 12V supplied: 10 W
    • Power over DXLink supplied: 10 W
  • DXLink Power:
    • Power can also be supplied by a DXLink Power sourcing device such as:
      • Enova DGX 8/16/32/64 Digital Media Switcher (with a DXLink Twisted Pair Input Board installed)*
      • Compatible Enova DVX All-In-One Presentation Switcher (3155HD, 3156HD or 2155HD)*
      • PS-POE-AT-TC High Power PoE Injector*
      • PDXL-2 Power over DXLink Controller*

*Sold separately, contact your Full Compass Sales Representative for more information

When installed in conjunction with an Enova DGX use the Enova DGX Configuration Tool located at AMX.com/enova to determine the power requirements of the configuration

AMX only supports the use of these approved Power over DXLink solutions. Other third party power supplies or non-compatible standard PoE solutions may damage the DXLink equipment. Contact your Full Compass Sales Representative for more information.

  • Power Connector:  2.1 mm DC Power Jack (for optional local DC power)
    DXLink Power connector included on DXLink connection
  • Power Consumption (Max):  Power over DXLink supplied: 7W

POWER SUPPLY

  • External, Included:  Each Multi-Format TX ships with a desktop power supply (ENERGY STAR® qualified) with power cord
  • External, Optional:
    • Power can also be supplied by a DXLink Power sourcing device such as:
    • Enova DGX 8/16/32/64 Digital Media Switcher (with a DXLink Twisted Pair Input Board installed)*
    • Compatible Enova DVX All-In-One Presentation Switcher (3155HD, 3156HD or 2155HD)*
    • PS-POE-AT-TC High Power PoE Injector*
    • PDXL-2 Power over DXLink Controller*

*Sold separately, contact your Sales Representative

When installed in conjunction with an Enova DGX use the Enova DGX Configuration Tool located at AMX.com/enova to determine the power requirements of the configuration

AMX only supports the use of these approved Power over DXLink solutions. Other third party power supplies or non-compatible standard PoE solutions may damage the DXLink equipment. Contact your Full Compass Sales Representative

ENVIRONMENTAL

  • Operational Temperature:  32° to 104° F (0° to 40° C)
  • Storage Temperature:  -22° to 158° F (-30° to 70° C)
  • Humidity:  0 to 90% non-condensing


FRONT CONNECTORS

  • Advanced Configuration Interface:  USB Mini-B Connector

BACK CONNECTORS

  • Video Input:  HD-15 (RGBHV, RGBs, RGsB, Y/Pb/Pr, Y/c / S-Video, composite– breakout cable is required for non RGBHV formats)
  • HDMI Input:  HDMI Type A Female
  • Analog Stereo Input:  3.5mm Mini-Stereo Jack
  • S/PDIF Digital Audio Input:  RCA Jack
  • ICSLAN/Ethernet Port:
    • RJ-45 Connector
    • TCP/IP Port (ICSLAN 10/100)
  • Serial:
    • 3.5mm Pluggable Phoenix Terminal Block
    • Bidirectional RS-232
    • Standard NetLinx Baudrate 1200-115k
    • Parity support Odd/Even/None
  • IR RX:
    • 3.5mm Mini-Stereo Jack
    • Port for IR03 Receiver (Optional)
  • IR TX:
    • 3.5mm Pluggable Phoenix Terminal Block
    • Port for IR03 Receiver (Optional)
  • USB (HID) Keyboard & Mouse*:  USB Type B Connector
  • DXLink Output:  RJ-45
  • Local Power:  2.1 mm DC Power Jack

* This feature will be available upon release of a future firmware update Contact your Full Compass Sales Professional for more information.

CONTROLS & INDICATORS

  • ID Pushbutton:
    • Toggle between DHCP and static IP addressing
    • places system in NetLinx Device ID assignment mode
    • Reset the factory default settings
    • Restore the factory firmware image
  • Power Indicator:  Green indicates whether or not the module is powered on
  • Digital Video Indicator:  Green LED indicates the presence of video and audio signals through the module
  • Audio Indicator:  Green LED indicates the presence of audio signals through the module
  • Analog Video Indicator:  3 Green LEDs, 1 lights to indicate the presence of the type of analog video through the Multi-Format TX (composite, Y/c; Y/Pb/Pr or RGB; RGBHV or RGBS)
  • IR TX Indicator:  Red LED lights during the transmission of IR data via the rear IR port
  • IR RX Indicator:  Yellow LED lights during the receipt of IR data via the rear IR port
  • RS-232 TX Indicator:  Red LED shows serial transmit (TX) data activity
  • RS-232 RX Indicator:  Yellow LED shows serial receive (RX) data activity
  • LINK/ACT:  Green LED lights when the Ethernet cable is connected and an active link is established. This LED also blinks when receiving Ethernet data packets
  • Status:  Green LED lights when the Controller is programmed and communicating properly
  • CEC Indicator:  Not currently supported
  • USB Indicator:  Not currently supported

HDMI

  • Compatible Formats: HDMI, HDCP, DVI
  • Input Signal Type:
    • HDMI
    • DVI-D (Single Link With Cable Adapter)
    • DisplayPort ++ (Input Only, With HDMI Cable Adapter)
  • Input Connector: HDMI Type A Female
  • Propagation Delay (Typ): 5 us
  • Input Voltage (Nominal): 1.0 Vpp Differential
  • Input Re-clocking (CDR): Yes
  • Input Equalization: Yes, Adaptive
  • Data Rate (Max):
    • 4.95 Gbps / 6.75 Gbps
    • 6.75 Gbps supported when the HDMI DXLink
    • RX Scaler is in Bypass mode and format is 1080p60 or less
  • Pixel Clock (Max):
    • 165 MHz / 225 MHz
    • 225 MHz supported when the HDMI DXLink
    • RX Scaler is in Bypass mode and format is 1080p60 or less
  • Progressive Resolution Support:  480p up to1920x1200 @ 60 Hz (including but not limited to those resolutions shown in the DXLink Twisted Pair Transmitters/Receiver Instruction Manual
  • Interlaced Resolution Support:  480i, 576i, 1080i (including but not limited to those resolutions shown in the DXLink Twisted Pair Transmitters/Receiver Instruction Manual
    Note-Reminder: Interlace video supported into the Transmitter, progressive only supported out of the Receiver unless in non-scaling Bypass
  • Deep Color Support:
    • 24-bit, 30-bit, 36-bit
    • 30-bit and 36-bit supported when the HDMI DXLink
    • RX Scaler is in Bypass mode and format is 1080p60 or less
  • Color Space Support:
    • RGB 4:4:4
    • YCbCr 4:4:4 and 4:2:2
      (Input signal support for YCbCr 4:4:4 and 4:2:2, output color-space is converted to RGB 4:4:4)
  • 3D Format Support: Yes (HDMI Primary Formats)
    • Frame Packing 1080p up to 24Hz
    • Frame Packing 720p up to 50/60Hz
    • Frame Packing 1080i up to 50/60Hz
    • Top-Bottom 1080p up to 24Hz
    • Top-Bottom 720p up to 50/60Hz
    • Side-by-Side Half 1080p up to 50/60Hz
    • Side-by-Side Half 720p up to 50/60Hz
    • 3D supported when the HDMI DXLink RX Scaler is in Bypass mode and format is 1080p60 or less
  • Audio Format Support:
    • Dolby TrueHD
    • Dolby Digital
    • DTS-HD Master Audio
    • DTS
    • 2 CH through 8 CH L-PCM Dolby Digital and DTS support up to 48kHz, 5.1 channels
  • Audio Resolution: 16 bit to 24 bit
  • Audio Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192kHz
  • Local Audio Support: Yes for audio insertion
  • HDCP Support: Yes
    -SupportsAMX HDCP InstaGate Pro Technology When used with an AMX Digital Media Switcher the key support is up to 16 sinks per output, independent of source device
    -When used as a single point-to-point solution the key support is defined by the source device
  • CEC Support: None
  • DDC/EDID Support: EDID in point-to-point mode is passed up from the sink Device
    -When used with Enova DGX 8/16/32/64 Digital Media Switcher the EDID is read from the switcher and presented to the source through the TX on the digital HDMI connector only (contact your Full Compass sales professional for more information)
    -The digital video input (HDMI) EDID is user reprogrammable via the switcher
    -The analog video input EDID is fixed

ANALOG VIDEO

  • Compatible Formats:
    • RGBHV
    • RGBs
    • RGsB
    • YPbPr (HDTV)
    • Y/c (S-Video)
    • C (Composite)
  • Progressive Resolution Support:  480p up to 1920x1200 @ 60 Hz including but not limited to those resolutions shown in the DXLink Twisted Pair Transmitters/Receiver Instruction Manual
  • Interlaced Resolution Support:  480i, 576i, 1080i including but not limited to those resolutions shown in the DXLink Twisted Pair Transmitters/Receiver Instruction Manual. If input is interlaced, all scaled outputs will deinterlace video to a progressive resolution format. If in scaler Bypass mode interlaced input will pass through
    -Interlace video supported into the Transmitter, progressive only supported out of the Receiver unless in scaler Bypass mode
  • Auto-Adjust Input: Supported
  • RGB Input Signal Level Range:  1 Vpp nominal
  • GB Input Impedance:  75 Ohms
  • HV Sync Input Signal Level Range:  2 to 5 Vpp
  • HV Sync Input Impedance:  2.5 pF Typ, 10 pF Max
  • Digital Processing:  24 bit, 165 MHz
  • Y/Pb/Pr Input Signal Level Range:  1.0 Vpp for Y, 700 mVpp for PbPr
  • Y/Pb/Pr Input Impedance:  75 Ohms
  • Y/c (S-Video) Input Signal Level Range:  1.0 Vpp for Y, 1.0 Vpp forc
  • Y/c (S-Video) Input Impedance:  75 Ohms
  • C (Composite) Input Signal Level Range:  1.0 Vpp
  • C (Composite) Input Impedance:  75 Ohms
  • Input Connector:  HD-15 (Breakout cable required for non RGBHV formats)

AUDIO (ANALOG & DIGITAL S/PDIF)

  • Input Signal Types:  Stereo Analog, S/PDIF
    Video signal must be present to pass Audio
  • Analog Input Level (Max):  +2 dBu, unbalanced
  • Analog Input Impedance:  10k Ohms
  • Analog to Digital Conversion:  48 kHz Sample Rate, 24-bit
  • S/PDIF Audio Format Support:
    • Dolby Digital
    • DTS
    • 2 CHL-PCM Dolby Digital and DTS support up to 48kHz, 5.1 channels
  • S/PDIF Resolution:  16 to 24 bit
  • S/PDIF Sample Rate:  32 kHz, 44.1 kHz, 48 kHz, 96kHz
  • S/PDIF Input Signal Level Range:  200 mVpp to 600 mVpp terminated
  • S/PDIF Input Impedance:  75 Ohms
  • Analog to Digital Reference Level:  +2.5 dBu =0dBfs
  • Input Connectors:
    • 3.5mm Mini-Stereo Jack (Analog Stereo)
    • RCA Jack (S/PDIF)

Note: Specifications are subject to change.
