DPA Microphones 5015A
Surround Mic Kit

OUR PART #:  5015A

The DPA 5015A is a complete DPA 4015A surround kit with five carefully factory-matched wide cardioid microphones.
Learn More

Call for price! Not available online.
List Price: $8,350.00

Similar Products

The DPA 5015A is a complete DPA 4015A surround kit with five carefully factory-matched wide cardioid microphones. Even though the standard tolerances on DPA Reference Standards are extremely low, the surround match is even closer.

The specially selected DPA 4015A microphones are matched within ±1 dB on both frequency response and sensitivity from mean of set. The maximum phase response difference is 5°.

Recording orchestras or other acoustic ensembles sometimes requires a compromise between blending in the room reverberation and a more precise localization. The natural response and dynamic range make the DPA 4015As an obvious choice for Precise tone quality and wide dynamic range make 5015A right for AB, Decca Tree or surround main arrays like the DPA Wide Cardioid Surround Array.

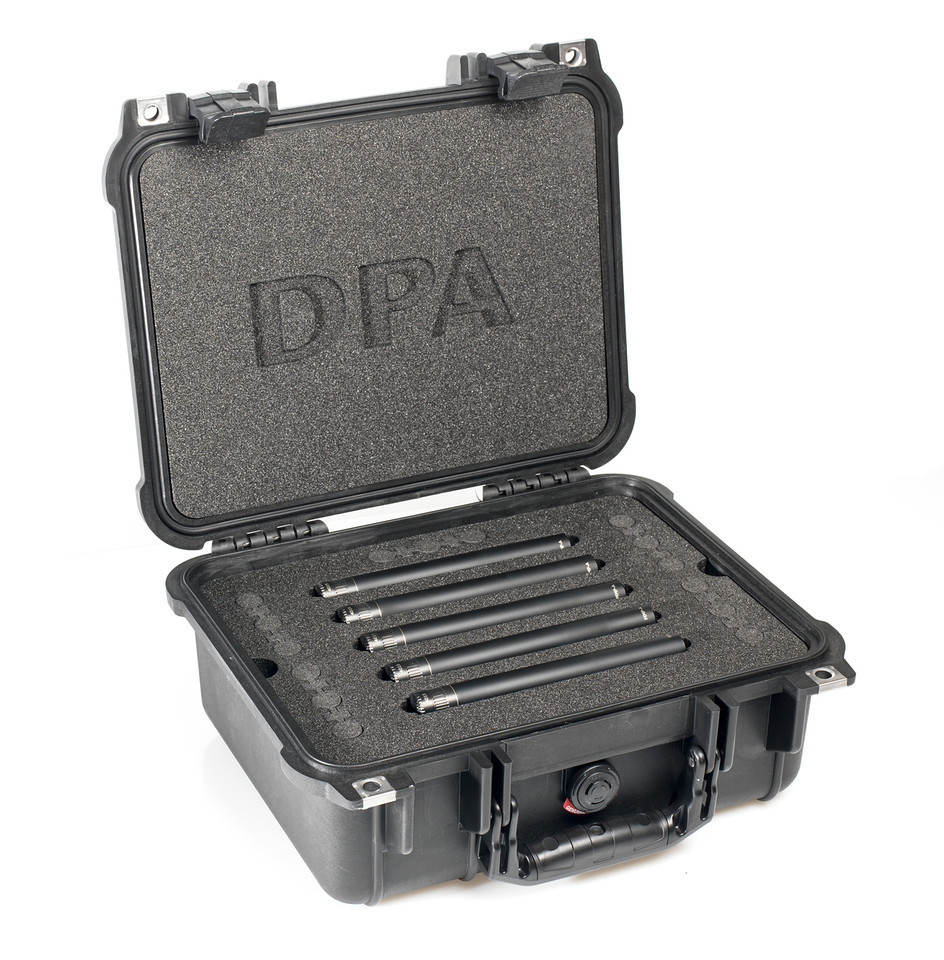

The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory inlays.

Includes: Five carefully matched microphones, sturdy PeliTM case, holders, and windscreens.

DPA 5015A Features:

  • Wide pickup area and natural sound
  • Five carefully matched microphones
  • Ambience pickup with convenient directionality
  • PeliTM Case transportation and protection

DPA 5015A Specifications:

  • Directional pattern: Wide cardioid
  • Principle of operation: Pressure gradient
  • Cartridge type: Pre-polarized condenser
  • Frequency range: 20 Hz - 20 kHz
  • Frequency range, ± 2 dB, at 60 cm: 40 Hz - 20 kHz
  • Sensitivity, nominal, ± 2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB (correct with the attenuator in 0 dB or -20 dB setting)
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 76 dB(A)
  • Total Harmonic Distortion (THD): < 1 % up to 139 dB SPL peak
  • Dynamic range: Typ. 121 dB
  • Max. SPL, peak before clipping: 159 dB
  • Switchable attenuator: 0 dB / -20 dB
  • Output impedance: < 200 ohm
  • Minimum load impedance: 2 kohm
  • Cable drive capability: 100 m (328 ft)
  • Output balance principle: Impedance balancing with Active Drive
  • Common Mode Rejection Ratio (CMRR): > 60 dB
  • Power supply (for full specifications): 48 V Phantom power (± 4 V)
  • Current consumption: 2.8 mA
  • Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • Color: Matte black
  • Weight: 158 g (5.6 oz)
  • Microphone diameter: 19 mm (0.75 in)
  • Capsule diameter: 19 mm (0.75 in)
  • Microphone length: 170 mm (6.7 in)
  • Output voltage, RMS: > 5 V
  • Polarity: +V at pin 2 for positive sound pressure
  • Temperature range: -40 °C to 45 °C (-40 °F to 113 °F)
  • Relative Humidity (RH): Up to 90%
  • Matching tolerance: ± 1 dB
  • Phase deviation for kit: < 10°
