DPA Microphones 5006-11A
Surround Mic Kit

OUR PART #:  5006-11A

The DPA 5006-11A is a complete surround kit combining three DPA 4006A and two 4011A, carefully factory-matched to achieve full precision.
Learn More

Call for price! Not available online.
List Price: $8,799.95

Similar Products

The DPA 5006-11A is a complete surround kit combining three DPA 4006A and two 4011A, carefully factory-matched to achieve full precision. Even though the standard tolerances on DPA Reference Standard Mics are extremely low, the surround match is even closer.

The specially selected DPA 4006A microphones are matched within ±0.5 dB on both frequency response and sensitivity. The maximum phase response difference is 5°. The 4011A’s are matched within ±1 dB.

The natural sound, high sensitivity, low noise-floor and extremely linear frequency response from 10 Hz to 20 kHz (±2 dB) of the microphones make the 4006As the perfect choice for all AB Stereo, Decca Tree or surround main array recordings. The precise reproduction, total transparency and natural-sounding clarity of a DPA 4006A microphone will provide you with a lifetime of satisfying listening.

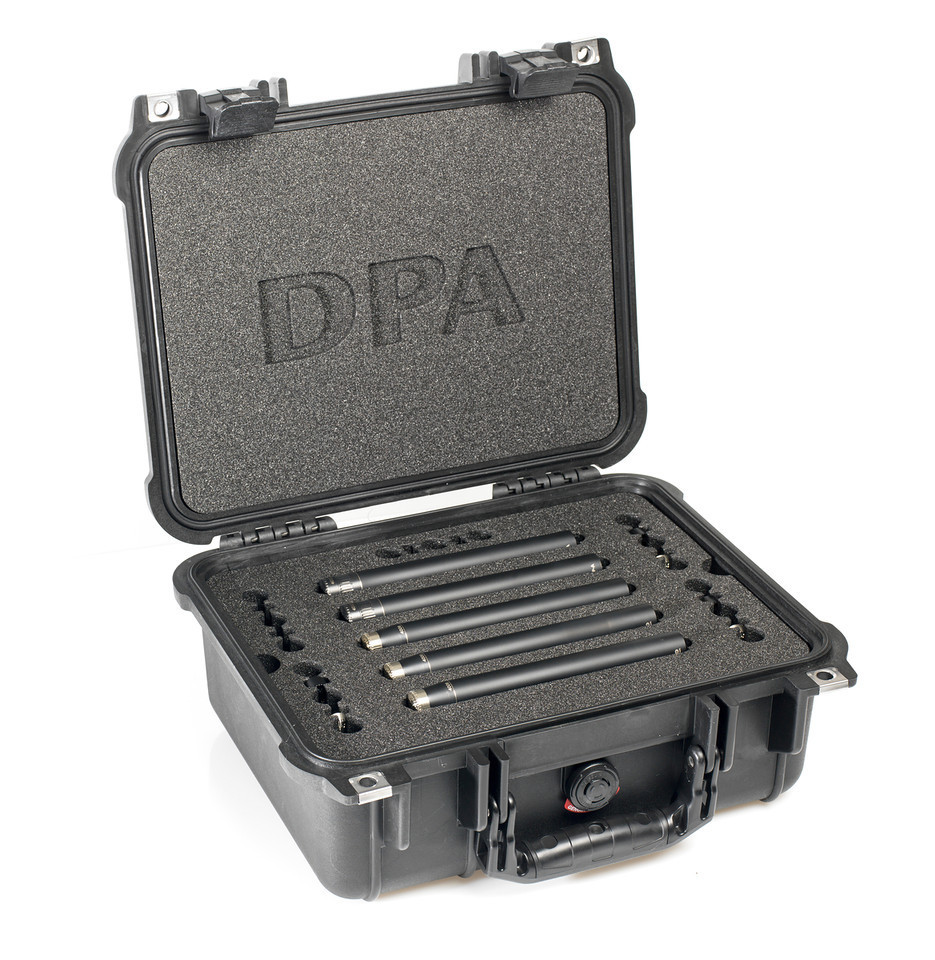

The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory inlays.

Includes: Carefully matched microphones, sturdy PeliTM case, holders, grids, and windscreens.

DPA 5006-11A Features:

  • Three + two carefully matched microphones
  • Decca Tree front + cardioids rear
  • Specially useful as orchestral main pair
  • PeliTM Case transportation and protection

DPA 5006-11A Specifications:

  • Directional characteristics:
    • 4006A: omnidirectional
    • 4011A: cardioid.
  • Principle of operation:
    • 4006A: pressure
    • 4011A: pressure gradient.
  • Cartridge type: Pre-polarized condenser
  • Frequency range: 10 Hz to 20 kHz
  • Frequency range, ± 2 dB:
    • 4006A: 10 Hz to 20 kHz
    • 4011A: 40 Hz to 20 kHz.
  • Sensitivity, nominal, ±2 dB at 250 Hz: 4006A: 40 mV/Pa; -28 dB re. 1 V/Pa
  • Sensitivity, nominal ±2 dB at 1 kHz: 4011A: 10 mV/Pa; -40 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted:
    • 4006A: Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A)).
    • 4011A: Typ. 18 dB(A) re. 20 µPa (max. 20 dB).
  • Equivalent noise level, ITU-R BS.468-4:
    • 4006A: Typ. 27 dB (max. 29 dB)
    • 4011A: Typ. 25 dB (correct with the attenuator in 0 dB or -20 dB setting).
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL:
    • 4006A: Typ. 79 dB(A)
    • 4011A: Typ. 76 dB(A).
  • Total Harmonic Distortion (THD): < 1 % up to 139 dB SPL peak
  • Minimum load impedance: 2 kohm
  • Dynamic range:
    • 4006A: Typ. 124 dB
    • 4011A: Typ. 121 dB.
  • Max. SPL, peak before clipping:
    • 4006A: 147 dB
    • 4011A: 159 dB.
  • Switchable attenuator: 0 dB / -20 dB
  • Output impedance: < 200 ohm
  • Cable drive capability: 100 m (328 ft)
  • Output balance principle: Impedance balancing with Active Drive
  • Common Mode Rejection Ratio (CMRR): > 60 dB
  • Power supply (for full specifications): 48 V Phantom power (± 4 V)
  • Current consumption: 2.8 mA
  • Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • Color: Matte black
  • Weight:
    • 4006A: 163 g (5.7 oz)
    • 4011A: 158 g (5.6 oz).
  • Diameter:
    • 4006A: 0.63 to 0.75" (16 to 19 mm )
    • 4011A: 0.75" (19 mm).
  • Capsule diameter:
    • 4006A: 0.63" (16 mm)
    • 4011A: 0.75" (19 mm)
    • Length: 6.7" (170 mm)
  • Output voltage, RMS: > 5 V
  • Polarity: +V at Pin 2 for positive sound pressure
  • Temperature range: -40 °C to 50 °C (-40 °F to 122 °F)
  • Relative Humidity (RH): Up to 90 %
  • Matching tolerance:
    • 4006A: ± 0.5 dB
    • 4011A: ± 1 dB
  • Phase deviation for kit:
    • 4006A: < 5°
    • 4011A: < 10°
