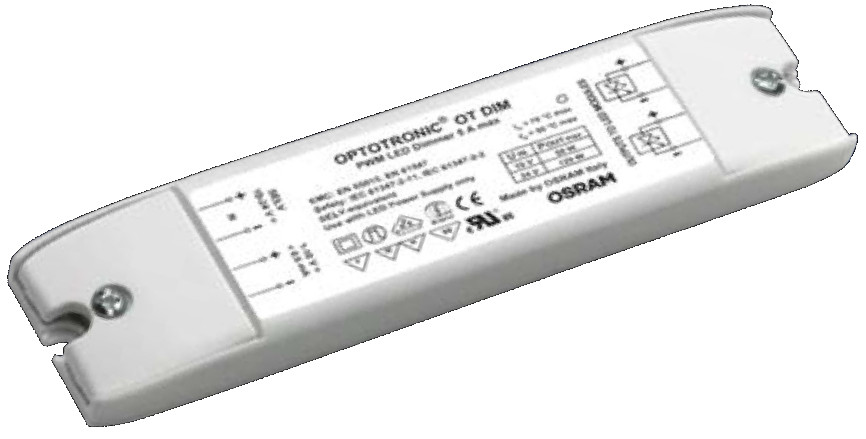

Rosco Laboratories OT DIM Module
Optotronic 0-10V OT Dim PVM LED Dimmer Module

OUR PART #  OT-DIM-MODULE

Our Price: $88.11
List Price: $90.45
(Low Price Guarantee)
In Stock

Rosco Laboratories' OT DIM Module control interface provides LED dimming by Pulse Width Modulation (PWM).  It may be controlled by 0-10V DC controllers or 0-10V converters.

The input voltage ranges from 10-24Vdc for use with most constant voltage LED power supplies.  It has two dependent channel outputs, the sum of the LED loads from which must not exceed the maximum output of the OT DIM (47W at 10V and 97W at 24V).

Rosco Laboratories OT DIM Module Features:

  • Input Voltage Range: 10-24VDC
  • Input Current: 5.3 Amps max.
  • Output Frequency: 135 Hz
  • Output Current: 5 Amps max.
  • Dimming Range: 0–100%
  • Control Voltage: 0–10 VDC, 0.6 mA max.
  • Temperature Range: -20°C through +50°C
  • Max. Case Temperature: 70°C
  • Color Mixing: Yes
  • Avoid mounting on wood.
  • At 10V the light output is maximum (100%) while at 0Vit is at a minimum (0%).
  • USE ONLY withConstant Voltage power supplies.
  • The OT DIM control module may be controlled by 0–10V DC controllers or 100K Ohm linear potentiometers.

Rosco Laboratories OT DIM Module
Optotronic 0-10V OT Dim PVM LED Dimmer Module

OUR PART #  OT-DIM-MODULE

Product Information:

Rosco Laboratories' OT DIM Module control interface provides LED dimming by Pulse Width Modulation (PWM).  It may be controlled by 0-10V DC controllers or 0-10V converters.

The input voltage ranges from 10-24Vdc for use with most constant voltage LED power supplies.  It has two dependent channel outputs, the sum of the LED loads from which must not exceed the maximum output of the OT DIM (47W at 10V and 97W at 24V).

Rosco Laboratories OT DIM Module Features:

  • Input Voltage Range: 10-24VDC
  • Input Current: 5.3 Amps max.
  • Output Frequency: 135 Hz
  • Output Current: 5 Amps max.
  • Dimming Range: 0–100%
  • Control Voltage: 0–10 VDC, 0.6 mA max.
  • Temperature Range: -20°C through +50°C
  • Max. Case Temperature: 70°C
  • Color Mixing: Yes
  • Avoid mounting on wood.
  • At 10V the light output is maximum (100%) while at 0Vit is at a minimum (0%).
  • USE ONLY withConstant Voltage power supplies.
  • The OT DIM control module may be controlled by 0–10V DC controllers or 100K Ohm linear potentiometers.
