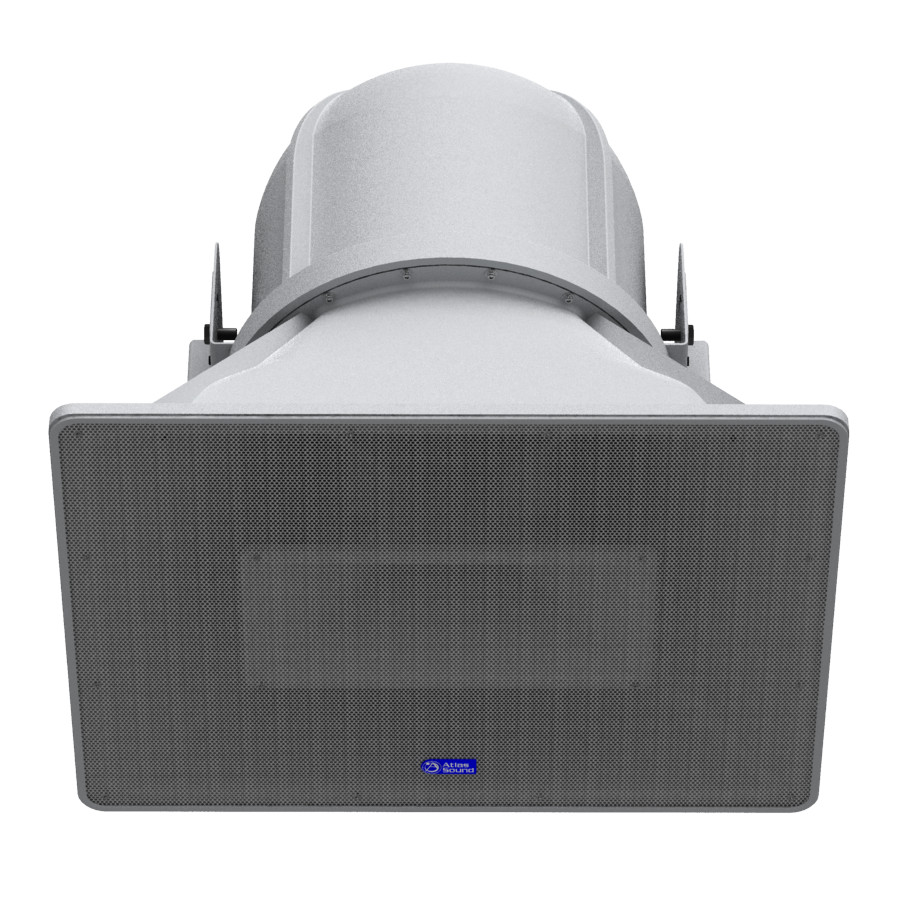

Atlas Sound AH94-15-BSG
15" 2 Way 90 x 40 Stadium Horn System

OUR PART #:  AH94-15-BSG

Atlas Sound model AH94-15-BSG "stadium horn" is ideal for directional sound distribution where full range reproduction...
Learn More
Our Price: $1,452.99
List Price: $1,816.99
Call for Special Sale Price!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound AH94-15-BSG
Qty:
In Stock
Similar Products

Atlas Sound model AH94-15-BSG "stadium horn" is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required.

Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums.

Weather resistant construction features of the AH94-15-BSG include a multiple screen configuration to prevent moisture from damaging internal components. A perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver and a third tightly perforated screen protects the 15" cast frame woofer.

A "weep" hole is included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally.

Atlas Sound AH94-15-BSG Features:

  • (3) Forged eyebolts also included for suspended installation
  • 250 Watts power handling
  • 8-ohm nominal system impedance (70.7 volt operation via optional Atlas Sound model AF140 transformer)
  • Constant Directivity design offers controlled coverage of 90° horizontal by 40° vertical (2kHz octave band)
  • Driver compliment includes 15" cast frame woofer with a concentrically mounted 1" exit compression driver coupled to a 90°H x 40°V HF horn
  • Easy, weather resistant connection via a parallel 4-pole terminal block connector
  • Efficiency rating of 104dB (1 Watt/1 Meter)
  • Full range frequency response of 80 Hz to 15 kHz (± 5dB)
  • Heavy duty stainless steel mounting bracket (included) allows for easy installation to most any flat surface
  • Maximum output of 128dB (Rated Power @ 1M)

Atlas Sound AH94-15-BSG Specifications:

  • Power Ratin: 250 Watts (53V) RMS
  • Frequency Response: 75Hz - 14.5 kHz (±5dB)
  • Driver Type:
  • LF: (1) 15" cast frame woofer
  • HF: 1" compression driver with titanium diaphragm
  • Dispersion: 90° x 40°
  • Sensitivity: 104dB SPL (70Hz to 17kHz 1/3 octave bands)
  • Impedance: 8 Ohms
  • Dimensions: 20 1/2"(H) x 30"(W) x 31"(D)
  • Weight: 100 lbs
