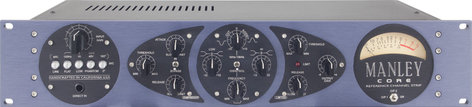

Manley Laboratories CORE
Preamp Channel Strip

OUR PART #:  CORE

The Manley CORE, an innovative channel strip that combines Manley’s Greatest Hits with fresh technology.
Learn More
Our Price: $2,000.00
List Price: $2,250.00
You save 11%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Manley Laboratories CORE
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Manley CORE, an innovative channel strip that combines Manley’s Greatest Hits with fresh technology. The remarkably intuitive front panel combines musical and forgiving circuitry that allows the musician to concentrate on his performance instead of being lost in a sea of knobs. Ease of use and intelligently chosen operating points make it virtually impossible to cut a bad sounding track!

Manley’s experience and insight working with the industry’s top recording engineers and musicians culminates in the CORE. At this price, there is no other channel-strip with higher headroom or more seductive sound than the CORE. Handcrafted in the USA, built like a tank, built to endure, the epicenter of your recorded art will be the Manley CORE.

MIC / LINE PREAMPLIFIER
The signal enters through Manley's r renowned handwound MANLEY IRON® input transformer with nickel laminations in a mu-metal can. The tube amplifying stage is the latest implementation of Manley's famous Class A circuit topology found in the VOXBOX® and Manley Dual Mono & Mono Microphone Preamplifiers. This all-triode vacuum tube circuit runs on a regulated 300 Volt B+ supply yielding huge headroom and relentless output drive capability.

Manley Laboratories CORE Features and Specifications:

  • 48V Phantom power switch
  • 120Hz High Pass Filter switch
  • Phase Invert switch
  • Input Attenuator (Variable Pad)
  • Mic Pre Selectable Gain 40dB or 60dB (TotalGain >70dB)
  • Line Amp Selectable Gain 20dB or 40dB
  • 1/4" Direct Input
    • Similar to the DI in the Manley SLAM!®, this all-discrete solid-state circuit with 10 Meg Ohm input impedance is perfect for guitars, bass, keyboards, etc.
  • Compressor
    • Featuring the successful ELOP® technology also found in the famous Manley VOXBOX®
    • Compressor is uniquely before the Mic Preamp making it virtually impossible to clip
    • Ratio 3:1
    • Continuously variable Attack, Release, and Threshold controls
    • Silent Bypass switch
  • Equalizer
    • Low and High Baxandall Shelves (80Hz and 12kHz) with ± 12dB range
    • Sweepable Midrange Bell EQ (100Hz – 1kHz) or (1kHz – 10kHz) with ±10dB range
  • Limiter
    • Fast attack FET “brickwall” limiter
    • Continuously Variable Threshold and Release controls
    • Peak Limit LED indicator
    • 10dB range output gain control
  • Meter
    • Large illuminated analog display
    • 3-way meter-select switch shows Compressor Gain Reduction, Micpre Output Level, and Main Output audio levels.
  • Inputs and Outputs
    • Balanced XLR Mic Input
    • Balanced XLR Line Input
    • Front Panel Direct Instrument 1/4" Input
    • Insert point between Mic Preamp and EQ/Limiter via 1/4" TRS jack
    • Balanced XLR Direct Output (after Preamp/Compressor section)
    • Balanced XLR Main Output
    • Deluxe CNC-machined 1/4" thick faceplate with inlaid laser-engraved inserts adorn the rigid 2U steel chassis – all locally sourced in Southern California.
