Elite Core EC-PMA Personal Headphone Amplifier

OUR PART #: EC-PMA MFR #: EC-PMA

Copied to clipboard

The Elite Core PMA is a high-powered stereo or mix-mono personal monitor headphone amp designed to provide loud and clear monitoring through headphones or earphones. ...Read more

Elite Core EC-PMA Personal Headphone Amplifier Image 1
Elite Core EC-PMA Personal Headphone Amplifier Image 2
Elite Core EC-PMA Personal Headphone Amplifier Image 3
Elite Core EC-PMA Personal Headphone Amplifier
Our Price: $125.99

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$4/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

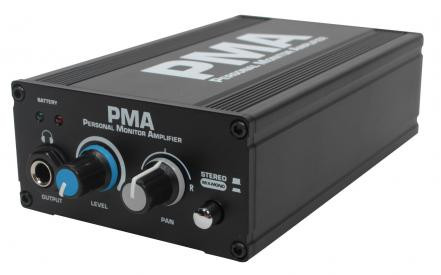

The Elite Core PMA is a high-powered stereo or mix-mono personal monitor headphone amp designed to provide loud and clear monitoring through headphones or earphones. Signals from AUX outs are connected to the inputs of the PMA via combo XLR/TRS jacks. Headphones or earphones are powered by a strong 50mW per channel amplifier. The PMA can be conveniently mounted onto standard mic stand threads. Powered by the included 9V adapter, or by a 9V battery.

Elite Core Audio PMA Features:

  • 2 Direct Symmetric Combo XLR/TRS Inputs
  • Stereo or Mix-Mono Mode Selection
  • Level & Pan Controls
  • Sturdy Aluminum Case
  • 5/8" - 27 internal threads on bottom - suitable for mounting on standard microphone stand or SA001 stand adapter
  • Operates with 9V Battery or included AC/DC adapter

Elite Core Audio PMA Specifications:

  • Input Jacks: 2 x Combo XLR/TRS
  • Output Jack: 1/4" Stereo
  • Frequency Response: 30Hz-20kHz ±2dB
  • Min Headphone Impedance: 16 ohms per side
  • Input Impedance: 15 Kohm
  • Nominal Input Level: 0dBV
  • Maximum Input Level: +4dBV
  • Limit Input Level: +5dB
  • Maximum Output Power (into 20ohm): 50mW per channel
  • Maximum Operating Current: 40mA
  • Power Supply: 9V Battery
  • DC Input Socket: DC 9V (PIN - / RING +)
  • Dimensions: 6.69" x 3.66" x 1.85"
  • Net Weight: 0.88 lbs
