Ace Backstage Co. ISO24BAC
Isolated Back Access Cover for Double Wide Stage Pockets

OUR PART #:  ISO24BAC

The #22BAC, #23BAC and #24BAC are closures for the back access opening on the ACE Full Pockets, Half Pockets, and Double Wide Pockets, respectively.
Learn More
Our Price: $74.30
List Price: $93.37
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ace Backstage Co. ISO24BAC
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The #22BAC, #23BAC and #24BAC are closures for the back access opening on the ACE Full Pockets, Half Pockets, and Double Wide Pockets, respectively. The BAC provides 1/2” and 3/4” combination conduit knock-outs for easy conduit terminations. Use the BAC with Half, Full, or Double Wide Pocket installations requiring wiring closure (larger ACE #BBX Series Back Boxes, #PE, and, #FP3E Electric Panels cannot be used with the BAC). The BAC is easy to install onto the Half, Full, or Double Wide Pocket body and permits many options in a typical installation sequence.

The BAC is precision formed to slide onto the back access opening of the pocket body. During rough-in the BAC may be connected to the combination knock outs, 1/2” or 3/4”, with flex conduit and temporarily left tacked to the floor joist approximately where the pocket is to be installed. All wire can then be pulled and low voltage terminations to various connectors completed and ready for final installation into the pocket. The BAC is smaller than the cutout in the stage floor and can easily be pulled through the cutout for assembly to the pocket body. Two self-tapping sheet metal attachment screws are provided.

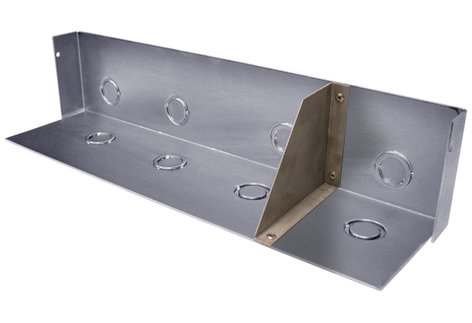

#ISO22BAC and #ISO24BAC closures come with a galvaneal isolation bracket installed to support separation between high and low voltage in ACE Stage Pockets. The pocket assembly can then be dropped into the stage cutout and all the panel/plate sub-assemblies finally installed. The BAC provides a closure for the open back access architecture of the Double, Full and Half Pockets while maintaining the benefits of easy installation. The sequence of installation can be varied such that all terminations are completed early in the job. At final installation simply screw the parts together and screw the pocket into floor. Or wait until the final install phase and do all the terminations, assembly and pocket body installation.

Ace Backstage ISO24BAC Includes:

  • (1) #BAC Back Access Cover
  • (2) Self Tapping Screws

Ace Backstage ISO24BAC Features:

  • SIMPLE CLOSURE: The simple device closes the back access opening on ACE Half, Full, and Double Wide Pockets easily.
  • FLEXIBILITY: Provides 1/2" and 3/4" combination conduit knock-outs for easy conduit terminations.
  • EASY ORDERING: Available pre-installed in ACE Stage Pockets or individually for retrofitting into existing Stage Pocket installations.
  • DURABLE CONSTRUCTION: Precision die formed to exactly match the back access openings of ACE Stage Pocket bodies.
  • TIMELY ASSEMBLY: The sequence of installation can be varied such that all terminations are completed early in the job or wait until the final install phase and complete all the terminations, assembly, and pocket body installation.
  • DURABLE FINISH: Clear zinc corrosion resistant finish
  • BACK ACCESS COVER MATERIALS: 14 gauge Sheet Steel CRS (.071 Thick)
