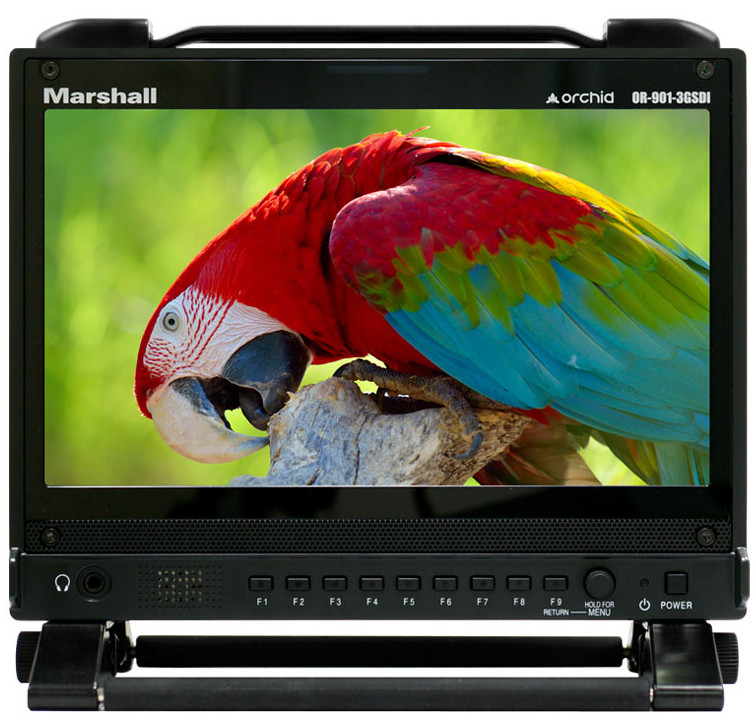

Marshall Electronics OR-901-3GSDI
9" Orchid LCD Field Monitor with Dual 3G-SDI Outputs

OUR PART #:  OR-901-3GSDI

Marshall Electronics' OR-901-3GSDI 9" ORCHID® rack mountable / portable field monitor has 9 user-assignable function keys as well as a rotary menu system.
Learn More
Our Price: $3,346.25
List Price: $3,937.00
You save 15%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics OR-901-3GSDI
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Marshall Electronics' OR-901-3GSDI 9" ORCHID® rack mountable / portable field monitor has 9 user-assignable function keys as well as a rotary menu system. The ORCHID series includes a variety of 3D production tools and Anaglyph views. The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in three different aspect ratios including Full Screen. The built-in Vectorscope displays in full color and can also be displayed in three different ratios. The Vectorscope has adjustable gain from 1x to 5x. The OR-901-3GSDI will de-embed and display up to 16 channels of audio and allow the user to monitor any two channels at once through the headphone jack or rear line output jack. Also includes built-in front panel speaker and rear panel stereo input for audio monitoring. The 64-segment tri-color bar graph meters have user-adjustable reference levels. The OR-901-3GSDI comes standard with auto-sensing 3G-SDI inputs and re-clocked output. This unit can be used in a rack, on a desktop, in the field, or mounted to a camera. The G-Marker displays a grid that corresponds to the horizon to help accurately level the camera and monitor.

3D PRODUCTION TOOLS: The ORCHID series now includes 3D production tools including four Anaglyph 3D modes as well as five 3D analytic views. In order to make use of this feature, the source can be formatted as a single Side-by-Side Half Horizontal input.

ORCHID® OR-901-3GSDI Features:

  • Real-Time Waveform Monitor
  • Adjustable Clipping Indicator
  • Real-Time Color Vectorscope
  • Five 3D Production Views
  • Four Anaglyph 3D Displays
  • Auto White Balance Calibration
  • Sixteen 64-segment Tri-color Audio Meters
  • On-Screen Time Code
  • 7 assignable GPI inputs
  • Adjustable Color Temperature
  • Precision Gamma Settings
  • Adjustable Color Temperature
  • False Color Mapping with two modes
  • HistogramAuto-Sensing Rear Unbalanced Stereo Output
  • Auto-Sensing Front Panel Headphone Jack
  • Built-in Front Panel Speaker
  • Auto-Sensing Rear Unbalanced Stereo Output
  • Audio Log Graph
  • Audio Phase Display
  • Variety of Safety Markers
  • Adjustable User Marker
  • Tri-Color Tally Indicator
  • Large "On Air" Tally for Talent
  • 3G-SDI inputs with re-clocked output
  • Supports 3 different Battery Adapters
  • Adjustable / Detachable Stand with top handle
  • User Replaceable Protective Screen

ORCHID® OR-901-3GSDI Specifications:

  • Display (Viewing Area):  9"
  • Resolution:  960 x 540
  • Aspect Ratio:  16:9
  • Brightness (in cd/m²):  350
  • Contrast Ratio:  1000:1
  • Available Input Types:  3G-SDI x 2
  • Available Audio Output (per screen):  2 Stereo (3.5mm - Front and Rear)
  • Power Consumption:  18W (1.5A)
  • Power Supply:  DC 12V 4-Pin XLR
  • Weight:  Approx. 4 lbs. (4.6 lbs. with Power Adapter)
  • Dimensions:  8.72"W x 7.21"H x 1.78"D
  • Available Battery Adapter Configurations:  "AB" - (Anton/Bauer) / "VM" - (V-Mount) / "SB" - (Sony B series)
