Lowell LWR-723
7U 23" Wall Mount Rack

OUR PART #:  LWR-723

The E.I.A.
Learn More
Our Price: $412.40
List Price: $629.76
You save 35%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lowell LWR-723
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

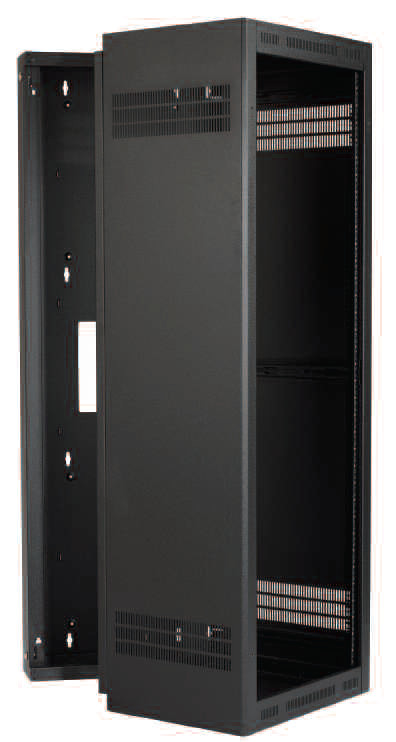

The E.I.A. compliant, UL Listed (Standard 1678) sectional wall-mount rack consists of a sturdy steel backbox and mounting section that are boxed separately for convenience—the backbox can be fieldinstalled while the mounting section is loaded with equipment at the shop.
Made in U.S.A. with 100% certified U.S. steel. Includes PilotPointTM screws with 5.1 hardness and captive washers (order RSP series for extra hardware).

Lowell Mfg. LWR-723 Features:

  • Mounting Section: The mounting section provides greater than 90-degree open-swing access for servicing and requires a minimum clearance of 17.06 in. [433mm], plus 1 in. [25mm] if optional front door is used. It mounts to the backbox from the inside using two heavy duty, springloaded L-pins, providing fast, secure installation without externally visible hinges. The stability of the L-pin design combined with the section’s fully gusseted corners and triple formed side-to-bottom, side-to-top wrap design achieve strength equivalent to 3/16 in. [5mm] thick steel for dependable support. A roller-closure allows the mounting section to seat in closed position without mandatory locking. Includes one-pair of adjustable rails (tapped 10-32) recessed 0.625 in. [16mm] to allow 1.375 in. [35mm] space between equipment knobs and (optional) front door. Integral top and bottom rails on E.I.A. spacing for mounting or lacing are also included. Vented sides have notches to accommodate optional fan kit (ex. FW1-KIT). Four knockouts for wireless antennae on top and bottom.
    • Note: LWR series racks at this depth have beveled corners.
  • Backbox: The 5.80 in. [147mm] box has 16 in. [406mm] mounting centers, a 10 in. x10 in. [254mm x 254mm] opening to mount over electrical pull boxes, and embossed dimples on the back plane for installation of board-mounted accessories. It features removable knockout panels at top and bottom and two keyed locks on one side (keyed differently than optional front door).
