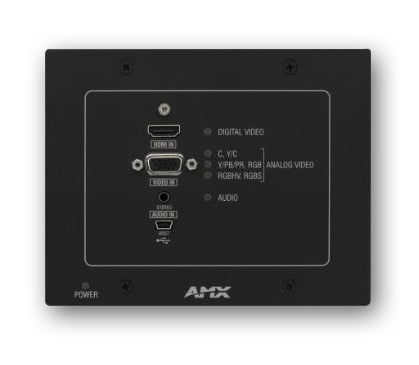

AMX FG1010-320-BL
DXLink Multi-Format Wallplate Transmitter in Black

OUR PART #:  FG1010-320-BL

AMX's DXLink Multi-Format Wallplate Transmitter sends analog or digital video including HDMI/HDCP...
Learn More
Our Price: $783.14
List Price: $1,100.00
You save 29%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

AMX FG1010-320-BL
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

AMX's DXLink Multi-Format Wallplate Transmitter sends analog or digital video including HDMI/HDCP, along with embedded audio or supplemental analog audio up to 100 meters to an Enova DGX Digital Media Switcher, compatible Enova DVX All-In-One Presentation Switcher, or directly to a DXLink Receiver. It receives Power over DXLink* from the Enova DGX, Enova DVX (3155HD, 3156HD or 2155HD), PS-POE-AT-TC High Power PoE Injector or PDXL-2 Dual Power over DXLink Controller over the twisted pair cable and features both a multi-format analog port to support legacy devices and an HDMI port to support newer digital devices.

AMX FG1010-320-BL common applications: Mount the DXLink Multi-Format Wallplate Transmitter in the wall or lectern to connect guest equipment and send audio and video signals across the room, on the other side of the house or in a classroom down the hall. Since it is powered remotely, the wallplate can be installed virtually anywhere.

AMX FG1010-320-BL Features:

  • Only One Cable Send audio and video, while passing Ethernet signals and power over one twisted pair cable
  • Multi-Format Analog Port and HDMI Port Supports legacy analog signals - RGBHV, Component, S-Video, and Composite, and digital HDMI/HDCP, Display Port++ and DVI signals
  • Send HDMI signals up to 100 meters – Extend the reach of the HDMI signals far beyond the capabilities of typical HDMI cabling
  • Standard Twisted Pair Cable – Save time and effort in installation by leveraging cost effective twisted pair cable, see the white paper titled Cabling for Success with DXLink for more details
  • Power over DXLink* Enabled – Designed for use with Enova DGX or DVX systems with DXLink inputs, PS-POE-AT-TC (FG423-84) or PDXL-2(FG1090-170) to provide remotely located Power over DXLink (requires firmware v1.2.40 or above)
  • DXLink Direct Connection – When receiving Power over DXLink* from the PS-POE-AT-TC or PDXL-2, DXLink Wallplates can be connected directly to a DXLink Receiver for a point-to-point solution
  • Power Remotely - Power over DXLink* is carried over twisted pair to simplify installation when used with the Enova DGX, Enova DVX,PS-POE-AT-TC or PDXL-2
  • 3D Support - Pass through latest video formats including 3D and Deep Color
  • Surround Sound Support - Pass through high definition surround sound including Dolby Digital, DTS and up to 8-channel L-PCM at 32kHz, 44.1 kHz, 48 kHz, 96 kHz, 192kHz
  • HDCP Compliant

* Power must be supplied by one of the following DXLink Power sourcing devices: Enova DGX 8/16/32/64 Digital Media Switcher (with a DXLink Twisted Pair Input Board installed), Compatible Enova DVX All-In-One Presentation Switcher (3155HD, 3156HD or 2155HD), PS-POE-AT-TC High Power PoE Injector or PDXL-2 Power over DXLink Controller. AMX only supports the use of these approved Power over DXLink solutions. Other third party power supplies or non-compatible standard PoE solutions may damage the DXLink equipment.

AMX FG-1010320-BL Specifications:

GENERAL

  • Dimensions (HWD):  4-11/16" x 6" x 1-5/16"(11.90 cm x 15.20 cm x 3.33 cm)
  • Installation:  Mounts onto standard 2 gang US, UK or EU back boxes
  • Weight: 1.4 lb (0.64 kg)
  • Shipping Weight: Approx. 2.2 lb (1.0 kg)
  • Compatible AMX Products:
    • Enova DGX 8/16/32/64 Digital Media Switchers
    • Enova DVX-3155HD, DVX-2156HD and DVX-2155HDAll-In-One Presentation Switcher
    • AVB-RX-DXLINK-HDMI DXLink HDMI Receiver Module as a point-to-point solution (when Wallplates are powered by PS-POE-AT-TC orPDXL-2)
    • PS-POE-AT-TC High Power PoE Injector
    • PDXL-2 Power over DXLink Controller
  • Airflow: Natural convection via air vent openings on front, back and top
  • MTBF: 381,000 hours
  • Approvals:
    • CE EN 55022, EN 55024 and EN 60950-1
    • IEC 60950-1
    • FCC
    • UL 60950-1
    • cUL
    • RoHS/ WEEE compliant

DXLink

  • Transport Layer Throughput (Max): 10.2 Gbps
  • Twisted Pair Cable Type: Shielded Cat6, Cat6A and Cat7

DXLink twisted pair cable runs for DXLink equipment shall only be run within a common building where a common building is defined as: the walls of the structure(s) are physically connected and the structure(s) share a single ground reference

For more details and helpful cabling information, reference the white paper titled Cabling for Success with DXLink, or contact your AMX representative

  • Twisted Pair Cable Length: Up to 328 ft (100 m)

ACTIVE POWER REQUIREMENTS
DXLink Power:

  • Power must be supplied by a DXLink Power sourcing device such as:
    • Enova DGX 8/16/32/64 Digital Media Switcher (with a DXLink Twisted Pair Input Board installed)
    • Compatible Enova DVX All-In-One Presentation Switcher (3155HD, 3156HD or 2155HD)
    • PS-POE-AT-TC High Power PoE Injector
    • PDXL-2 Power over DXLink Controller

When installed in conjunction with an Enova DGX use the Enova DGX Configuration Tool located at AMX.com/enova to determine the power requirements of the configuration

AMX only supports the use of these approved Power over DXLink solutions. Other third party power supplies or non-compatible standard PoE solutions may damage the DXLink equipment. To use PS-POE-AT-TC orPDXL-2 as a power source the wallplates require firmware v1.2.40 or above

  • Power Connector: Included on DXLink Connection
  • Power Consumption (Max): Power over DXLink Supplied 7 W

POWER SUPPLY
External, Required:

  • Power must be supplied by a DXLink Power sourcing device such as:
    • Enova DGX 8/16/32/64 Digital Media Switcher (with a DXLink Twisted Pair Input Board installed)
    • Compatible Enova DVX All-In-One Presentation Switcher (DVX-3155HD, DVX-3156HD or DVX-2155HD)
    • PS-POE-AT-TC High Power PoE Injector
    • PDXL-2 Power over DXLink Controller

AMX only supports the use of these approved Power over DXLink solutions. Other third party power supplies or non-compatible standard PoE solutions may damage the DXLink equipment. To use PS-POE-AT-TC or PDXL-2 as a power source the wall plates require firmware v1.2.40 or above

ENVIRONMENTAL

  • Temperature (Operating): 32° to 104° F (0° to 40° C)
  • Temperature (Storage): -22° to 158° F (-30° to 70° C)
  • Humidity (Operating): 5% to 85% RH (non-condensing)
  • Humidity (Storage): 0% to 90% RH (non-condensing)
  • Heat Dissipation (Max): Power over DXLink supplied: 24 BTU/HR

FRONT CONNECTORS

  • HDMI Input: HDMI Type A Female
  • Analog Video Input: HD-15 (Breakout cable required for non RGB formats)
  • Analog Stereo Input: 3.5mm Mini-Stereo Jack
  • Advanced Configuration Interface**: USB Mini-B Connector
  • USB (HID) Keyboard & Mouse**: USB Mini-B Connector

**This feature will be available upon release of a future firmware update

SIDE CONNECTORS

  • ID Pushbutton:
    • Toggle between DHCP and static IP addressing
    • Places system in NetLinx Device ID assignment mode
    • Reset the factory default settings
    • Restore the factory firmware image
  • Reset Pushbutton: Resets/reboots the CPU of the wallplate

BACK CONNECTORS

  • DXLink Output: RJ-45

CONTROL

  • Advanced Configuration Interface**: USB Mini-B Connector

**This feature will be available upon release of a future firmware update

INDICATORS

  • Power Indicator: Green indicates whether or not the module is powered on

HDMI

  • Compatible Formats: HDMI, HDCP, DVI
  • Input Signal Type:
    • HDMI
    • DVI-D (Single Link With Cable Adapter)
    • Display Port ++ (Input Only, With HDMI Cable Adapter)
  • Input Connector: HDMI Type A Female
  • Propagation Delay (Typ): 5 us
  • Input Voltage (Nominal): 1.0 Vpp Differential
  • Input Re-clocking (CDR): Yes
  • Input Equalization: Yes, Adaptive
  • Data Rate (Max): 4.95 Gbps / 6.75 Gbps
    • 6.75 Gbps supported when the DXLink HDMI RX Scaler is in Bypass mode and format is 1080p60 or less
  • Pixel Clock (Max): 165 MHz / 225 MHz
    • 225 MHz supported when the DXLink HDMI RX Scaler is in Bypass mode and format is 1080p60 or less
  • Progressive Resolution Support: 480p up to 1920x1200 @60 Hz including but not limited to those resolutions shown in the DXLink Twisted Pair Transmitters/Receiver Instruction Manual
  • Interlaced Resolution Support:
    480i, 576i, 1080i including but not limited to those resolutions shown in the DXLink Twisted Pair Transmitters/Receiver Instruction Manual. If input is interlaced, all scaled outputs will deinterlace video to a progressive resolution format. If in scaler Bypass mode interlaced input will pass through
  • Deep Color Support: 24-bit, 30-bit, 36-bit
    • 30-bit, 36-bit supported when the DXLink HDMI RX Scaler is in Bypass mode and format is 1080p60 or less
  • Color Space Support: RGB 4:4:4, YCbCr 4:4:4 and 4:2:2(Input signal support for YCbCr 4:4:4 and 4:2:2,output color-space is converted to RGB 4:4:4)
  • 3D Format Support: Yes (HDMI Primary Formats)
    • Frame Packing 1080p up to 24Hz
    • Frame Packing 720p up to 50/60Hz
    • Frame Packing 1080i up to 50/60Hz
    • Top-Bottom 1080p up to 24Hz
    • Top-Bottom 720p up to 50/60Hz
    • Side-by-Side Half 1080p up to 50/60Hz
    • Side-by-Side Half 720p up to 50/60Hz
    • 3D supported when the DXLink HDMI Rx Scaler is in Bypass mode and format is 1080p60 or less
  • Audio Format Support: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM Dolby Digital and DTS support up to 48kHz, 5.1 channels
  • Audio Resolution: 16 bit to 24 bit
  • Audio Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz,192kHz
  • Local Audio Support: Yes for audio insertion
  • HDCP Support: Yes, supports AMX HDCP InstaGate ProTechnology when used with either an Enova DGX8/16/32 Digital Media Switcher orDVX All-In-One Presentation Switcher the key support is up to 16 sinks per output, independent of source device when used as a single point to point solution the key support is defined by the source device
  • CEC Support: None
  • DDC/EDID Support: The HDMI EDID in point to point mode is passed up from the sink device. When used with Enova DGX 8/16/32/64 Digital Media Switcher orEnova DVX-3155HD, DVX-3156HD or DVX-2155HD the HDMIEDID is passed from the Enova Switcher input to the TX and is user reprogrammable. The analog video input connection provides a fixed EDID set

ANALOG VIDEO

  • Compatible Formats: RGBHV, RGBs, RGsB; YPbPr (HDTV);Y/c (S-Video), C (Composite)
  • Progressive Resolution Support: 480p up to 1920x1200@ 60 Hz (reference the DXLink Twisted Pair Transmitters/Receiver Instruction Manual for extended list)
  • Interlaced Resolution Support: 480i, 576i, 1080i (reference DXLink Twisted Pair Transmitters/Receiver Instruction Manual for extended list)
    If input is interlaced, all scaled outputs will deinterlace video to a progressive resolution format. If in scaler Bypass mode interlaced input will pass through unaltered
  • Auto-Adjust Input**: Supported
  • RGB Input Signal Level Range: 1 Vpp nominal
  • RGB Input Impedance: 75 ohms
  • HV Sync Input Signal Level Range: 2 to 5 Vpp
  • HV Sync Input Impedance: 2.5 pF Typ, 10 pF Max
  • Digital Processing: 24 bit, 165 MHz
  • Y/Pb/Pr Input Signal Level Range: 1.0 Vpp for Y, 700mVpp for Pb Pr
  • Y/Pb/Pr Input Impedance: 75 ohms
  • Y/c (S-Video) Input Signal Level Range: 1.0 Vpp forY, 1.0 Vpp for c
  • Y/c (S-Video) Input Impedance: 75 ohms
  • C (Composite) Input Signal Level Range: 1.0 Vpp
  • C (Composite) Input Impedance: 75 ohms
  • Input Connector: HD-15 (Breakout cable required for non RGBHV formats)

AUDIO (ANALOG & DIGITAL S/PDIF)

  • Input Signal Types: Stereo Analog, S/PDIF
    • Video signal must be present to pass Audio
  • Analog Input Level (Max): +2 dBu, unbalanced
  • Analog Input Impedance: 10k ohms
  • Analog to Digital Conversion: 48 kHz Sample Rate,24-bit
  • S/PDIF Audio Format Support: Dolby Digital, DTS, 2 CHL-PCM; Dolby Digital and DTS support up to 48kHz, 5.1 channels
  • S/PDIF Resolution: 16 to 24 bit
  • S/PDIF Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz
  • S/PDIF Input Signal Level Range: 200 mVpp to 600mVpp terminated
  • S/PDIF Input Impedance: 75 ohms
  • Analog to Digital Reference Level: +2.5 dBu = 0 dBfs
  • Input Connectors: 3.5mm Mini-Stereo Jack (Analog Stereo), RCA Jack (S/PDIF)

** This feature will be available upon release of a future firmware update

Note: Specifications are subject to change.
