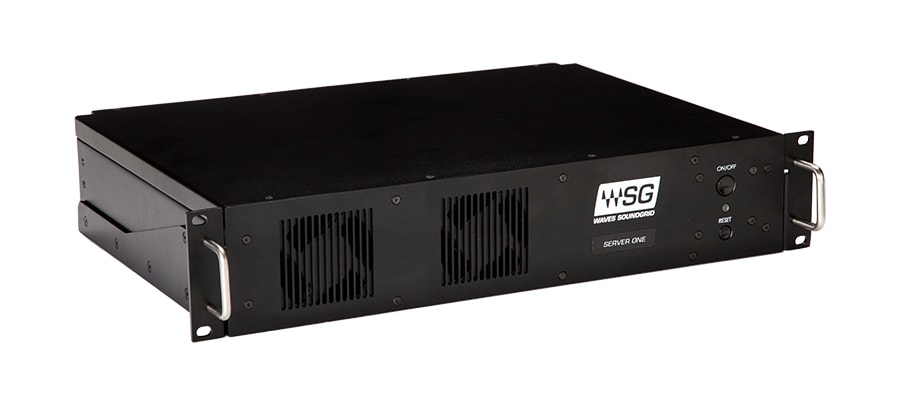

Waves WSGS
SoundGrid Server One Version 3

OUR PART #  WSGS

Our Price: $1,400.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Ideal for venues of any size, Waves Server One for SoundGrid® systems is a rackmount unit which packs a whopping 4 GB of RAM plugin processing power.

Note: Waves MultiRack software must be purchased separately.

Waves WSGS Features:

  • Newer generation Intel processors
  • EtherCon connector on back
  • LED on Front-Panel
  • Adds serious processing power to your system
  • Super-low latency: as low as 0.8 milliseconds at 44.1, 48 kHz, 88.2 and 96kHz
  • 8 GB RAM
  • CPU: Intel® Skylake i5
  • Motherboard: Gigabyte GA-B150N-GSM
  • LAN Card: Intel on-Board
  • Minimal fan noise: fan speed auto-adjusts based on CPU temperature
  • Rugged Neutrik Ethercon connectors
  • LED status indicator for easy identification of the server
  • 6-month warranty
  • Use with any SoundGrid I/O interface (including DiGiGrid I/Os)
  • Use with non-SoundGrid I/Os (ASIO/Core Audio) via SoundGrid Connect: See complete instructions

Waves WSGS Specifications:

  • System Requirements
    • RAM: 4GB
    • Motherboard: Gigabyte GA-H61N-USB3
    • LAN Card: Intel PT Server PRO
    • 6 month warranty
  • Server Benchmarks (The benchmarks below are for general reference, and illustrate how many plugin Racks and plugins can be run on this particular server. The following plugins were used for these tests: C4, SSL E-Channel, H-Delay, and TrueVerb. Each Rack was fully loaded with a specific plugin until maximum load was reached. WSG-Y16 cards were used as audio interfaces in these tests.):
    • Sample Rate
      • Test 1: 48kHz
      • Test 2: 96kHz
    • Latency (roundtrip total):
      • Test 1:  40* samples / 0.83 ms
      • Test 2: 80* samples / 0.83ms
    • SSL Channel Mono:
      • Test 1: 256 instances
      • Test 2: 128 instances
    • H-Delay Mono:
      • Test 1: 244 instances
      • Test 2: 128 instances
    • TrueVerb Mono:
      • Test 1: 160 instances
      • Test 2: 64 instances
    • C4 Mono:
      • Test 1: 256 instances
      • Test 2: 128 instances

Waves WSGS
SoundGrid Server One Version 3

OUR PART #  WSGS

Product Information:

Ideal for venues of any size, Waves Server One for SoundGrid® systems is a rackmount unit which packs a whopping 4 GB of RAM plugin processing power.

Note: Waves MultiRack software must be purchased separately.

Waves WSGS Features:

  • Newer generation Intel processors
  • EtherCon connector on back
  • LED on Front-Panel
  • Adds serious processing power to your system
  • Super-low latency: as low as 0.8 milliseconds at 44.1, 48 kHz, 88.2 and 96kHz
  • 8 GB RAM
  • CPU: Intel® Skylake i5
  • Motherboard: Gigabyte GA-B150N-GSM
  • LAN Card: Intel on-Board
  • Minimal fan noise: fan speed auto-adjusts based on CPU temperature
  • Rugged Neutrik Ethercon connectors
  • LED status indicator for easy identification of the server
  • 6-month warranty
  • Use with any SoundGrid I/O interface (including DiGiGrid I/Os)
  • Use with non-SoundGrid I/Os (ASIO/Core Audio) via SoundGrid Connect: See complete instructions

Waves WSGS Specifications:

  • System Requirements
    • RAM: 4GB
    • Motherboard: Gigabyte GA-H61N-USB3
    • LAN Card: Intel PT Server PRO
    • 6 month warranty
  • Server Benchmarks (The benchmarks below are for general reference, and illustrate how many plugin Racks and plugins can be run on this particular server. The following plugins were used for these tests: C4, SSL E-Channel, H-Delay, and TrueVerb. Each Rack was fully loaded with a specific plugin until maximum load was reached. WSG-Y16 cards were used as audio interfaces in these tests.):
    • Sample Rate
      • Test 1: 48kHz
      • Test 2: 96kHz
    • Latency (roundtrip total):
      • Test 1:  40* samples / 0.83 ms
      • Test 2: 80* samples / 0.83ms
    • SSL Channel Mono:
      • Test 1: 256 instances
      • Test 2: 128 instances
    • H-Delay Mono:
      • Test 1: 244 instances
      • Test 2: 128 instances
    • TrueVerb Mono:
      • Test 1: 160 instances
      • Test 2: 64 instances
    • C4 Mono:
      • Test 1: 256 instances
      • Test 2: 128 instances
